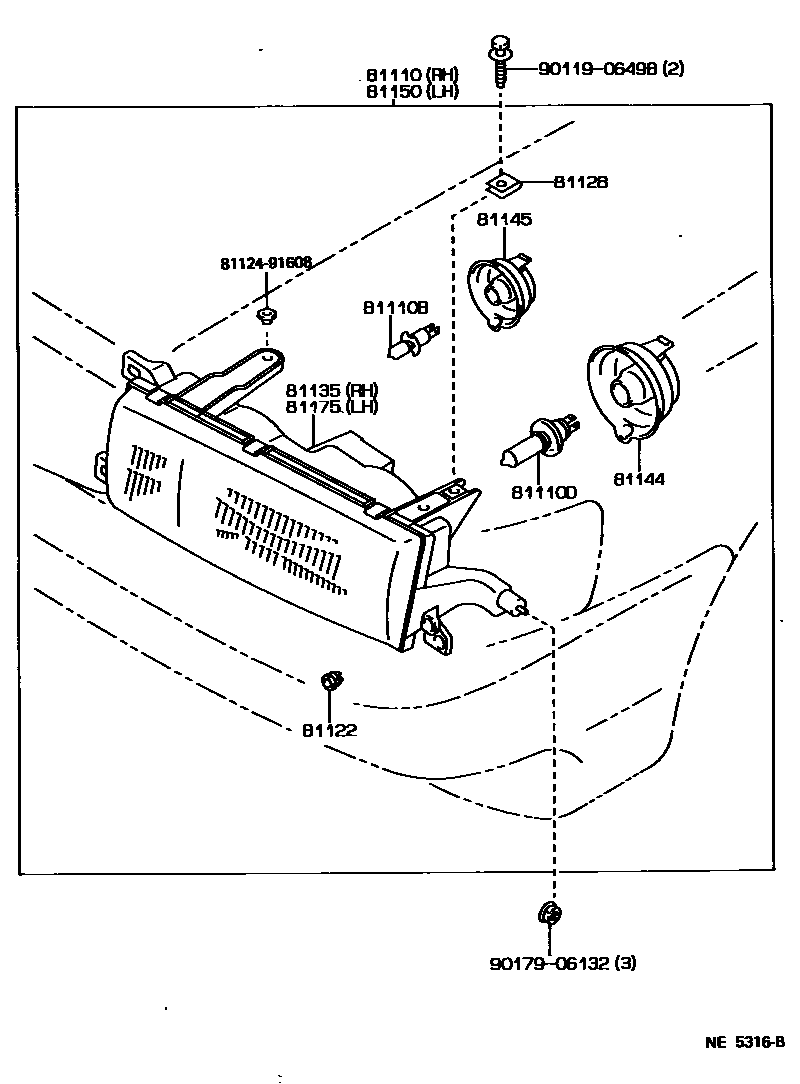

Toyota CRESTA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-23020i199008-199210

main81110-91608i198808-199008

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i199008-199210

main90981-13039×2i198808-199008

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13015×2i198808-199008

81122HOLDER, HEADLAMP

main81122-32210×2i198808-199210

81128NUT, HEADLAMP

main81128-22350×2i198808-199007

main81128-91606×2i199007-199210

81135UNIT ASSY, HEADLAMP, RH

main81130-23020i199008-199210

main81130-91608i198808-199008

81144COVER, HEADLAMP, NO.1

main81139-16340×2i198808-199008

main81139-23010×2i199008-199210

81145COVER, HEADLAMP, NO.2

main81139-22350×2i198808-199008

main81139-23020×2i199008-199210

81150HEADLAMP ASSY, LH

main81150-23020i199008-199210

main81150-91608i198808-199008

81175UNIT ASSY, HEADLAMP, LH

main81170-23020i199008-199210

main81170-91608i198808-199008

8112491608SPACER

main81124-91608

9011906498

main90119-06498

9017906132

main90179-06132

13 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota CRESTA

This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota CRESTA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), HOLDER, HEADLAMP, NUT, HEADLAMP.
