Toyota CRESTA — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
81110SSEALED BEAM UNIT, NO.1
12V 55W
81110TSEALED BEAM UNIT, NO.2
12V 60/55W
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81112RING, SEALED BEAM RETAINING, NO.2 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81152RING, SEALED BEAM RETAINING, NO.2 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
8113114630SCREW, HEADLAMP ADJUSTING
main81131-14630
9011906279
main90119-06279
9017906115
main90179-06115
9018904014
main90189-04014

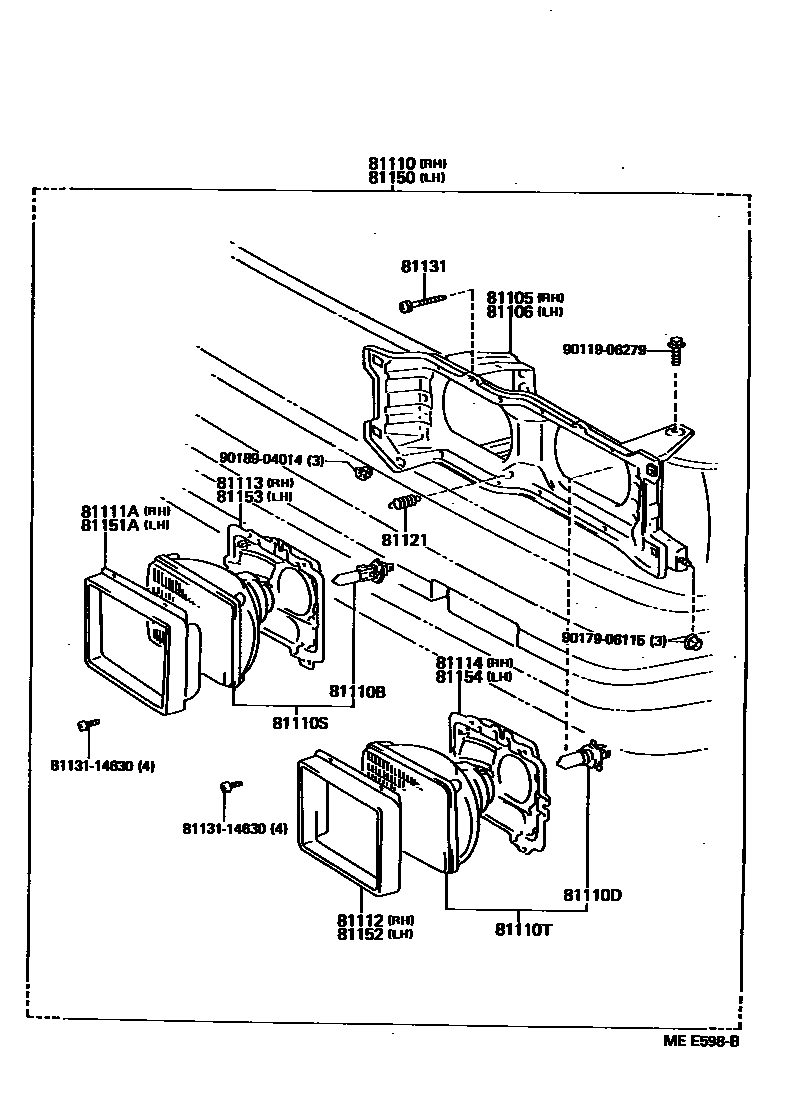

22 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota CRESTA
This section contains 28 genuine Toyota parts for the HEADLAMP system of the Toyota CRESTA. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
