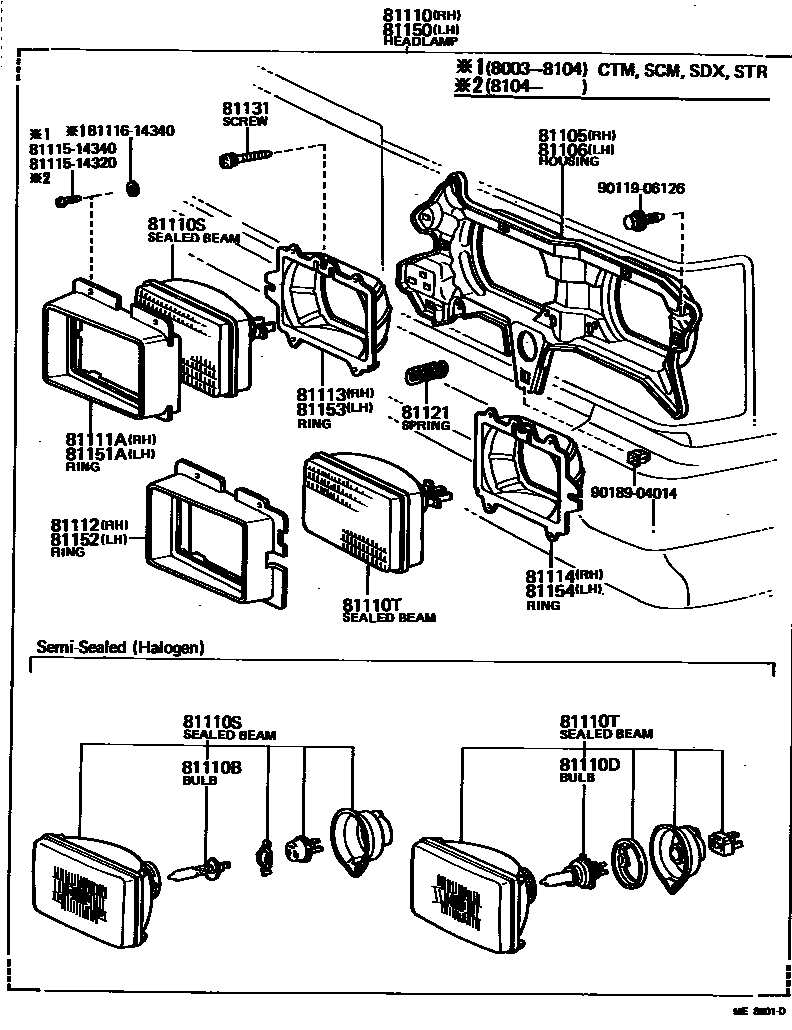

Toyota CRESTA — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
SUPER DELUXE EXTRA
HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
81110SSEALED BEAM UNIT, NO.1
81110TSEALED BEAM UNIT, NO.2
81111ARING, SEALED BEAM RETAINING, NO.1 RH
SUPER DELUXE EXTRA
81112RING, SEALED BEAM RETAINING, NO.2 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
SUPER DELUXE EXTRA
SUPER DELUXE EXTRA
HALOGEN
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81152RING, SEALED BEAM RETAINING, NO.2 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
8111514320RING, HEADLAMP HOUSING
main81115-14320
8111514340RING, HEADLAMP HOUSING
main81115-14340
8111614340COVER, SEALED BEAM UNIT
main81116-14340
9011906126
main90119-06126
9018904014
main90189-04014
23 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota CRESTA
This section contains 37 genuine Toyota parts for the HEADLAMP system of the Toyota CRESTA. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
