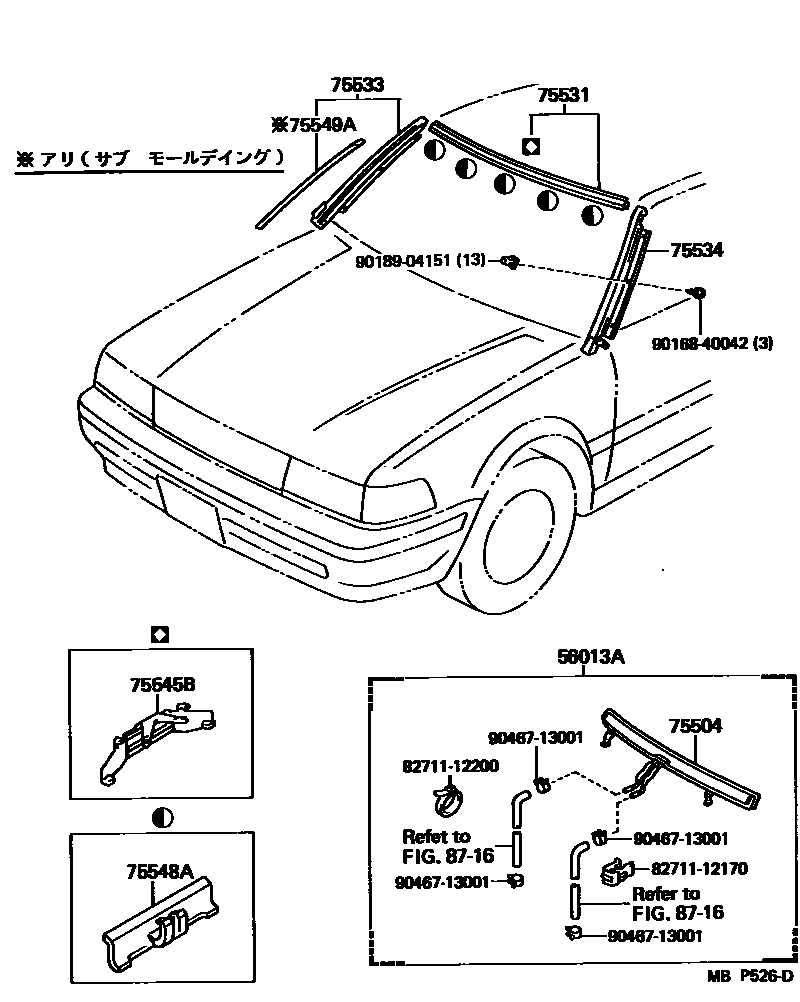

Toyota CRESTA — FRONT MOULDING
56013AMOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
***
***
***
***
75504MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER
75531MOULDING, WINDSHIELD, OUTER UPPER
75533MOULDING, WINDSHIELD, OUTSIDE RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75549AMOULDING, WINDSHIELD OUTSIDE SUB
8716HEATING & AIR CONDITIONING - WATER PIPING
8271112170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12170
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9016840042
main90168-40042
9018904151
main90189-04151
9046713001
main90467-13001
14 parts on this diagram · 1 diagram in section
FRONT MOULDING for Toyota CRESTA
This section contains 14 genuine Toyota parts for the FRONT MOULDING system of the Toyota CRESTA. Key components include: MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER, MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER, MOULDING, WINDSHIELD, OUTER UPPER, MOULDING, WINDSHIELD, OUTSIDE RH, MOULDING, WINDSHIELD, OUTSIDE LH.
