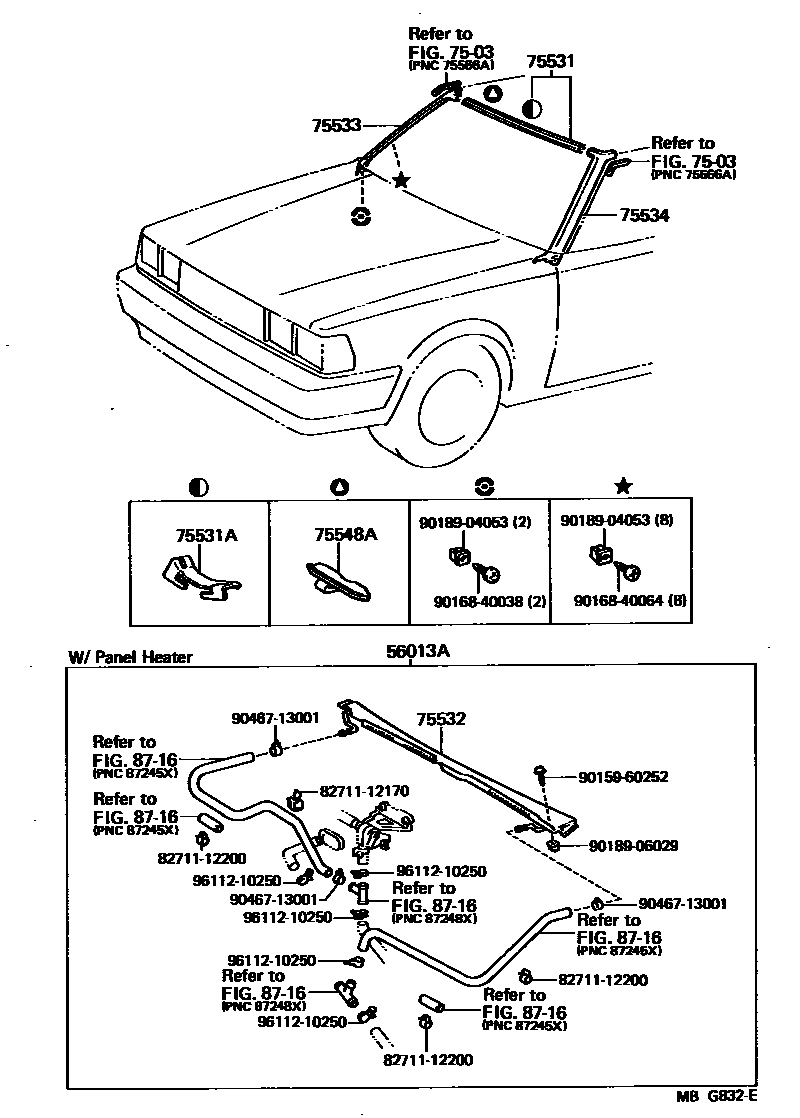

Toyota CRESTA — FRONT MOULDING

56013AMOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER

main56013-22020iGX71,LX70,MX71,SX70..KYO,SCM,SDX,SLU198502-198808

7503

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-22100iGX71,LX70,MX71,SX70198408-198808

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-22040×5iGX71,LX70,MX71,SX70198408-198808

75532MOULDING, WINDSHIELD, LOWER

main75504-22050iGX71,LX70,MX71,SX70..KYO,SCM,SDX,SLU198502-198808

W/PANEL HEATER

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-22160iGX71,LX70,MX71,SX70198408-198808

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-22150iGX71,LX70,MX71,SX70198408-198808

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-22100×6iGX71,LX70,MX71,SX70198408-198610

main75548-22101×6iGX71,LX70,SX70198610-198808

8716

8271112170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12170

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9015960252

main90159-60252

9016840038

main90168-40038

9016840064

main90168-40064

9018904053

main90189-04053

9018906029

main90189-06029

9046713001

main90467-13001

9611210250

main96112-10250

18 parts on this diagram · 1 diagram in section
