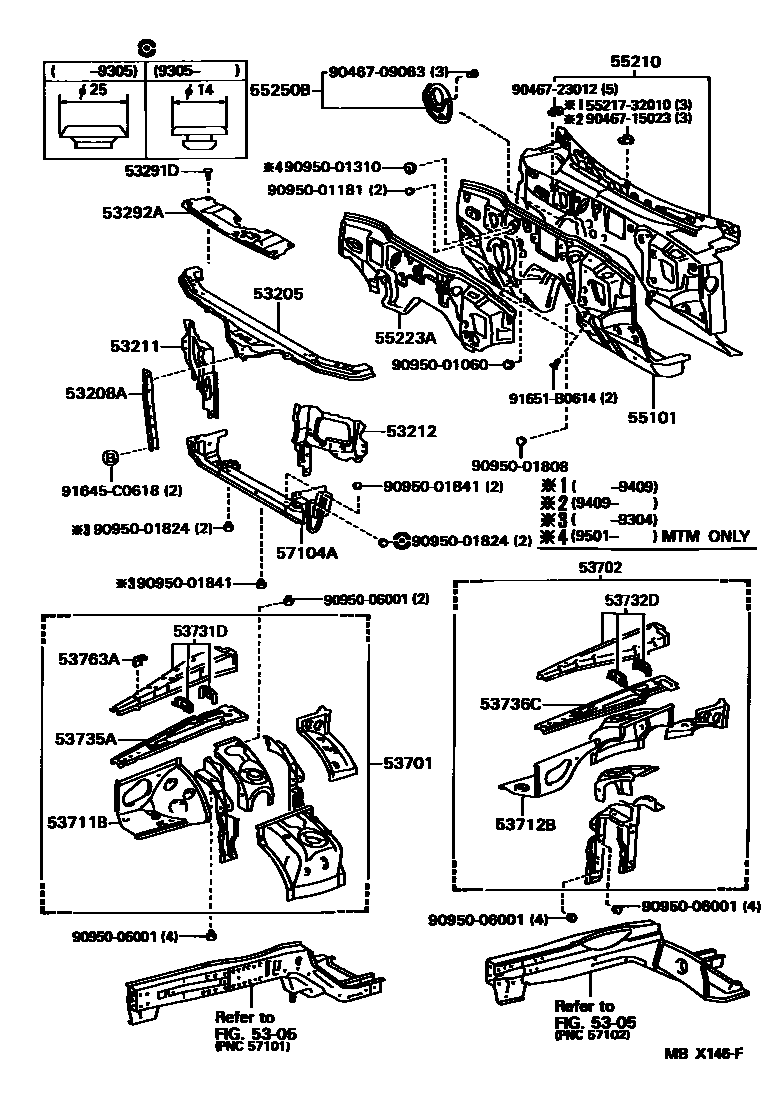

Toyota CRESTA — FRONT FENDER APRON & DASH PANEL
5305
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53291DCLIP, RADIATOR SUPPORT TO FRAME
53292ASEAL, RADIATOR SUPPORT, UPPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
sub53731-22901
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
sub53732-22901
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53763ABRACKET, AIR CLEANER INLET MOUNTING
55101PANEL SUB-ASSY, DASH
55223AINSULATOR, DASH PANEL, OUTER
55250BINSULATOR ASSY, DUSH PANEL, NO.3
57104AMEMBER SUB-ASSY, FRONT CROSS
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9046709063
main90467-09063
9046715023
main90467-15023
9046723012
main90467-23012
9095001060
main90950-01060
9095001181
main90950-01181
9095001310
main90950-01310
9095001808
main90950-01808
9095001824
main90950-01824
9095001841
main90950-01841
9095006001
main90950-06001
91645C0618
main91645-C0618
91651B0614
main91651-B0614
34 parts on this diagram · 1 diagram in section
