Toyota CRESTA — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68740-12110i199609-200106

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-12110i199609-200106

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12110i199609-200106

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12110i199609-200106

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22170i199609-200106

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22170i199609-200106

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-22350i199609-200106

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-22120i199609-200106

69812BPLATE, FRONT DOOR WINDOW REGULATOR BASE, LH

main69812-22030i199609-200106

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-22330i199609-200106

9010506145

main90105-06145

9010508322

main90105-08322

9011908093

main90119-08093

9017906070

main90179-06070

14 parts on this diagram · 1 diagram in section

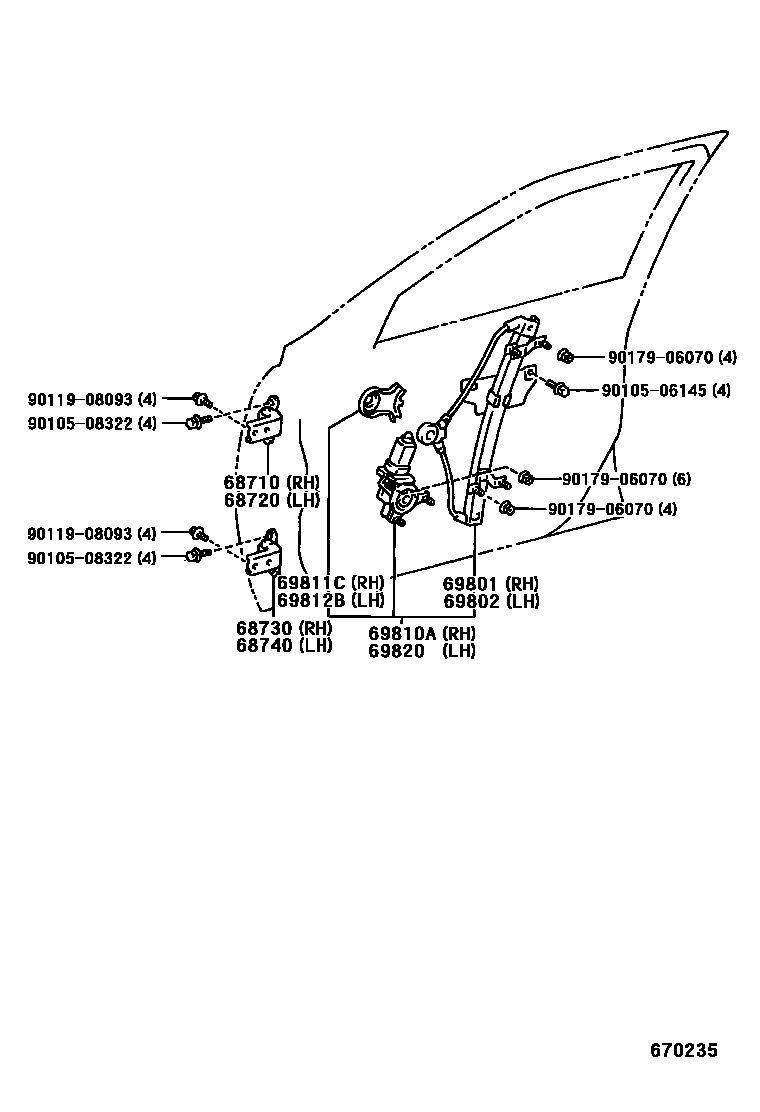

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota CRESTA

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota CRESTA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
