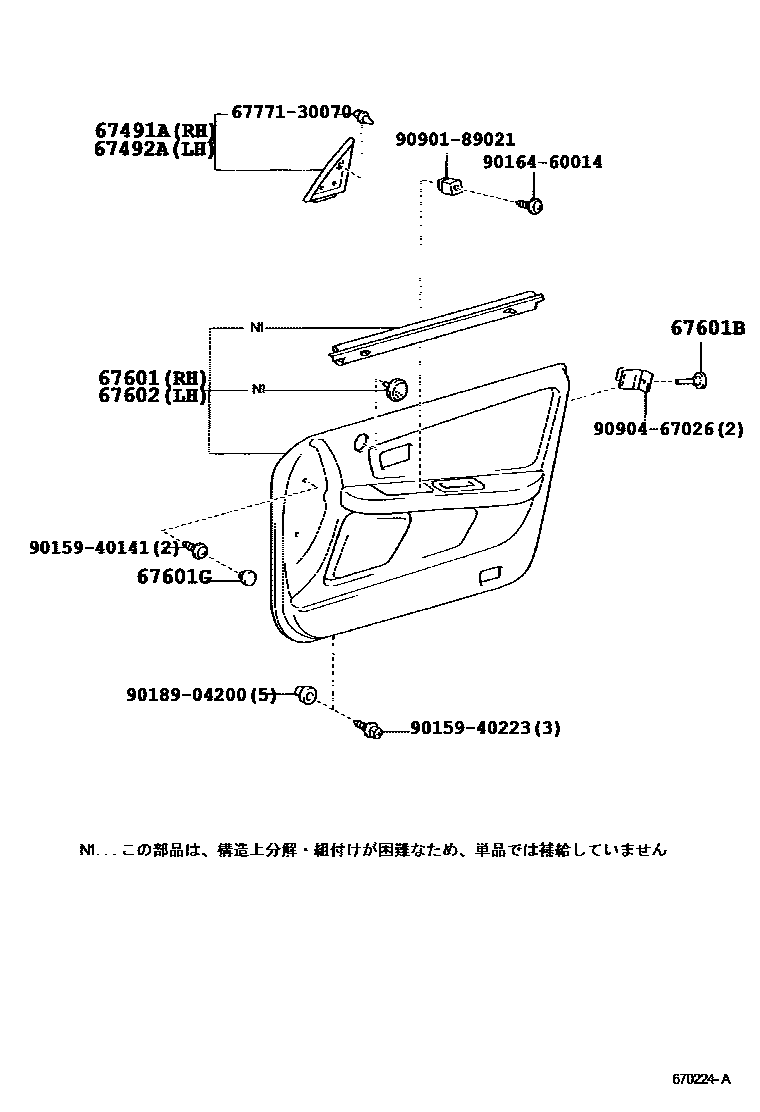

Toyota CRESTA — FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
SAGE,TRIM6#
ORCHID,TRIM4#
SAGE,TRIM6#
DK. BLUE GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
BLACK,TRIM2#
DK.BLUE GRAY,TRIM1#
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
SAGE,TRIM6#
ORCHID,TRIM4#
SAGE,TRIM6#
DK. BLUE GRAY,TRIM1#
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
9015940141
main90159-40141
9015940223
main90159-40223
9016460014
main90164-60014
9018904200
main90189-04200
9090189021
main90901-89021
9090467026
main90904-67026
13 parts on this diagram · 3 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota CRESTA
This section contains 41 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota CRESTA. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH.
