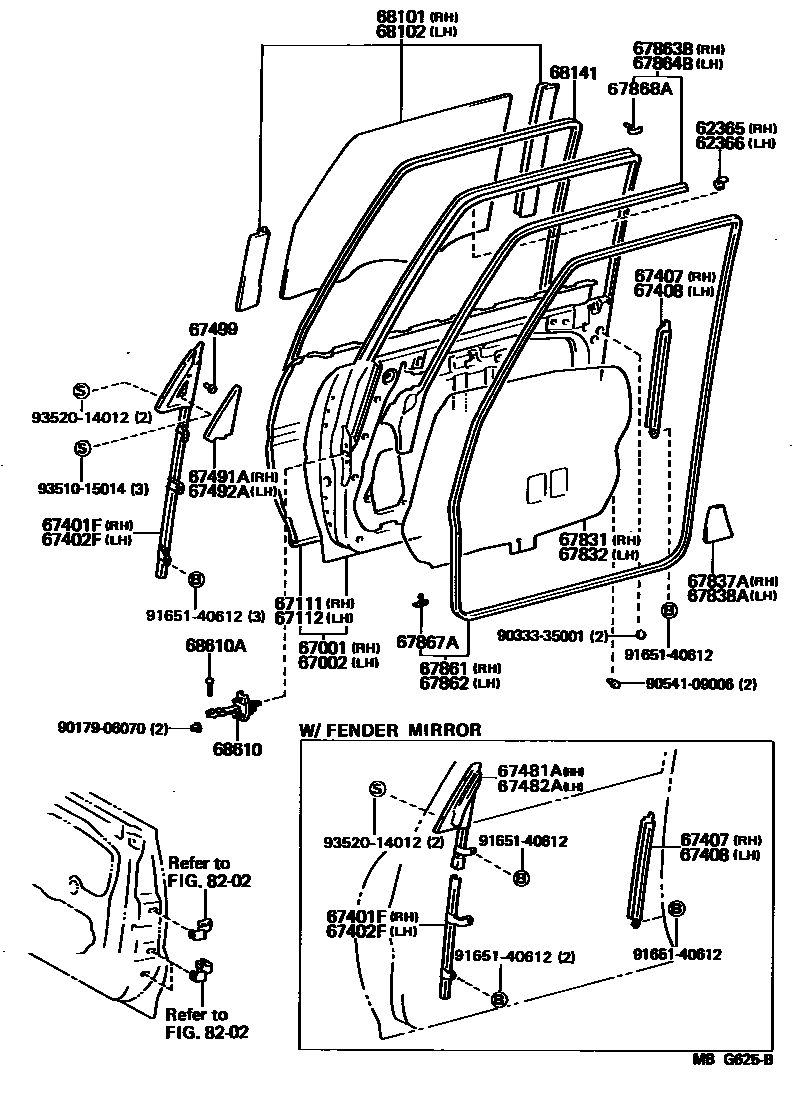

Toyota CRESTA — FRONT DOOR PANEL & GLASS

62365CLIP, DOOR WINDOW GLASS, FRONT RH

main62365-22040i198408-198808

main62365-22050i198408-198808

62366CLIP, DOOR WINDOW GLASS, FRONT LH

main62366-22010i198408-198808

main62366-22020i198408-198808

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22250i198408-198808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22250i198408-198808

67111PANEL, FRONT DOOR, OUTER RH

main67111-22120i198408-198506

main67111-22130i198506-198808

67112PANEL, FRONT DOOR, OUTER LH

main67112-22130i198408-198506

main67112-22140i198506-198808

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22110i198408-198808

main67401-22120i198408-198808

W/DOOR MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22110i198408-198808

main67402-22120i198408-198808

W/DOOR MIRROR

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-22020i198408-198808

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-22020i198408-198808

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-22090i198408-198808

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-22060i198408-198808

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22050i198408-198808

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22050i198408-198808

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2i198408-198808

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22100i198408-198808

main67831-22130i198408-198808

COLD SPEC

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-22130i198408-198808

COLD SPEC

main67832-22010i198408-198808

67837ASEAL, FRONT DOOR VENT, RH

main67837-22020i198408-198808

67838ASEAL, FRONT DOOR VENT, LH

main67838-22020i198408-198808

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22180i198408-198808

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22200i198408-198808

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-22030i198408-198808

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-22030i198408-198808

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-22020×19i198408-198808

main67868-22010×19i198408-198808

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040×4i198408-198808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-22130i198705-198808

*TT,T=4.0,W/*DM,GRAY

main68101-22140i198408-198608

*TT,T=4.0,W/*DM

main68101-22141i198608-198808

*TT,T=4.0,W/*DM

main68101-22220i198408-198608

*TEM,T=4.0,BRONZE,W/*DM

main68101-22221i198608-198808

main68101-22230i198408-198608

*TT,T=4.0,W/*FM

main68101-22231i198608-198808

main68101-22240i198408-198608

*TEM,T=4.0,BRONZE,W/*FM

main68101-22241i198608-198808

*TEM,T=4.0,BRONZE,W/*FM

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-22130i198705-198808

*TT,T=4.0,W/*DM,GRAY

main68102-22150i198408-198608

*TT,T=4.0,W/*DM

main68102-22151i198608-198808

main68102-22220i198502-198608

EXTRA,*TEM,T=4.0,BRONZE,W/*DM

main68102-22221i198608-198808

main68102-22230i198408-198608

*TT,T=4.0,W/*FM

main68102-22231i198608-198808

main68102-22240i198502-198608

EXTRA,*TEM,T=4.0,BRONZE,W/*FM

main68102-22241i198608-198808

68141RUN, FRONT DOOR GLASS

main68141-22100i198408-198808

RH,W/*DM

main68141-22120i198408-198808

RH,W/*FM

main68151-22050i198408-198808

LH,W/*DM

main68151-22070i198408-198808

LH,W/*FM

68610CHECK ASSY, FRONT DOOR

main68610-22030×2i198408-198808

68610APIN(FOR FRONT DOOR CHECK)

main68617-22020×2i198507-198808

main68617-90A00×2i198408-198507

8202WIRING & CLAMP

→ Go to FIG 82-02

9017906070

main90179-06070

9033335001

main90333-35001

9054109006

main90541-09006

9165140612

main91651-40612

9351015014

main93510-15014

9352014012

main93520-14012

37 parts on this diagram · 2 diagrams in section
