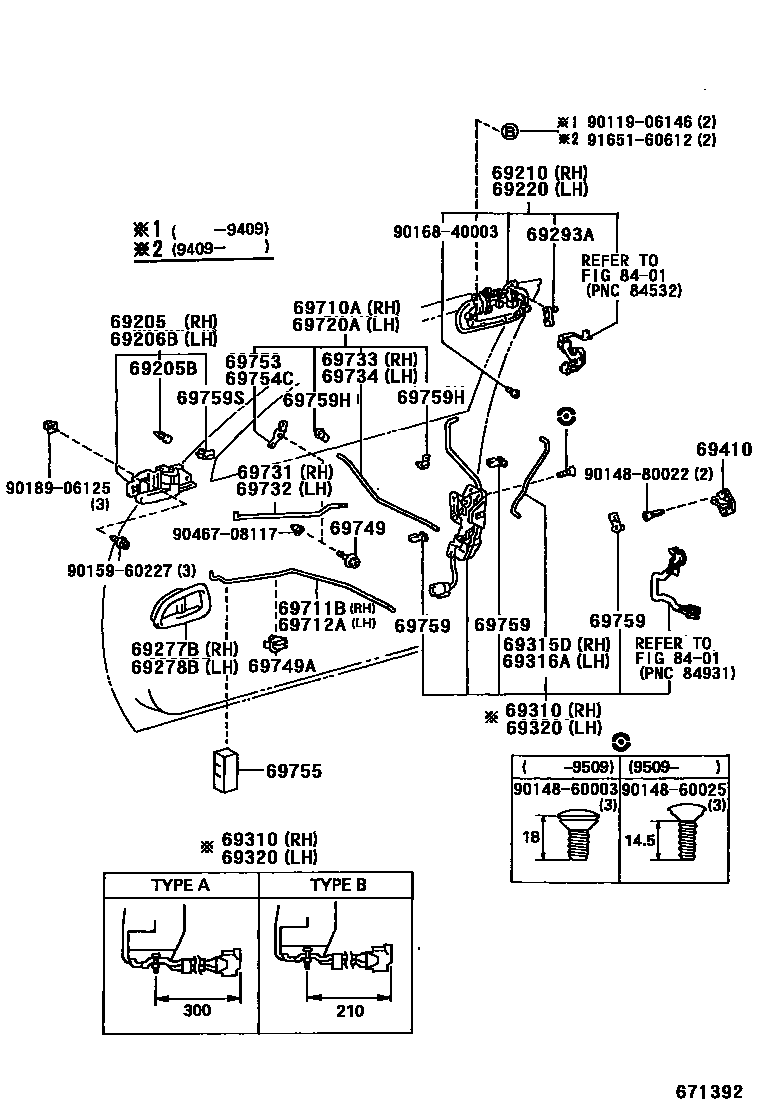

Toyota CRESTA — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22070-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

BEIGE,TRIM4#

main69205-22070-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

main69205-22070-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iGX90,JZX9#,LX90,SX90199210-199609

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22070-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

BEIGE,TRIM4#

sub69206-12150

main69206-22070-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub69206-12150

main69206-22070-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

sub69206-12150

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22180-A0iLX90,SX90199210-199409

SUPER WHITE 2,040

main69210-22180-A1iJZX9#199409-199412

WARM GRAY PM,046

main69210-22180-A2iGX90..ATM199604-199609

main69210-22180-B0iLX90,SX90199210-199409

DK.BL.GRAY ME,183

main69210-22180-B1iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199409-199609

SILVER ME,199

main69210-22180-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199409-199609

FLAXEN MM,4M7

main69210-22180-E1iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199409-199609

DK.BROWN MC.,4N2

main69210-22180-G0iLX90,SX90..SUF199210-199409

DK.GRAYISH OLIVE,6M7

main69210-22180-G1iJZX9#199409-199412

DK. GREEM MIO,6N2

main69210-22180-G2iGX90..ATM199504-199603

main69210-22180-H0iLX90..SUF;SX90..MTM199310-199409

DK.TURQUOISE.MC,742

main69210-22190-A0iGX90,JZX9#199210-199409

SUPER WHITE 2,040

main69210-22190-A1iGX90,JZX9#199310-199409

WARM GRAY PM,046

main69210-22190-A2iJZX90..SLT199310-199312

main69210-22190-B0iGX90,JZX9#199210-199409

DK.BL.GRAY ME,183

main69210-22190-E0iGX90,JZX9#..SLT,SLTG199210-199409

FLAXEN MM,4M7

main69210-22190-G0iGX90,JZX9#199210-199409

DK.GRAYISH OLIVE,6M7

main69210-22190-G1iGX90,JZX9#199310-199409

DK.GREEN MIO,6N2

main69210-22190-H0iGX90,JZX9#199310-199409

DK.TURQUOISE.MC,742

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22170-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main69220-22170-A1iJZX90;GX90,JZX91,93..ATM199412-199609

WARM GRAY PM,046

main69220-22170-A2iJZX90..SLT199310-199312

main69220-22170-A3iGX90..ATM199604-199609

main69220-22170-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main69220-22170-B1iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199409-199609

SILVER ME,199

main69220-22170-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

FLAXEN MM,4M7

main69220-22170-E1iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199409-199609

DK.BROWN MC.,4N2

main69220-22170-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main69220-22170-G1iLX90..SUF199310-199408

main69220-22170-G2iGX90..ATM199504-199603

main69220-22170-H0iSX90..MTM;GX90,JZX9#,LX90..SLT,SLTG,SUF,TOUS,TOUV199310-199409

DK.TURQUOISE.MC,742

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69297-22060-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

SABLE,TRIM4#

main69297-22060-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

main69297-22060-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69298-22060-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

SABLE,TRIM4#

main69298-22060-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

main69298-22060-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iGX90,JZX9#,LX90,SX90199210-199609

NATURAL

main69293-12060iGX90,JZX9#,LX90,SX90199210-199609

69310LOCK ASSY, FRONT DOOR, RH

main69030-22370iGX90,JZX9#,LX90,SX90199210-199503

TYPE A

main69030-22371iGX90,JZX9#,LX90,SX90199503-199609

TYPE B

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-22040iGX90,JZX9#,LX90,SX90199210-199609

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-22050iGX90,JZX9#,LX90,SX90199210-199609

69320LOCK ASSY, FRONT DOOR, LH

main69040-22440iLX90,SX90199210-199503

TYPE A

main69040-22441iLX90,SX90199503-199609

TYPE B

main69040-22450iGX90,JZX9#199210-199503

TYPE A

main69040-22451iGX90,JZX9#199503-199609

TYPE B

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iGX90,JZX9#,LX90,SX90199210-199609

69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH

main69710-22030iGX90,JZX9#,LX90,SX90199210-199609

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-22110iGX90,JZX9#,LX90,SX90199210-199609

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-22110iGX90,JZX9#,LX90,SX90199210-199609

69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH

main69720-22030iGX90,JZX9#,LX90,SX90199210-199609

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-22060iGX90,JZX9#,LX90,SX90199210-199609

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-22060iGX90,JZX9#,LX90,SX90199210-199609

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-22040iGX90,JZX9#,LX90,SX90199210-199609

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-22040iGX90,JZX9#,LX90,SX90199210-199609

69749CLAMP, FRONT DOOR LOCK LINK

main90467-06106×2iGX90,JZX9#,LX90,SX90199210-199609

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010×2iGX90,JZX9#,LX90,SX90199210-199609

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-22050iGX90,JZX9#,LX90,SX90199210-199609

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69754-22020iGX90,JZX9#,LX90,SX90199210-199609

69755SILENCER, FRONT DOOR LOCK LINK

main69759-22130iGX90,JZX9#,LX90,SX90199307-199609

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010×2iGX90,JZX9#,LX90,SX90199210-199609

NATURAL

main69759-24050×2iGX90,JZX9#,LX90,SX90199210-199609

GREEN

main69759-24060×2iGX90,JZX9#,LX90,SX90199210-199609

GRAY

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24080iGX90,JZX9#,LX90,SX90199210-199609

main69759-24090×2iGX90,JZX9#,LX90,SX90199210-199609

main69759-50040×2iGX90,JZX9#,LX90,SX90199210-199609

NATURAL

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050×2iGX90,JZX9#,LX90,SX90199210-199609

PINK

main69759-24070×2iGX90,JZX9#,LX90,SX90199210-199609

8401

9011906146

main90119-06146

9014860003

main90148-60003

9014860025

main90148-60025

9014880022

main90148-80022

9015960227

main90159-60227

9016840003

main90168-40003

9018906125

main90189-06125

9046708117

main90467-08117

9165160612

main91651-60612

39 parts on this diagram · 1 diagram in section
