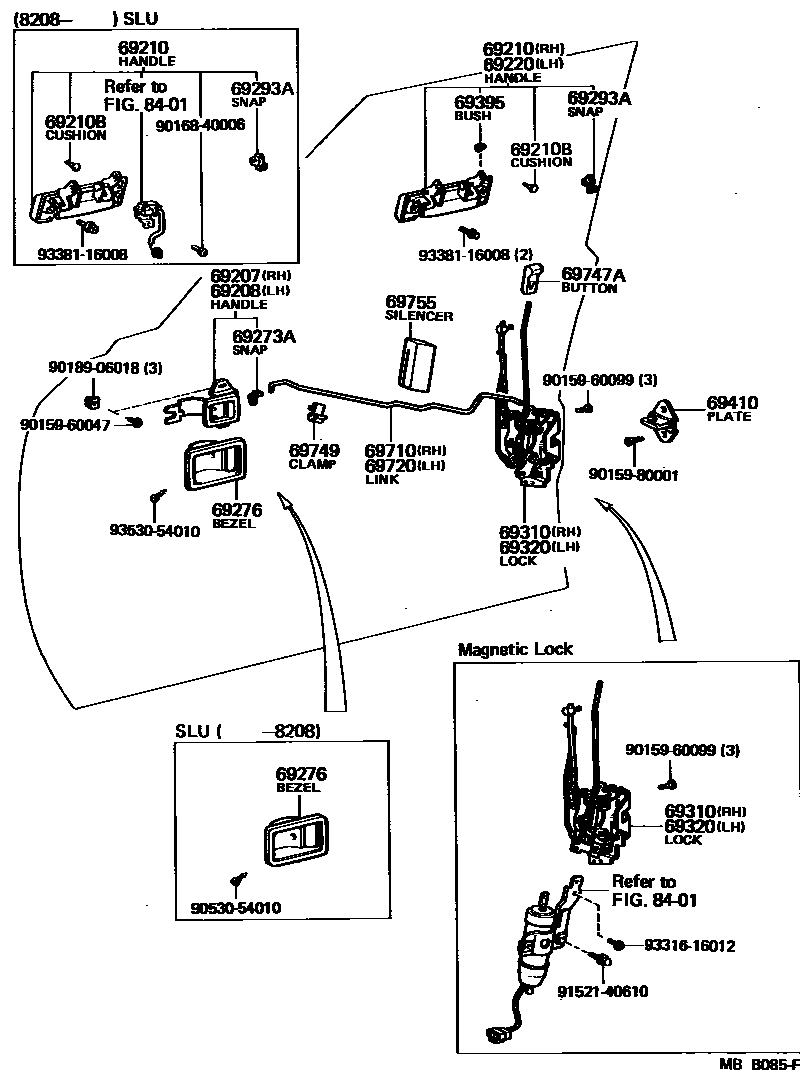

Toyota CRESTA — FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22040iGX5#,MX51,TX50198003-198208

main69210-22060iGX61,MX61..SLU198208-198407

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×4iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69279-12020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH

main69288-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-16040-01×2iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

sub69277-89104

main69277-16040-06×2iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

D-BROWN,BROWN,TRIM4#

sub69277-89104

main69277-16040-14×2iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

sub69277-89104

main69277-16040-22×2iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-89104

main69277-30030×2iGX51,MX51..SLU198003-198208

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-22010iGX5#,61,LX60,MX51,61,SX60,TX50198108-198407

RH

main69293-22020iGX5#,61,LX60,MX51,61,SX60,TX50198108-198407

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-22090iGX61,LX60,MX61..SCM,SDX,SLU198208-198407

W/MAGNETIC LOCK

main69310-22100iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198104-198407

69320LOCK ASSY, FRONT DOOR, LH

main69320-22080iGX61,LX60,MX61..SCM,SDX,SLU198208-198407

W/MAGNETIC LOCK

main69320-22090iLX60..CTM198308-198407

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69395-20020×2iGX5#,TX50198003-198108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22030×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub69410-90B01

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-30020-01×2iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

sub69741-30030

main69741-30020-06×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

sub69741-30030

main69741-30020-12×2iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub69741-30030

main69741-30020-14×2iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub69741-30030

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010×2iGX5#,MX51,TX50198003-198208

main69749-30020×2iGX61,LX60,MX61,SX60198208-198407

69755SILENCER, FRONT DOOR LOCK LINK

main69759-30021×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

8401

9015960047

main90159-60047

9015960099

main90159-60099

9015980001

main90159-80001

9016840006

main90168-40006

9018906018

main90189-06018

9053054010

main90530-54010

9152140610

main91521-40610

9331616012

main93316-16012

9338116008

main93381-16008

9353054010

main93530-54010

28 parts on this diagram · 1 diagram in section
