Toyota CRESTA — FRONT CLEARANCE LAMP

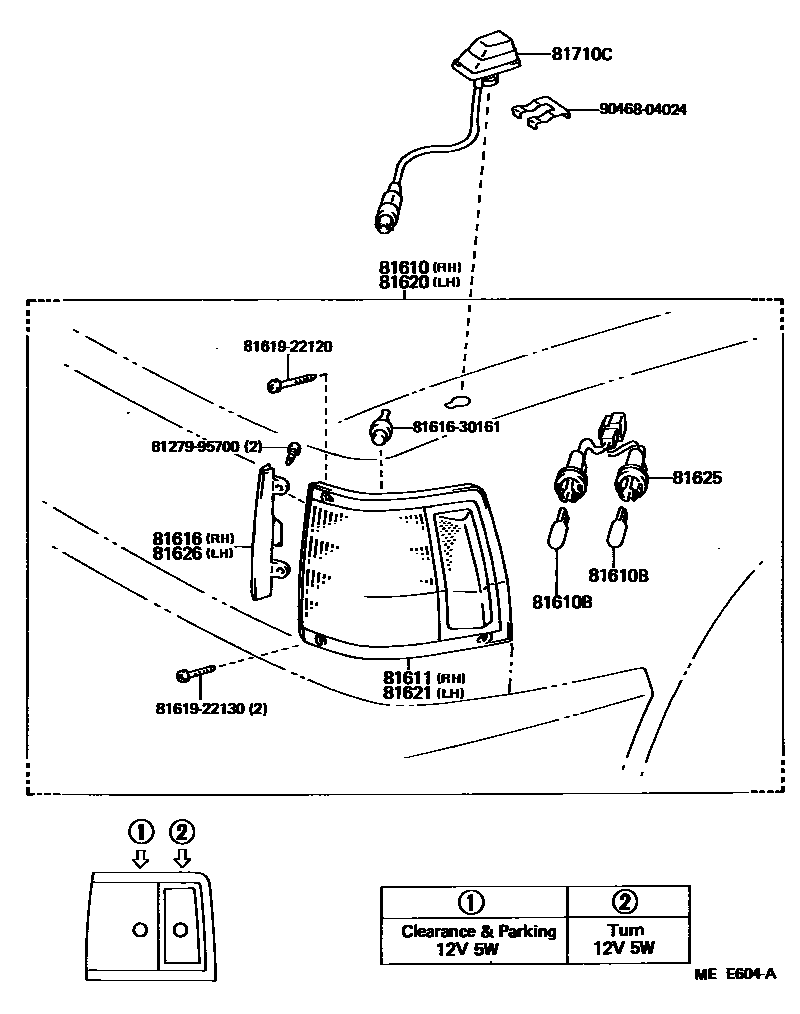

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-22180i198608-198808

main81610-29415i198408-198608

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-12010×4i198408-198608

main99132-12050×4i198608-198808

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-22120i198408-198608

main81611-22180i198608-198808

81616RIM, PARKING AND CLEARANCE LAMP, RH

main81616-22120i198408-198608

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-22180i198608-198808

main81620-29405i198408-198608

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-22120i198408-198608

main81621-22180i198608-198808

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-22120i198408-198608

main81615-22180i198608-198808

81626RIM, PARKING AND CLEARANCE LAMP, LH

main81626-22120i198408-198608

81710CMARKER ASSY, FENDER

main81710-22020i198408-198608

RH

main81720-22020i198408-198608

LH

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

8161630161RIM, PARKING AND CLEARANCE LAMP, RH

main81616-30161

8161922120

main81619-22120

8161922130

main81619-22130

9046804024

main90468-04024

14 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CRESTA

This section contains 19 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CRESTA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP BODY, RH, RIM, PARKING AND CLEARANCE LAMP, RH.
