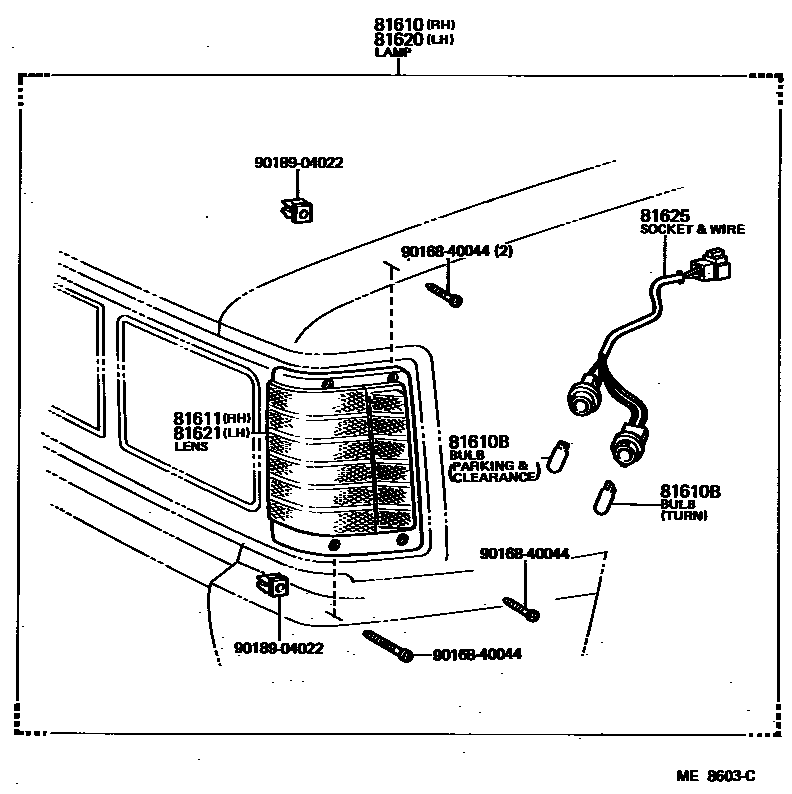

Toyota CRESTA — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-29205i198003-198208

main81610-29206i198208-198407

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×2i198003-198407

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-22030i198003-198208

main81611-22031i198208-198407

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-29195i198003-198208

main81620-29196i198208-198407

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-22030i198003-198208

main81621-22031i198208-198407

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-22030×2i198003-198208

main81615-22031×2i198208-198407

9016840044

main90168-40044

9018904022

main90189-04022

8 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CRESTA

This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CRESTA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
