Toyota CRESTA — FRONT BUMPER & BUMPER STAY

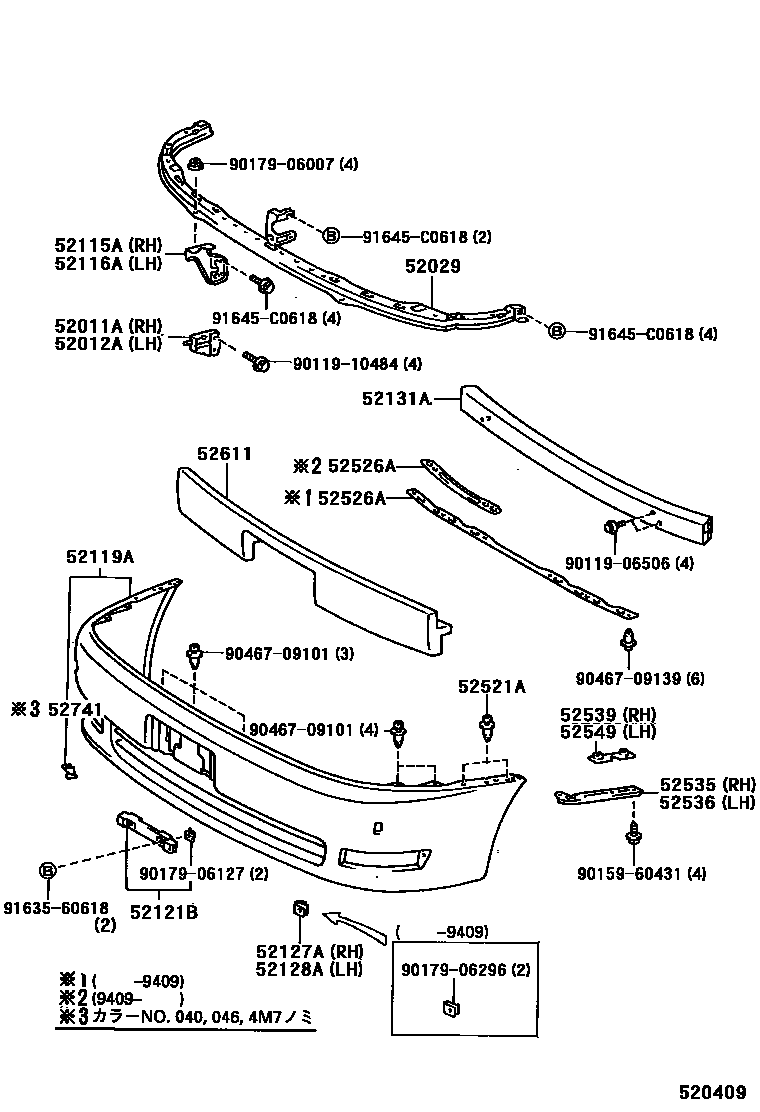

Parts diagram

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-22240i199210-199609

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-22250i199210-199609

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-22030i199210-199609

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-22180i199210-199609

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-22150i199210-199609

52119ACOVER, FRONT BUMPER

main52119-22770-A0i199210-199409

SUPER WHITE 2,040

main52119-22770-A1i199210-199310

WARM GRAY PM,046

main52119-22770-A2i199401-199408

main52119-22770-B0i199210-199409

DK.BL.GRAY ME,183

main52119-22770-E0i199210-199409

FLAXEN MM,4M7

main52119-22770-G0i199210-199409

DK.GRAYISH OLIVE ME,6M7

main52119-22770-G1i199310-199408

main52119-22770-H0i199310-199409

DK.TURQUOISE.MC,742

main52119-22780-A0i199210-199409

main52119-22780-A1i199210-199409

main52119-22780-B0i199210-199409

main52119-22780-E0i199210-199409

main52119-22780-G0i199210-199409

main52119-22780-G1i199210-199409

main52119-22780-H0i199310-199409

main52119-22850-A0i199409-199609

SUPER WHITE 2,040

main52119-22850-A1i199409-199412

WARM GRAY PM,046

main52119-22850-A2i199604-199609

main52119-22850-B0i199409-199609

SILVER ME,199

main52119-22850-E0i199409-199609

FLAXEN MM,4M7

main52119-22850-E1i199409-199609

DK.BROWN MC.,4N2

main52119-22850-G0i199412-199609

DK.GREEN MIO,6N2

main52119-22850-G1i199504-199603

main52119-22850-H0i199409-199509

DK.TURQUOISE.MC,742

main52119-22860-A0i199409-199609

main52119-22860-A1i199409-199609

main52119-22860-B0i199409-199609

main52119-22860-E0i199409-199609

main52119-22860-E1i199409-199609

main52119-22860-G0i199409-199609

main52119-22860-H0i199409-199509

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-22120i199210-199409

main52121-22140i199410-199609

52127ABRACKET, FRONT TURN SIGNAL LAMP, RH

main52127-22070i199409-199609

52128ABRACKET, FRONT TURN SIGNAL LAMP, LH

main52127-22070i199409-199609

52131AREINFORCEMENT, FRONT BUMPER

main52131-22180i199210-199609

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05063-01×4i199412-199509

BLACK,040 ,046 ,199 ,4M7 ,4N2 ,6N2 ,742; BLACK,040 ,199 ,4M7 ,4N2 ,6N2 ,742; BLACK,040 ,199 ,4M7 ,4N2 ,742

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-22090i199210-199409

main52526-22100×2i199409-199609

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-22040i199210-199609

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-22040i199210-199609

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-22020i199210-199609

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52549-22020i199210-199609

52611ABSORBER, FRONT BUMPER ENERGY

main52611-22190i199210-199409

main52611-22230i199409-199609

52741GARNISH, FRONT BUMPER BAR, NO.1

main52741-22020i199210-199409

main52741-22040i199409-199609

9011906506

main90119-06506

9011910484

main90119-10484

9015960431

main90159-60431

9017906007

main90179-06007

9017906127

main90179-06127

9017906296

main90179-06296

9046709101

main90467-09101

9046709139

main90467-09139

9163560618

main91635-60618

91645C0618

main91645-C0618

28 parts on this diagram · 1 diagram in section

FRONT BUMPER & BUMPER STAY for Toyota CRESTA

This section contains 28 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota CRESTA. Key components include: ARM SUB-ASSY, FRONT BUMPER, RH, ARM SUB-ASSY, FRONT BUMPER, LH, REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH.
