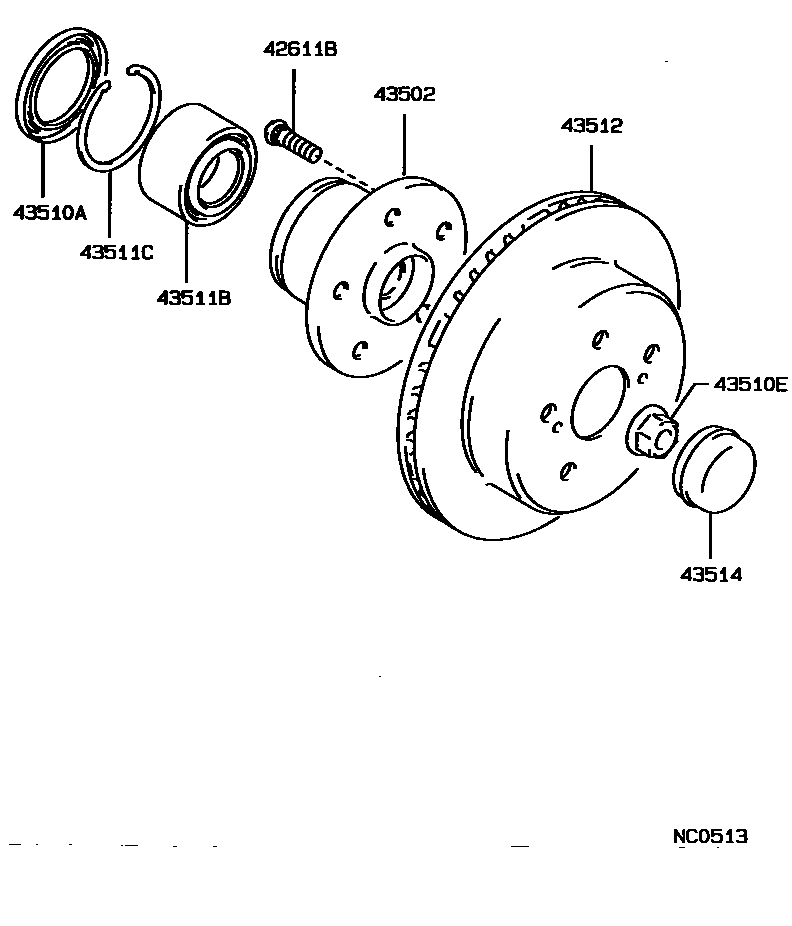

Toyota CRESTA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049×5i199008-199210

43502HUB SUB-ASSY, FRONT AXLE

main43502-22060×2i199002-199008

main43503-22010×2i199008-199210

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48013×2i198808-199008

43510ENUT (FOR STEERING KNUCKLE)

main90179-22017×2i198808-199008

43511BBEARING (FOR FRONT AXLE HUB)

main90369-32003i199008-199111

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001×2i198808-199008

43512DISC, FRONT

main43512-22110×2i198808-198908

main43512-22120×2i198808-199210

main43512-22140×2i199002-199008

main43512-22150×2i199008-199210

main43512-22170×2i199008-199210

43514CAP, FRONT HUB GREASE

main43514-22030×2i198808-199008

8 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CRESTA

This section contains 8 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CRESTA. Key components include: BOLT, HUB (FOR FRONT AXLE), HUB SUB-ASSY, FRONT AXLE, SEAL, OIL (FOR FRONT AXLE HUB), NUT (FOR STEERING KNUCKLE), BEARING (FOR FRONT AXLE HUB).
