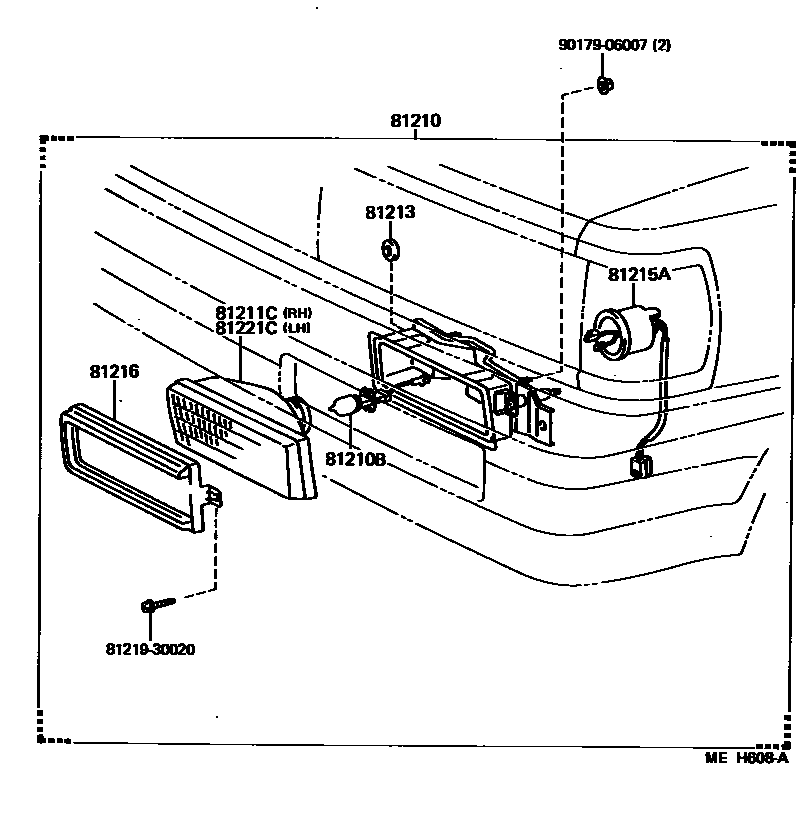

Toyota CRESTA — FOG LAMP

81210LAMP ASSY, FOG

main81210-22030i198608-198808

main81220-22020i198608-198808

81210BBULB, FOG LAMP

main90981-13018×2i198608-198808

81211CLAMP UNIT, FOG LAMP, RH

main81212-22030i198608-198808

81213SPACER, FOG LAMP

main81218-30020×2i198608-198808

81215ASOCKET & WIRE, FOG LAMP

main81215-22030×2i198608-198808

81216RIM, FOG LAMP, NO.1

main81216-22030i198608-198808

main81226-22020i198608-198808

81221CLAMP UNIT, FOG LAMP, LH

main81222-22020i198608-198808

8121930020BOLT, FOG LAMP

main81219-30020

9017906007

main90179-06007

9 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota CRESTA

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota CRESTA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, SPACER, FOG LAMP, SOCKET & WIRE, FOG LAMP.
