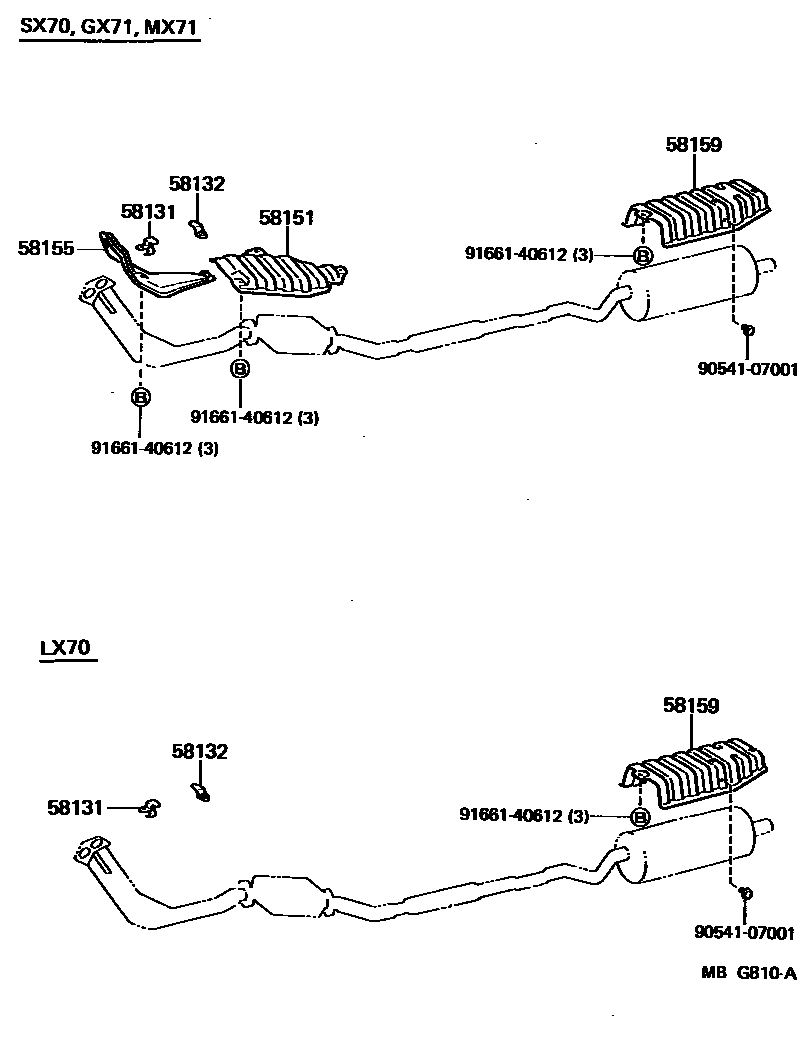

Toyota CRESTA — FLOOR INSULATOR

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-22030i198408-198808

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-22030×2i198408-198808

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-22050i198408-198808

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22060i198510-198808

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-22050i198408-198808

9054107001

main90541-07001

9166140612

main91661-40612

7 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota CRESTA

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota CRESTA. Key components include: BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1, BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.3, INSULATOR, MAIN MAFFLAR HEAT.
