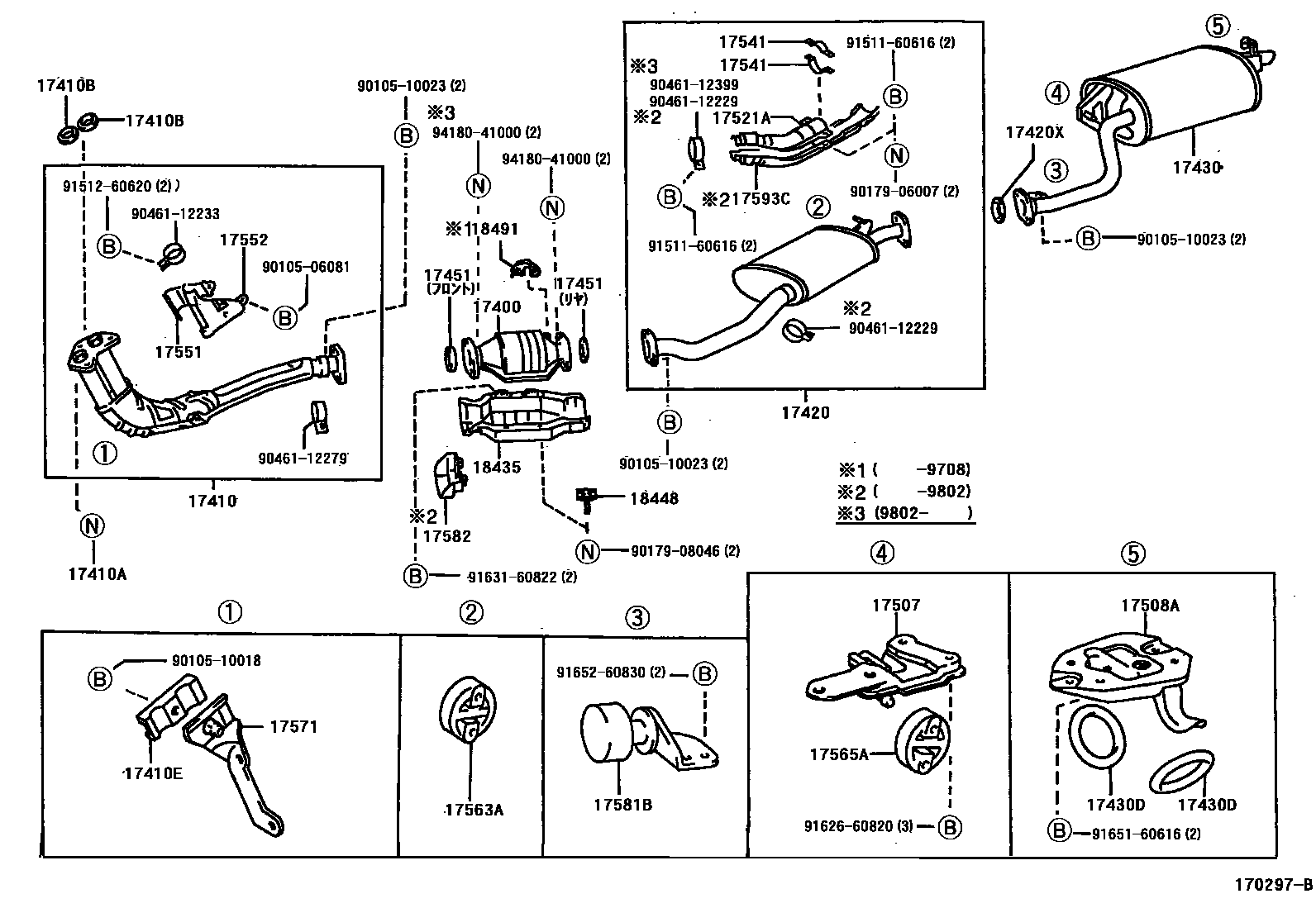

Toyota CRESTA — EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
main90301-36001×2i1JZGE..JZX100;1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100..EXC,EXCG,ROUG,SC,SLT199609-200106
17451GASKET, EXHAUST PIPE
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17541STAY, EXHUST PIPE PROTECTOR, NO.1
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17552INSULATOR, EXHAUST PIPE HEAT, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17581BDAMPER, EXHAUST PIPE, NO.2
17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
18491FLANGE, THERMOSENSOR INLET
9010506081
main90105-06081
9010510018
main90105-10018
9010510023
main90105-10023
9017906007
main90179-06007
9017908046
main90179-08046
9046112229
main90461-12229
9046112233
main90461-12233
9046112279
main90461-12279
9046112399
main90461-12399
9151160616
main91511-60616
9151260620
main91512-60620
9162660820
main91626-60820
9163160822
main91631-60822
9165160616
main91651-60616
9165260830
main91652-60830
9418041000
main94180-41000
41 parts on this diagram · 9 diagrams in section
EXHAUST PIPE for Toyota CRESTA
This section contains 74 genuine Toyota parts for the EXHAUST PIPE system of the Toyota CRESTA. Key components include: CONVERTER ASSY, W/CATALYST, BAFFLE SUB ASSY, EXHAUST TAILPIPE, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE.
