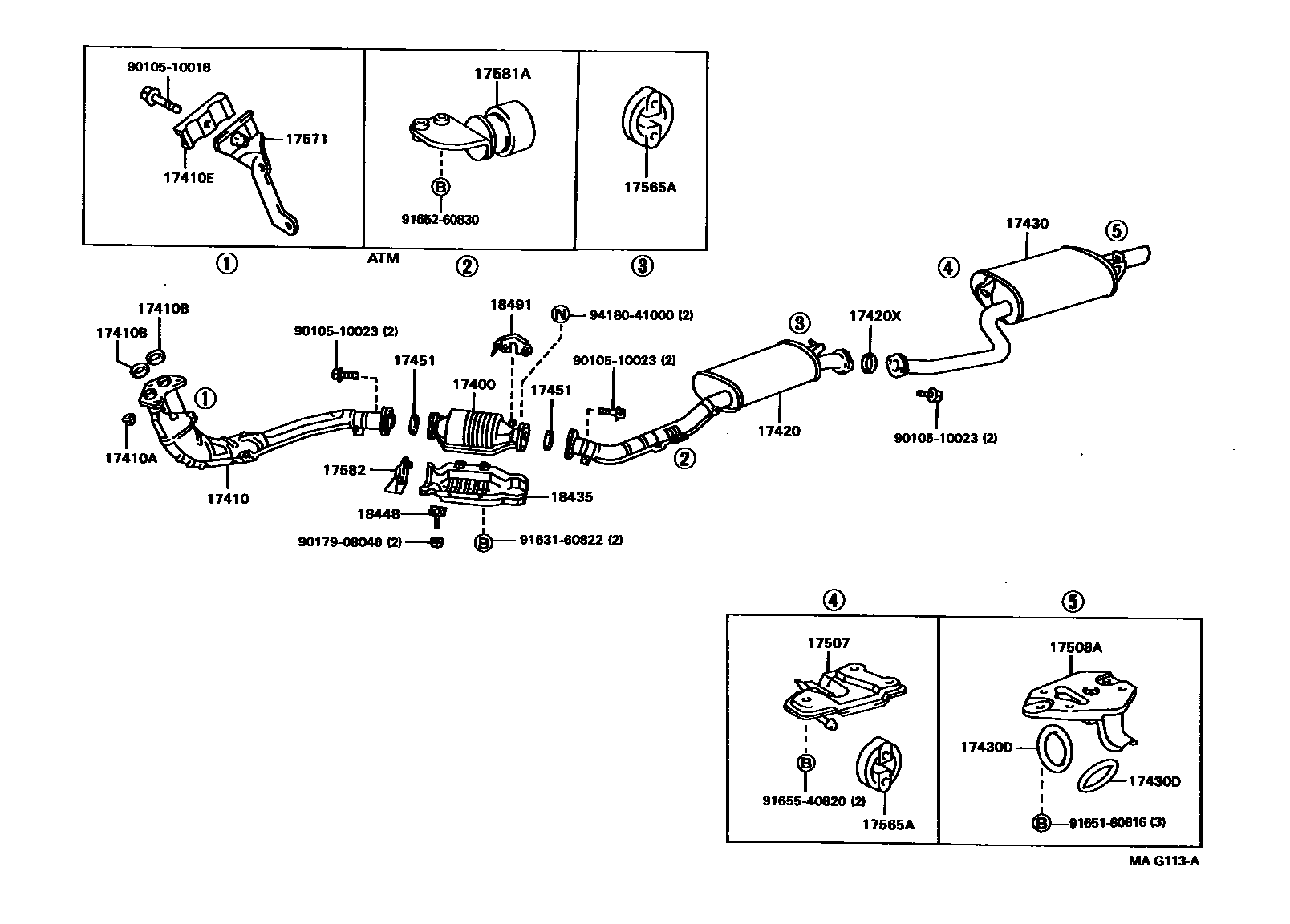

Toyota CRESTA — EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17451GASKET, EXHAUST PIPE
FRONT
FRONT
REAR
REAR
REAR
REAR
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17581ADAMPER, EXHAUST PIPE
17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
18491FLANGE, THERMOSENSOR INLET
9010510018
main90105-10018
9010510023
main90105-10023
9017908046
main90179-08046
9163160822
main91631-60822
9165160616
main91651-60616
9165260830
main91652-60830
9165540820
main91655-40820
9418041000
main94180-41000
27 parts on this diagram · 6 diagrams in section
EXHAUST PIPE for Toyota CRESTA
This section contains 32 genuine Toyota parts for the EXHAUST PIPE system of the Toyota CRESTA. Key components include: CONVERTER ASSY, W/CATALYST, BRACKET, CATALYTIC CONVERTER SUPPORT, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE.
