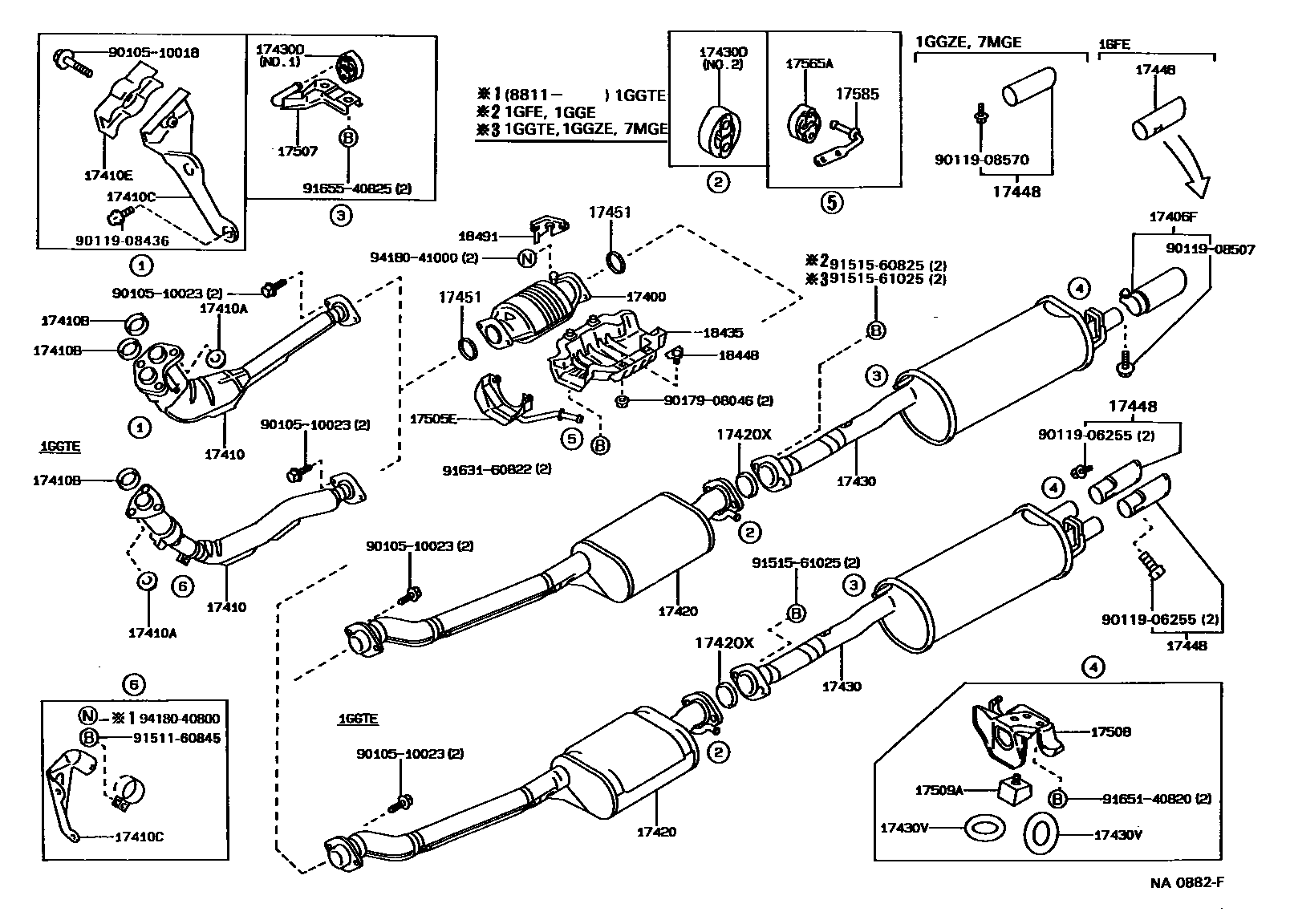

Toyota CRESTA — EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17406FDIFFUSER SUB-ASSY, EXHAUST GAS
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
main17565-63020i1JZGTE,4SF#..JZX81,SX80..4FC; 4SF#..SX80..5F;1GFE,1GG#,1JZGE,2L#,7MGE,3YP..GX81,JZX81,LX80,MX83,YX80198808-199210
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
17505ESUPPORT SUB-ASSY, CATALYTIC CONVERTER
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
main17509-70010i4SF#..SX80..4FC; 4SF#..SX80..5F;1GFE,1GG#,1JZ#,2L#,7MGE,3YP..GX81,JZX81,LX80,MX83,YX80198808-199210
NO.1
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17585HANGER, EXHAUST PIPE
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
18491FLANGE, THERMOSENSOR INLET
9010510018
main90105-10018
9010510023
main90105-10023
9011906255
main90119-06255
9011908436
main90119-08436
9011908507
main90119-08507
9011908570
main90119-08570
9017908046
main90179-08046
9151160845
main91511-60845
9151560825
main91515-60825
9151561025
main91515-61025
9163160822
main91631-60822
9165140820
main91651-40820
9165540825
main91655-40825
9418040800
main94180-40800
9418041000
main94180-41000
38 parts on this diagram · 6 diagrams in section
EXHAUST PIPE for Toyota CRESTA
This section contains 50 genuine Toyota parts for the EXHAUST PIPE system of the Toyota CRESTA. Key components include: CONVERTER ASSY, W/CATALYST, DIFFUSER SUB-ASSY, EXHAUST GAS, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE.
