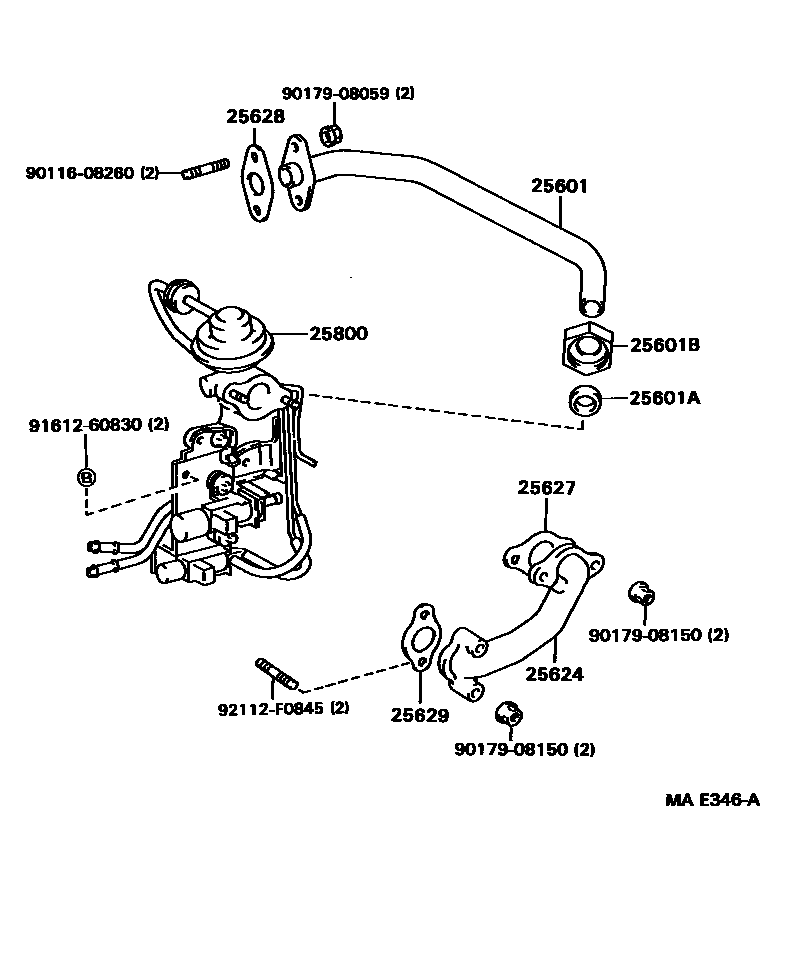

Toyota CRESTA — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54070i199210-199609

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-25001i199210-199609

25601BNUT, UNION, EGR PIPE, NO.1

main90402-33001i199210-199609

25624ADAPTER, EGR VALVE

main25624-54040i199210-199609

25627GASKET, EGR VALVE

main25627-54011i199210-199609

25628GASKET, EGR INLET

main25628-54012i199210-199609

25629GASKET, EGR VALVE ADAPTER

main25629-54011i199210-199609

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-54121i199210-199308

main25800-54150i199308-199509

main25800-54170i199509-199609

9011608260

main90116-08260

9017908059

main90179-08059

9017908150

main90179-08150

9161260830

main91612-60830

92112F0845

main92112-F0845

13 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CRESTA

This section contains 14 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CRESTA. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, ADAPTER, EGR VALVE, GASKET, EGR VALVE.
