Toyota CRESTA — ELECTRONIC FUEL INJECTION SYSTEM

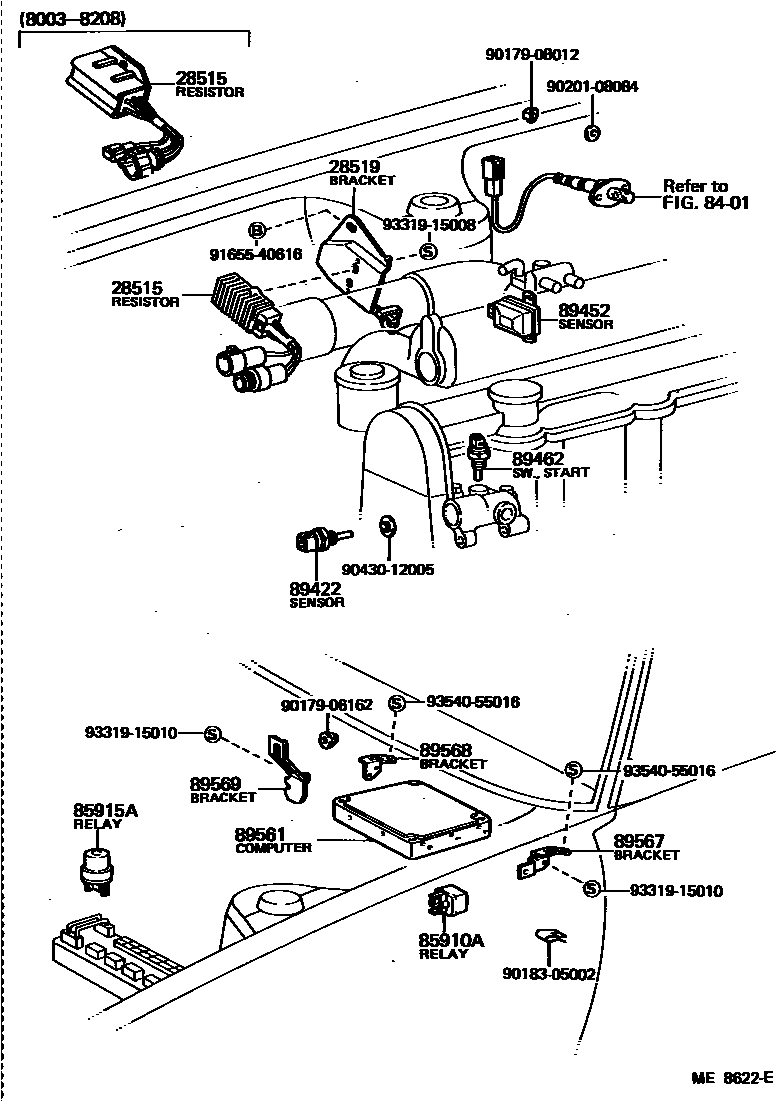

Parts diagram

28515RESISTOR, SOLENOID

main28515-41010198003-198208

main28515-43010198110-198407

28519BRACKET, SOLENOID RESISTOR

main28519-22050198208-198407

main28519-22060198208-198407

main28519-43020198110-198208

main28519-70010198003-198208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040198208-198407

main85910-30050198003-198407

85915ARELAY, MAIN

main90987-02001198003-198208

main90987-02004198110-198407

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020198003-198407

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010198208-198308

main89452-22010198003-198407

main89452-30040198302-198407

89462SWITCH, START INJECTOR TIME

main89462-30011198110-198407

main89462-40010198003-198407

89561COMPUTER, FUEL INJECTION

main89561-22030198003-198208

main89561-22070198208-198407

main89561-24020198110-198308

main89661-22020198208-198305

main89661-22060198302-198305

main89661-22061198305-198308

main89661-22070198308-198407

main89661-30100198308-198311

main89661-30101198311-198407

main89661-30110198308-198311

main89661-30111198311-198407

89567BRACKET, FUEL INJECTION COMPUTER

main89567-22070198003-198407

main89667-22030198308-198407

89568BRACKET, FUEL INJECTION COMPUTER

main89568-22070198003-198407

main89668-22040198208-198407

main89668-22050198308-198407

89569BRACKET, FUEL INJECTION COMPUTER

main89569-22070198003-198407

main89669-22040198208-198407

main89669-22070198308-198407

9017906162

main90179-06162

9017908012

main90179-08012

9018305002

main90183-05002

9020108084

main90201-08084

9043012005

main90430-12005

9165540616

main91655-40616

9331915008

main93319-15008

9331915010

main93319-15010

9354055016

main93540-55016

21 parts on this diagram · 3 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CRESTA

This section contains 35 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CRESTA. Key components include: FUEL INJECTION SYSTEM, RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, BRACKET, PRESSURE SWITCH, SWITCH, VACUUM.
