EPC Data

Toyota CRESTA — ELECTRONIC CONTROLLED TRANSMISSION

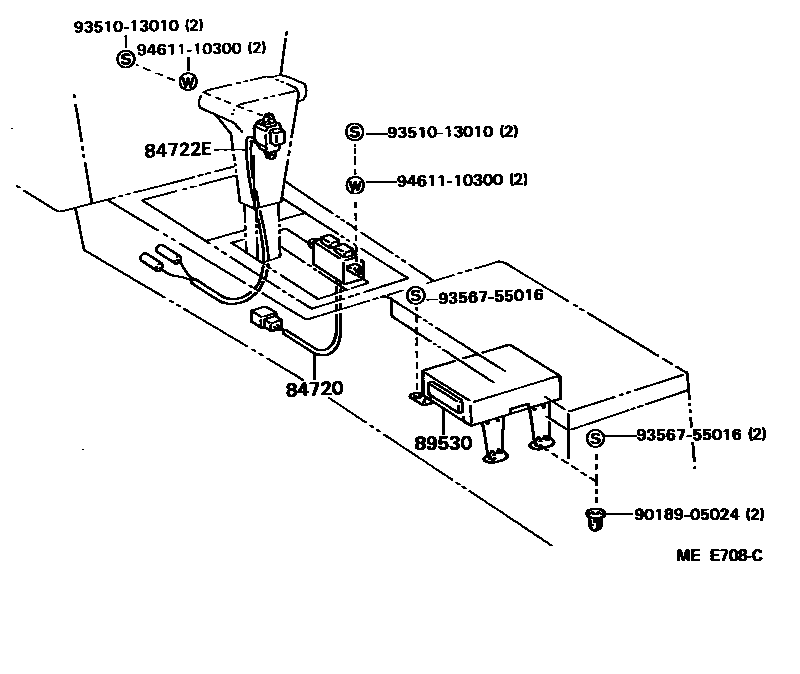

Parts diagram
84720SWITCH ASSY, PATTERN SELECT
main84720-22040i198408-198808
84722ESWITCH, TRANSMISSION CONTROL
main84722-14070-03i198408-198608
GRAY,GRAY,TRIM1#
main84722-14070-12i198408-198608
MAROON,MAROON,TRIM3#
main84722-14070-15i198408-198608
BEIGE,BEIGE,TRIM4#
main84722-14070-25i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main84722-14070-32i198608-198808
MAROON,MAROON,TRIM3#
main84722-14070-34i198608-198808
BLUE,DARK BLUE,TRIM8#
89530COMPUTER ASSY, TRANSMISSION CONTROL
main89530-22100i198408-198608
DENSO
main89530-22110i198408-198608
TEN
main89530-22120i198408-198608
AISIN
main89530-22130i198408-198510
DENSO
main89530-22140i198408-198510
TEN
main89530-22170i198408-198510
AISIN
main89530-22240i198510-198608
DENSO
main89530-22241i198608-198806
main89530-22252i198806-198808
main89530-22330i198608-198806
main89530-22341i198806-198808
9018905024
main90189-05024
9351013010
main93510-13010
9356755016
main93567-55016
9461110300
main94611-10300

7 parts on this diagram · 2 diagrams in section

ELECTRONIC CONTROLLED TRANSMISSION for Toyota CRESTA

This section contains 25 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota CRESTA. Key components include: WIRE, TO SOLENOID (FOR TRANSMISSION), SWITCH ASSY, PATTERN SELECT, SWITCH, TRANSMISSION CONTROL, SOLENOID ASSY, TRANSMISSION, RING, O (FOR TRANSMISSION SOLENOID).
