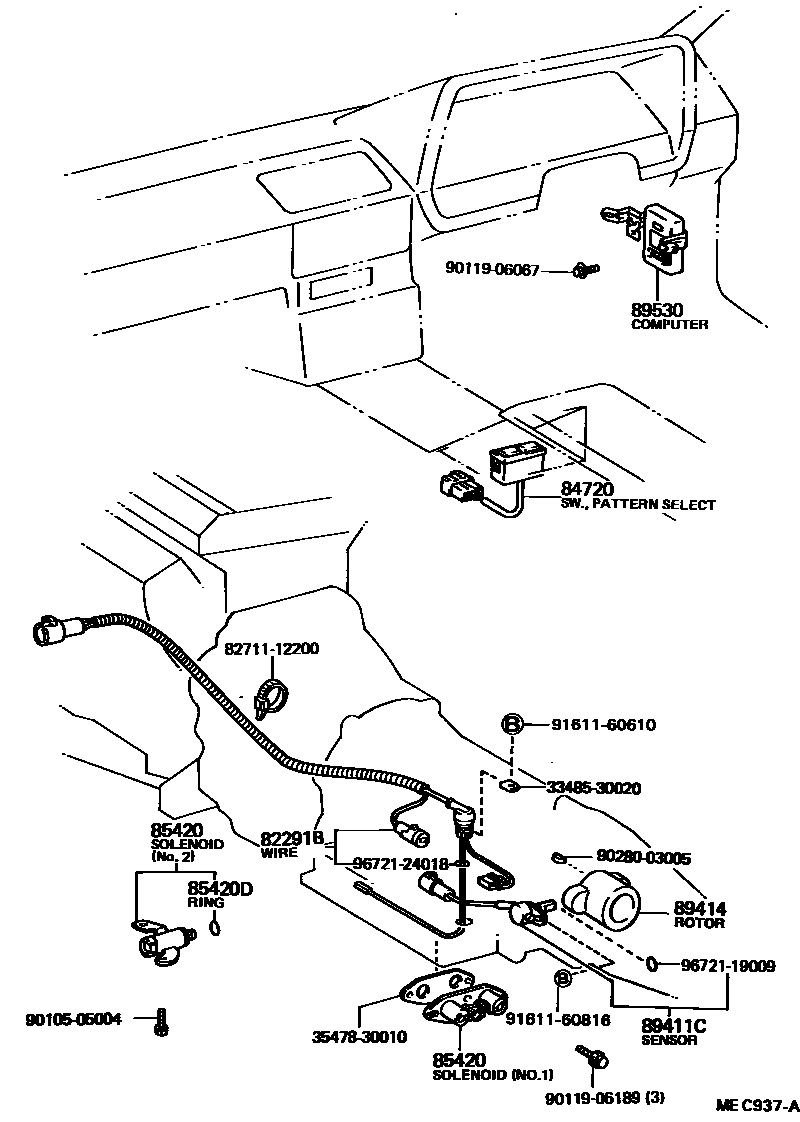

Toyota CRESTA — ELECTRONIC CONTROLLED TRANSMISSION
82291BWIRE, TO SOLENOID (FOR TRANSMISSION)
84720SWITCH ASSY, PATTERN SELECT
85420SOLENOID ASSY, TRANSMISSION
NO.1
NO.2
85420DRING, O (FOR TRANSMISSION SOLENOID)
ID=6
89411CSENSOR, SPEED
89414ROTOR, SENSOR
89530COMPUTER ASSY, TRANSMISSION CONTROL
3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
main33485-30020
3547830010GASKET, ACCUMULATOR COVER
main35478-30010
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9010505004
main90105-05004
9011906067
main90119-06067
9011906189
main90119-06189
9028003005
main90280-03005
9161160610
main91611-60610
9161160816
main91611-60816
9672119009
main96721-19009
9672124018
main96721-24018
18 parts on this diagram · 1 diagram in section
ELECTRONIC CONTROLLED TRANSMISSION for Toyota CRESTA
This section contains 18 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota CRESTA. Key components include: WIRE, TO SOLENOID (FOR TRANSMISSION), SWITCH ASSY, PATTERN SELECT, SOLENOID ASSY, TRANSMISSION, RING, O (FOR TRANSMISSION SOLENOID), SENSOR, SPEED.
