Toyota CRESTA — DISTRIBUTOR

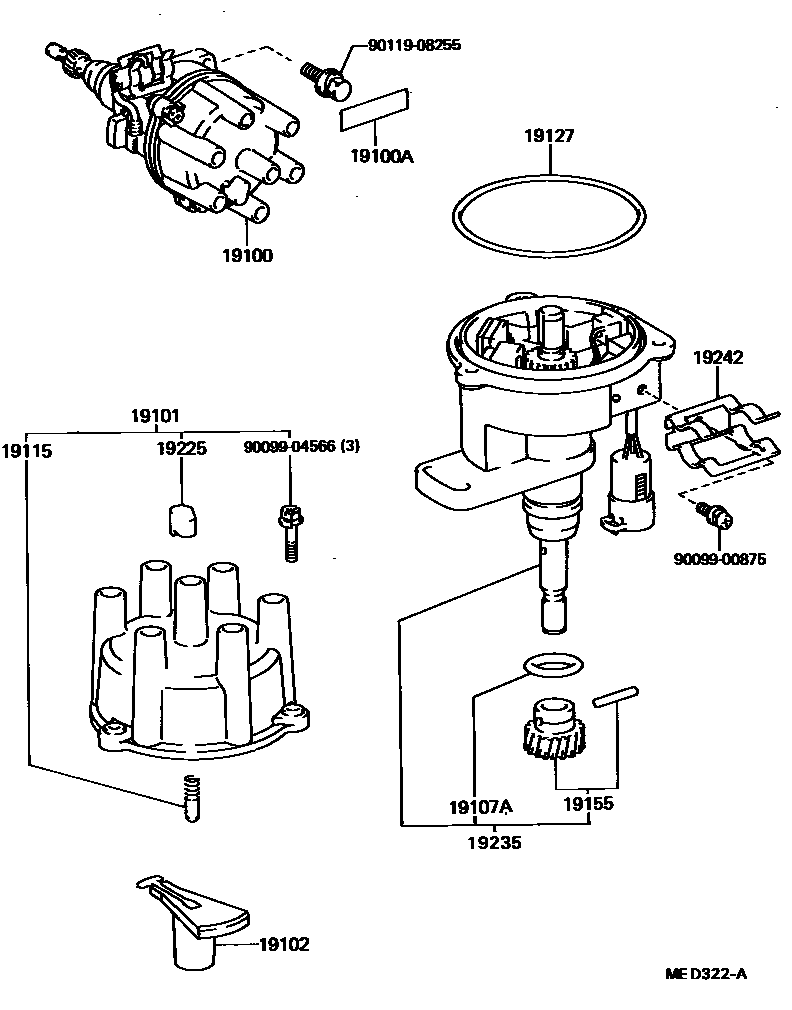

Parts diagram

19100DISTRIBUTOR ASSY

main19030-63080i198408-198808

main19100-41240i198408-198510

main19100-70070i198408-198808

main19100-88301i198408-198608

main19100-88302i198608-198808

main19100-88340i198510-198608

main19100-88341i198608-198808

19100ATAPE, SEALING

main90919-24004i198408-198808

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-41240i198408-198510

main19101-63020i198408-198808

main19101-70011i198408-198808

main19101-88340i198510-198808

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11010i198408-198808

main19102-41240i198408-198510

main19102-43110i198408-198808

main19102-88340i198510-198808

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14018i198408-198808

main90099-14020i198408-198808

main96710-04030i198510-198801

main96711-35030i198801-198808

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198408-198808

main19115-63010×2i198408-198808

main19115-88280i198408-198808

19127PACKING, DUST PROOF

main19127-41141i198510-198808

main19127-45190i198408-198510

main19127-52020i198408-198808

main19127-63080i198408-198808

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-45190i198408-198510

main19195-70010i198408-198808

main19195-88300i198408-198808

main19195-88340i198510-198808

19225CAP, RUBBER

main19225-41140i198408-198808

19235HOUSING, DISTRIBUTOR

main19235-63080i198408-198808

main19235-70070i198408-198808

main19235-88301i198408-198608

main19235-88302i198608-198808

main19235-88341i198510-198808

19242CLAMP, CORD

main19242-43050i198408-198510

main19242-63020i198408-198808

main19242-70070i198408-198808

main19242-88300i198408-198608

9009900875

main90099-00875

9009904566

main90099-04566

9011908255

main90119-08255

14 parts on this diagram · 5 diagrams in section
