Toyota CRESTA — COWL VENTILATOR

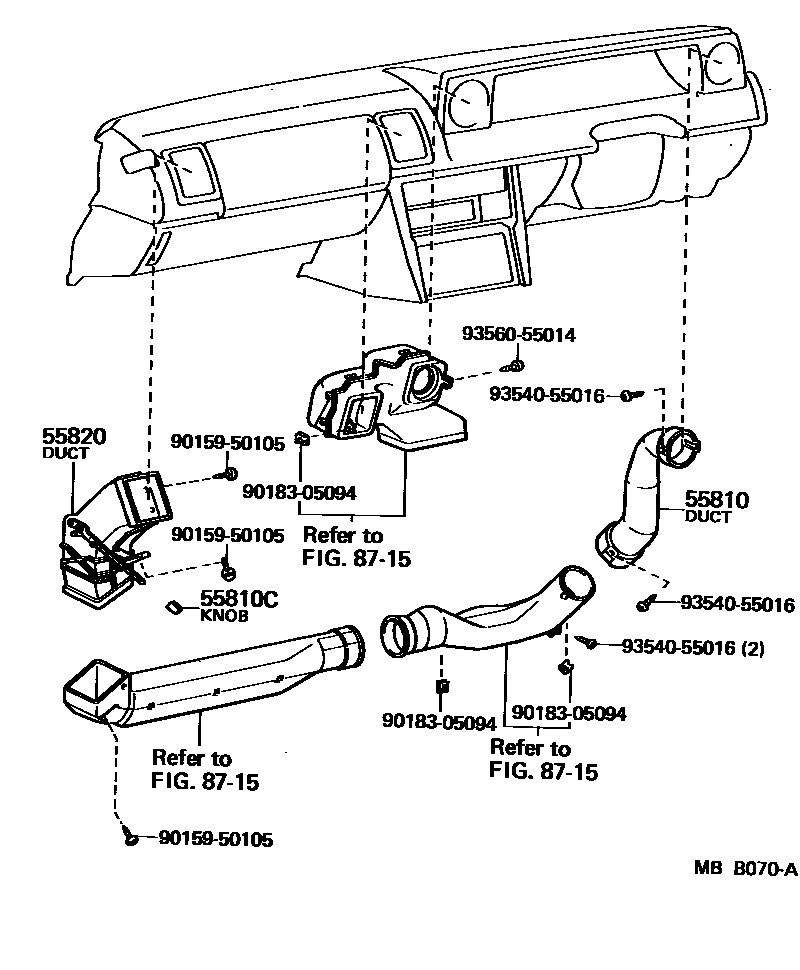

Parts diagram

55810DUCT ASSY, SIDE VENTILATOR, RH

main55084-22010i198003-198407

55810CKNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)

main55804-22020i198003-198407

55820DUCT ASSY, SIDE VENTILATOR, LH

main55087-22030i198003-198407

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9015950105

main90159-50105

9018305094

main90183-05094

9354055016

main93540-55016

9356055014

main93560-55014

8 parts on this diagram · 1 diagram in section

COWL VENTILATOR for Toyota CRESTA

This section contains 8 genuine Toyota parts for the COWL VENTILATOR system of the Toyota CRESTA. Key components include: DUCT ASSY, SIDE VENTILATOR, RH, KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT), DUCT ASSY, SIDE VENTILATOR, LH, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
