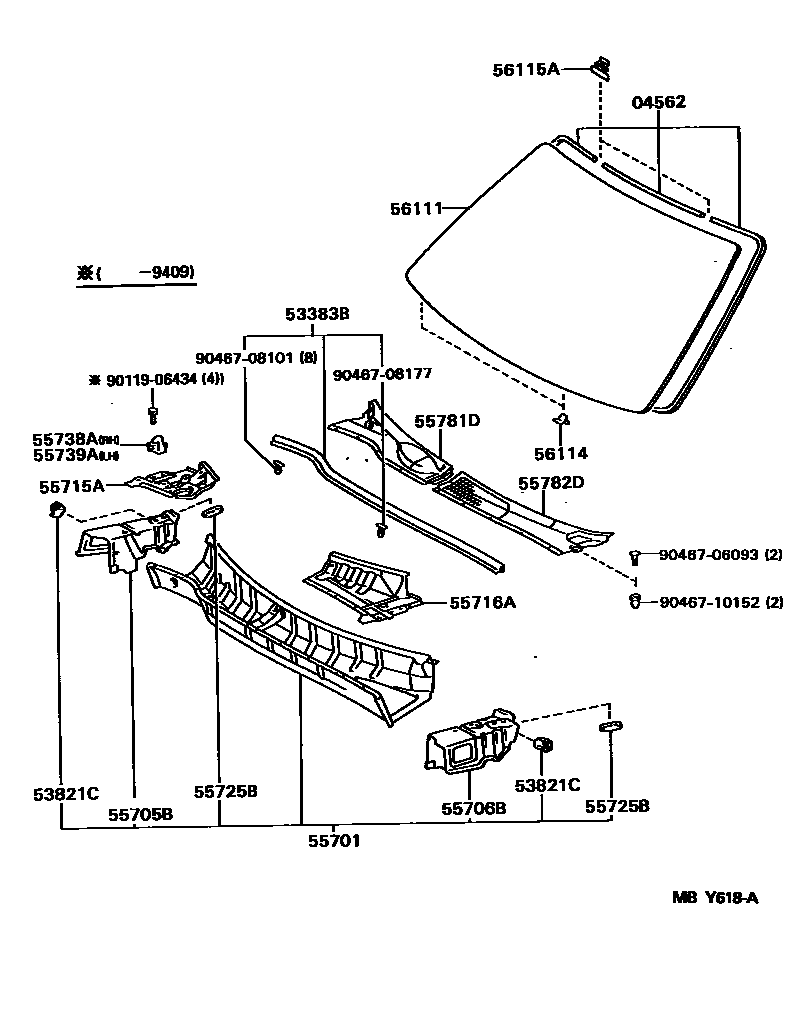

Toyota CRESTA — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-22030iGX90,JZX9#,LX90,SX90199210-199609

sub56117-50130

53383BSEAL, HOOD TO COWL TOP

main53383-22080iGX90,JZX9#,LX90,SX90199210-199609

53821CBRACKET, FRONT FENDER, REAR

main53821-16010iGX90,JZX9#,LX90,SX90199210-199409

55701PANEL SUB-ASSY, COWL

main55700-22840iGX90,JZX9#199210-199609

main55700-2A080iSX90199210-199609

main55700-2A090iLX90199210-199609

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-22030iGX90,JZX9#,LX90,SX90199210-199609

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-22020iGX90,JZX9#,LX90,SX90199210-199609

55715ABRACE, COWL TOP TO APRON, RH

main55715-22090iGX90,JZX9#,LX90,SX90199210-199609

55716ABRACE, COWL TOP TO APRON, LH

main55716-22080iGX90,JZX9#,LX90,SX90199210-199609

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010iGX90,JZX9#,LX90,SX90199210-199409

55738ASTOPPER, HOOD, RH

main55738-22050iGX90,JZX9#,LX90,SX90199210-199609

55739ASTOPPER, HOOD, LH

main55739-22040iGX90,JZX9#,LX90,SX90199210-199609

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-22220iGX90,JZX9#,LX90,SX90199210-199609

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-22120iGX90,JZX9#,LX90,SX90199210-199609

56111GLASS, WINDSHIELD

main56111-0W140iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199401-199609

sub56111-22740

main56111-22730iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199301-199408

main56111-22880iLX90,SX90..SC199210-199408

main56111-22881iLX90,SX90..SC199408-199609

main56111-22890iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199408

main56111-22891iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199408-199609

main56111-2A010iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199301

main56111-2A020iGX90,JZX9#,LX90,SX90199210-199408

main56111-2A021iGX90,JZX9#,LX90,SX90199408-199604

main56111-2A030iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199408

main56111-2A031iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199408-199602

main56111-2A080iGX90,JZX9#,LX90,SX90199604-199609

main56111-2A090iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199602-199609

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iGX90,JZX9#,LX90,SX90199210-199609

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22040×2iGX90,JZX9#,LX90,SX90199210-199409

9011906434

main90119-06434

9046706093

main90467-06093

9046708101

main90467-08101

9046708177

main90467-08177

9046710152

main90467-10152

21 parts on this diagram · 1 diagram in section
