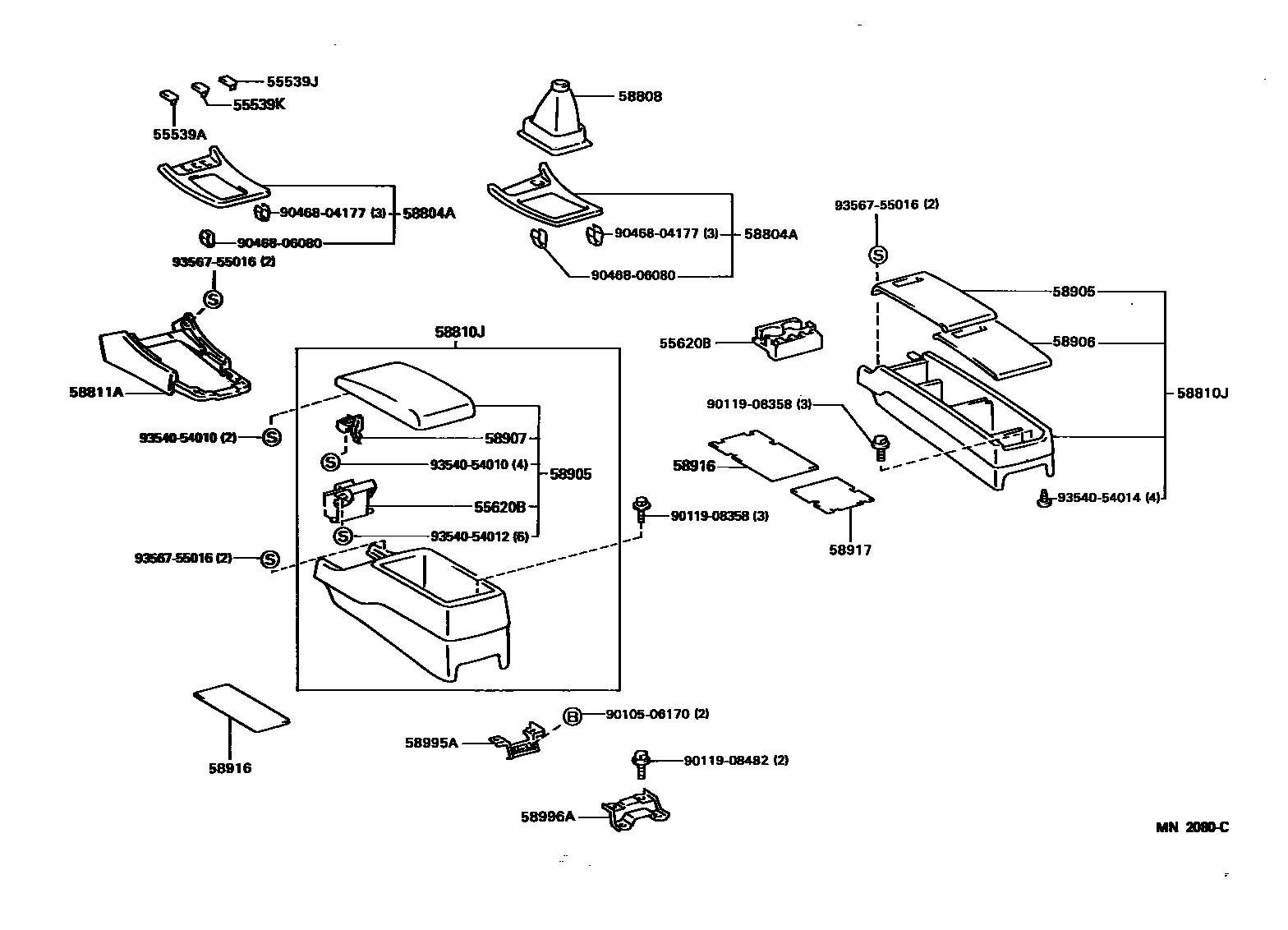

Toyota CRESTA — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-22110iLX90,SX90199210-199409

main55539-22120iLX90..SUF199304-199309

main55539-22130iJZX90..SLT199304-199309

main55539-22140iLX90,SX90..SUF199409-199609

main55539-22150iGX90,JZX90,93..SLT,SLTG,TOUS199409-199609

55539JCOVER, SPARE SWITCH HOLE

main55539-22110iLX90,SX90..SC199409-199609

main55539-22120iLX90..ATM..SUF199304-199309

main55539-22140iLX90,SX90..ATM..SUF199409-199609

main55539-22150iLX90..ATM..SUF199412-199609

55539KCOVER, SPARE SWITCH HOLE

main55539-22110iLX90,SX90..ATM199210-199409

main55539-22120iGX90,JZX90..ATM..(SLT,TOUS,TOUV)199210-199310

main55539-22130iJZX90..ATM;JZX93..SLTG199310-199409

main55539-22140iLX90,SX90..ATM..SUF199409-199609

main55539-22150iGX90,JZX90,93..ATM199409-199609

55620BHOLDER, INSTRUMENT PANEL CUP

main55618-22030iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

main55620-22030-E0iLX90,SX90..SC;GX90,LX90,SX90..MTM..(SLT,SUF)199210-199609

SABLE,TRIM4#

main55620-22030-G0iJZX90..TOUS,TOUV;GX90,LX90,SX90..MTM..(SLT,SUF)199210-199609

JADE,TRIM6#

main55620-22030-J0iJZX90,LX90,SX90..SC,TOUS,TOUV;GX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

GRAYISH BLUE,TRIM8#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-22060iLX90,SX90..MTM199210-199409

main58804-22070iGX90..MTM199310-199409

main58804-22080iLX90,SX90..SC199409-199609

main58804-22090iLX90..ATM..SUF199304-199309

main58804-22100iJZX90..SLT199304-199309

main58804-22110iJZX90..MTM199310-199409

main58804-22120iLX90,SX90..MTM199409-199609

main58804-22130iLX90,SX90..ATM..SUF199409-199609

main58804-22140iLX90..ATM..SUF199412-199609

main58804-22150iGX90,JZX90..MTM199409-199609

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22110-C0iJZX90..MTM199210-199609

BLACK,TRIM6#,8#

main58808-22110-E0iGX90,LX90,SX90..MTM199210-199609

SABLE,TRIM4#

main58808-22110-G0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199609

JADE,TRIM6#

main58808-22110-J0iGX90,LX90,SX90..MTM199210-199409

GRAYISH BLUE,TRIM8#

58810JBOX ASSY, CONSOLE

main58810-22430-E0iLX90,SX90..SC199210-199609

SABLE,TRIM4#

sub58810-22930

sub93540-54012

main58810-22430-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

sub58810-22930

sub93540-54012

main58810-22460-E0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

SABLE,TRIM4#

main58810-22460-G0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

JADE,TRIM6#

main58810-22460-J0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

GRAYISH BLUE,TRIM8#

main58810-22470-G0iJZX90..TOUS,TOUV199210-199409

JADE,TRIM6#

main58810-22470-J0iJZX90..TOUS,TOUV199210-199409

GRAYISH BLUE,TRIM8#

main58810-22480-E0iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

SABLE,TRIM4#

main58810-22480-G0iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

JADE,TRIM6#

main58810-22480-J0iGX90,JZX90,91,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199409

GRAYISH BLUE,TRIM8#

main58810-22510-E0iGX90,LX90,SX90..MTM199409-199609

SABLE,TRIM4#

sub58810-22930

sub93540-54012

main58810-22510-G0iGX90,LX90,SX90..MTM199409-199609

JADE,TRIM6#

sub58810-22930

sub93540-54012

main58810-22520-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

sub58810-22930

sub93540-54012

main58810-22520-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

sub58810-22930

sub93540-54012

58811ABOX, CONSOLE, FRONT

main58811-22220-E0iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

SABLE,TRIM4#

main58811-22220-G0iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

JADE,TRIM6#

main58811-22220-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22210-E0iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

SABLE,TRIM4#

main58905-22210-G0iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

JADE,TRIM6#

main58905-22210-J0iGX90,JZX90,91,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199409

GRAYISH BLUE,TRIM8#

main58905-22270-E0iLX90,SX90..SC199210-199609

SABLE,TRIM4#

main58905-22270-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main58905-22300-E0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

BEIGE,TRIM4#

main58905-22300-G0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

JADE,TRIM6#

main58905-22300-J0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

GRAYISH BLUE,TRIM8#

main58905-22310-G0iJZX90..TOUS,TOUV199210-199409

JADE,TRIM6#

main58905-22310-J0iJZX90..TOUS,TOUV199210-199409

GRAYISH BLUE,TRIM8#

main58905-22340-E0iGX90,LX90,SX90..MTM199409-199609

BEIGE,TRIM4#

sub58905-22320

main58905-22340-G0iGX90,LX90,SX90..MTM199409-199609

JADE,TRIM6#

sub58905-22320

main58905-22350-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

sub58905-22390

main58905-22350-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

sub58905-22390

58906DOOR SUB-ASSY, UPPER CONSOLE

main58906-22050-E0iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

SABLE,TRIM4#

main58906-22050-G0iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

JADE,TRIM6#

main58906-22050-J0iGX90,JZX90,91,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199409

GRAYISH BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-22020×2iJZX90,LX90,SX90..SC,TOUS,TOUV;GX90,LX90,SX90..MTM..(SLT,SUF)199210-199609

58916MAT, BOX BOTTOM

main58916-22080iJZX90,LX90,SX90..SC,TOUS,TOUV;GX90,LX90,SX90..MTM..(SLT,SUF)199210-199609

main58916-22090iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

58917MAT, BOX BOTTOM, NO.2

main58917-22040iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199609

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-22020iGX90,JZX90,LX90,SX90..MTM199210-199609

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-22060iGX90,JZX9#,LX90,SX90199210-199609

9010506170

main90105-06170

9011908358

main90119-08358

9011908482

main90119-08482

9046804177

main90468-04177

9046806080

main90468-06080

9354054010

main93540-54010

9354054012

main93540-54012

9354054014

main93540-54014

9356755016

main93567-55016

24 parts on this diagram · 1 diagram in section
