Toyota CRESTA — CONSOLE BOX & BRACKET

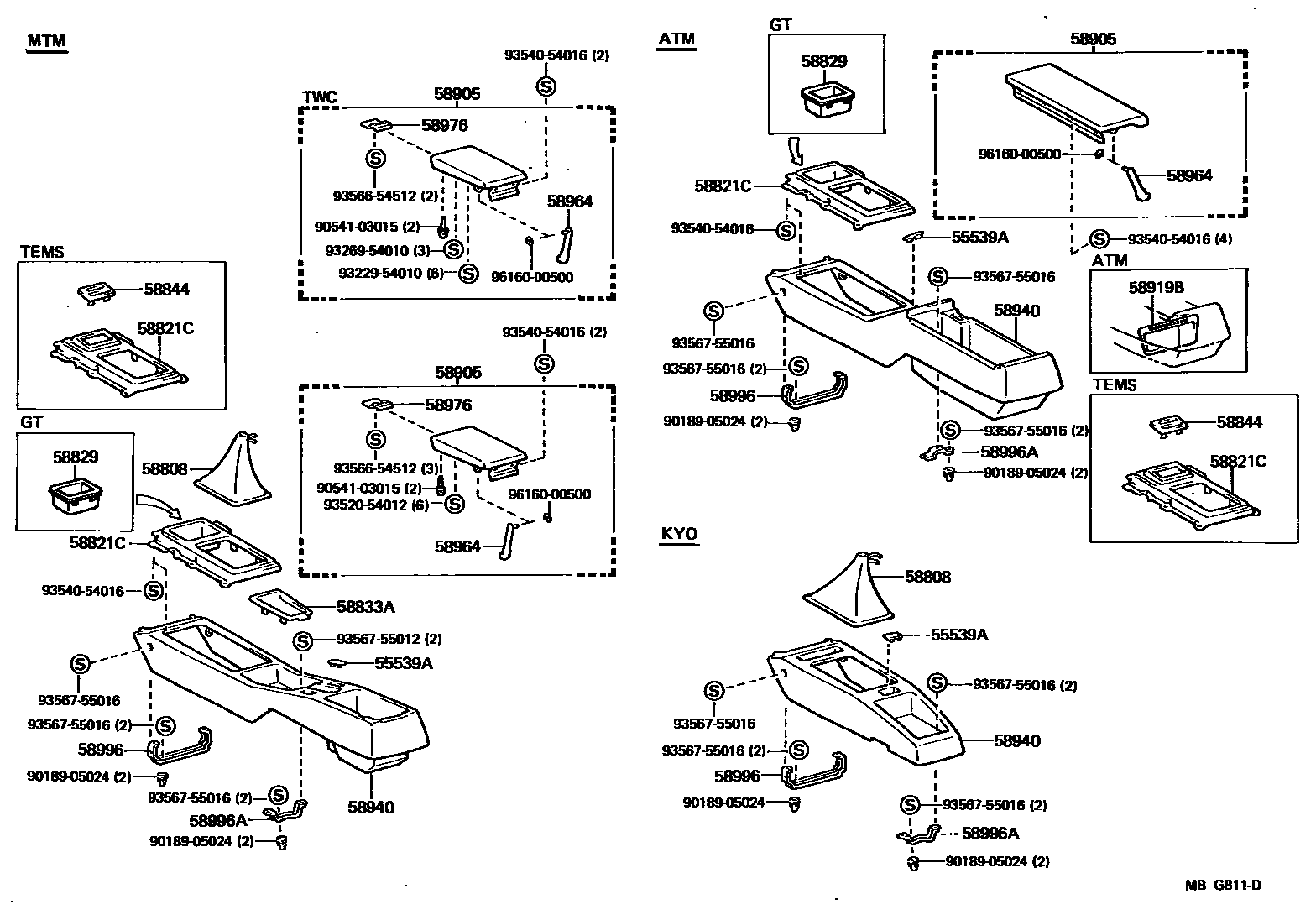

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-24010-05×2i198408-198608
BEIGE,BEIGE,TRIM4#
sub55539-32010
sub55539-14030
sub55539-20030
main55539-24010-15×2i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub55539-32010
sub55539-14030
sub55539-20030
main55539-24010-22×2i198408-198808
MAROON,RED/MAROON,TRIM3#
sub55539-32010
sub55539-14030
sub55539-20030
main55539-24010-33×2i198408-198608
GRAY,COOL GRAY,TRIM1#
sub55539-32010
sub55539-14030
sub55539-20030
main55539-24010-44×2i198608-198808
BLUE,DARK BLUE,TRIM8#
sub55539-32010
sub55539-14030
sub55539-20030
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-22070-02i198408-198808
MAROON,MAROON,TRIM3#
main58808-22070-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58808-22070-04i198608-198808
BLUE,DARK BLUE,TRIM8#
main58808-22070-05i198408-198608
BEIGE,BEIGE,TRIM4#
main58808-22070-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58808-22080-02i198408-198808
MAROON,MAROON,TRIM3#
main58808-22080-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58808-22080-04i198608-198808
BLUE,DARK BLUE,TRIM8#
main58808-22080-05i198408-198608
BEIGE,BEIGE,TRIM4#
main58808-22080-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
58821CPANEL, CONSOLE, UPPER
main58821-22080-02i198408-198808
MAROON,RED,TRIM3#
main58821-22080-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58821-22080-04i198608-198808
BLUE,DARK BLUE,TRIM8#
main58821-22080-05i198408-198608
BEIGE,BEIGE,TRIM4#
main58821-22080-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58821-22090-02i198408-198601
MAROON,RED,TRIM3#
main58821-22090-03i198408-198601
GRAY,COOL GRAY,TRIM1#
main58821-22090-05i198408-198601
BEIGE,BEIGE,TRIM4#
main58821-22091-02i198601-198808
MAROON,MAROON,TRIM3#
main58821-22091-03i198601-198608
GRAY,COOL GRAY,TRIM1#
main58821-22091-04i198608-198808
BLUE,DARK BLUE,TRIM8#
main58821-22091-05i198601-198608
BEIGE,BEIGE,TRIM4#
main58821-22091-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58821-22100-02i198408-198808
W/TEMS,MAROON,RED,TRIM3#
main58821-22100-03i198408-198608
W/TEMS,GRAY,COOL GRAY,TRIM1#
main58821-22100-04i198608-198808
W/TEMS,BLUE,DARK BLUE,TRIM8#
main58821-22100-05i198408-198608
W/TEMS,BEIGE,BEIGE,TRIM4#
main58821-22100-15i198608-198808
W/TEMS,BEIGE,DARK BEIGE,TRIM4#
58829POCKET, CONSOLE BOX
main58825-22020-02i198510-198808
MAROON,MAROON,TRIM3#
sub58825-22010
main58825-22020-03i198510-198608
GRAY,COOL GRAY,TRIM1#
sub58825-22010
main58825-22020-04i198608-198808
BLUE,DARK BLUE,TRIM8#
sub58825-22010
main58825-22020-05i198510-198608
BEIGE,BEIGE,TRIM4#
sub58825-22010
main58825-22020-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub58825-22010
58833ACOVER, CONSOLE, UPPER
main58833-22060-02i198408-198808
MAROON,RED,TRIM3#
main58833-22060-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58833-22060-04i198608-198808
BLUE,DARK BLUE,TRIM8#
main58833-22060-05i198408-198608
BEIGE,BEIGE,TRIM4#
main58833-22060-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
58844BEZEL, CONSOLE BOX
main58844-22040i198408-198808
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-22050-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58905-22050-04i198612-198808
*30,BLUE,DARK BLUE,TRIM8#
main58905-22050-12i198408-198808
MAROON,MAROON,TRIM3#
main58905-22050-15i198408-198608
BEIGE,BEIGE,TRIM4#
main58905-22050-25i198612-198808
*30,BEIGE,DARK BEIGE,TRIM4#
main58905-22060-02i198408-198608
MAROON,MAROON,TRIM3#
main58905-22060-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58905-22060-05i198408-198608
BEIGE,BEIGE,TRIM4#
main58905-22070-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58905-22070-04i198608-198808
BLUE,DARK BLUE,TRIM8#
main58905-22070-12i198408-198808
MAROON,MAROON,TRIM3#
main58905-22070-15i198408-198608
BEIGE,BEIGE,TRIM4#
main58905-22070-25i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58905-22080-02i198408-198608
MAROON,MAROON,TRIM3#
main58905-22080-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58905-22080-05i198408-198608
BEIGE,BEIGE,TRIM4#
main58905-22081-02i198608-198808
MAROON,MAROON,TRIM3#
main58905-22081-04i198705-198808
EXCCED,BLUE,DARK BLUE,TRIM8#
main58905-22081-05i198711-198808
EXCCED,BEIGE,DARK BEIGE,TRIM4#
main58905-22110-02i198608-198808
MAROON,MAROON,TRIM3#
main58905-22110-04i198705-198808
EXCCED,BLUE,DARK BLUE,TRIM8#
main58905-22110-05i198711-198808
EXCCED,BEIGE,DARK BEIGE,TRIM4#
58919BPLATE, CONSOLE BOX
main58919-22010×3i198608-198808
58940CONSOLE ASSY, REAR
main58801-22150-02i198612-198808
*30,MAROON,RED,TRIM3#
main58801-22150-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58801-22150-04i198612-198808
*30,BLUE,DARK BLUE,TRIM8#
main58801-22150-05i198612-198808
*30,BEIGE,BEIGE,TRIM4#
main58801-22150-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main58801-22160-02i198408-198601
MAROON,RED,TRIM3#
main58801-22160-03i198408-198601
GRAY,COOL GRAY,TRIM1#
main58801-22160-05i198408-198601
BEIGE,BEIGE,TRIM4#
main58801-22161-02i198601-198608
MAROON,RED,TRIM3#
main58801-22161-03i198601-198608
GRAY,COOL GRAY,TRIM1#
main58801-22161-05i198601-198608
BEIGE,BEIGE,TRIM4#
main58801-22200-02i198608-198808
MAROON,MAROON,TRIM3#
sub58801-22250
main58801-22200-04i198608-198808
BLUE,DARK BLUE,TRIM8#
sub58801-22250
main58801-22200-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub58801-22250
main58811-22160-03i198408-198608
GRAY,COOL GRAY,TRIM1#
main58811-22160-04i198608-198808
BLUE,DARK BLUE,TRIM8#
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-22030i198408-198808
main58964-30030i198408-198808
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
main58976-22020i198408-198808
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-22010i198408-198808
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-22030i198408-198808
main58996-22040i198408-198808
9018905024
main90189-05024
9054103015
main90541-03015
9322954010
main93229-54010
9326954010
main93269-54010
9352054012
main93520-54012
9354054016
main93540-54016
9356654512
main93566-54512
9356755012
main93567-55012
9356755016
main93567-55016
9616000500
main96160-00500

23 parts on this diagram · 1 diagram in section
