Toyota CRESTA — CONSOLE BOX & BRACKET

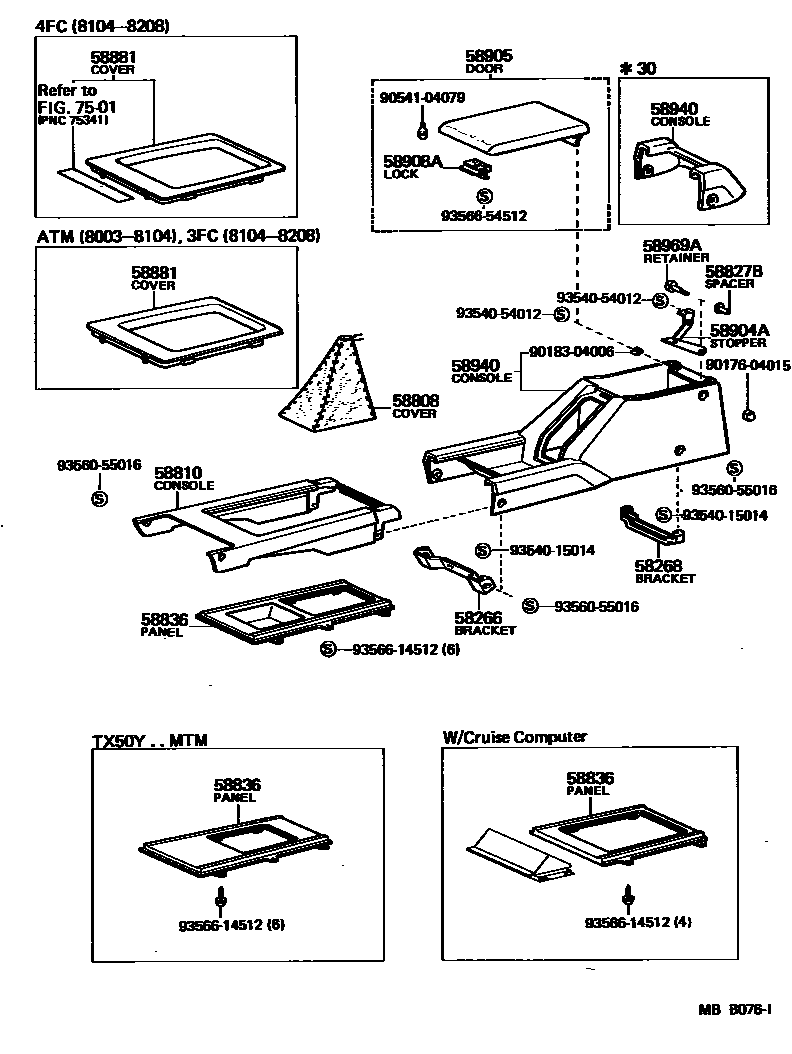

Parts diagram
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
main58996-22010i198003-198407
58268BRACKET, CONSOLE BOX SUPPORT, REAR
main58853-22020i198003-198407
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-22050-01i198003-198011
BLACK,BLACK,TRIM2#
main58808-22050-04i198003-198011
BLUE,BLUE,TRIM8#
main58808-22050-06i198003-198011
D-BROWN,BROWN,TRIM4#
main58808-22060-01i198011-198208
BLACK,BLACK,TRIM2#
main58808-22060-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58808-22060-04i198011-198208
BLUE,BLUE,TRIM8#
main58808-22060-06i198011-198407
D-BROWN,BROWN,TRIM4#
main58808-22060-14i198208-198407
BLUE,BLUE,TRIM8#
58810CONSOLE ASSY
main58811-22120-01i198003-198208
BLACK,BLACK,TRIM2#
main58811-22120-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58811-22120-04i198003-198208
BLUE,BLUE,TRIM8#
main58811-22120-05i198003-198208
GREIGE,BEIGE,TRIM4#
main58811-22120-06i198208-198407
D-BROWN,BROWN,TRIM4#
main58811-22120-14i198208-198407
BLUE,BLUE,TRIM8#
58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER
main58967-22010i198003-198208
58836PANEL, CONSOLE, UPPER FRONT
main58821-22010i198003-198208
main58821-22020i198003-198208
sub58821-22060
main58821-22030i198003-198208
W/CRUISE COMPUTER
main58821-22040i198208-198407
main58821-22050i198208-198407
main58821-22070i198208-198407
W/CRUISE COMPUTER
58881COVER, SHIFTING HOLE
main58841-22040i198104-198208
main58841-22050i198104-198208
main58841-22070i198104-198208
W/2 WAY OVER DRIVE
main58841-22080i198208-198407
main58841-22090i198208-198407
main58841-22101i198302-198407
58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58904-22020i198003-198208
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-22020-01i198003-198208
BLACK,BLACK,TRIM2#
main58905-22020-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58905-22020-04i198003-198208
BLUE,BLUE,TRIM8#
main58905-22020-05i198003-198208
GREIGE,BEIGE,TRIM4#
main58905-22020-06i198208-198407
D-BROWN,BROWN,TRIM4#
main58905-22020-14i198208-198407
BLUE,BLUE,TRIM8#
main58905-22040-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58905-22040-06i198208-198407
D-BROWN,BROWN,TRIM4#
main58905-22040-14i198208-198407
BLUE,BLUE,TRIM8#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-22010i198003-198208
58940CONSOLE ASSY, REAR
main58901-22020-01i198003-198208
BLACK,BLACK,TRIM2#
main58901-22020-04i198003-198208
BLUE,BLUE,TRIM8#
main58901-22020-05i198003-198208
GREIGE,BEIGE,TRIM4#
main58901-22070-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58901-22070-06i198208-198407
D-BROWN,BROWN,TRIM4#
main58901-22070-14i198208-198407
BLUE,BLUE,TRIM8#
main58911-22060-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main58911-22060-06i198208-198407
D-BROWN,BROWN,TRIM4#
main58911-22060-14i198208-198407
BLUE,BLUE,TRIM8#
main58923-22010-02i198208-198407
*30,DEEP MAROON,RED/MAROON,TRIM3#
main58923-22010-06i198208-198407
*30,D-BROWN,BROWN,TRIM4#
main58923-22010-14i198208-198407
*30,BLUE,BLUE,TRIM8#
58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER
main58969-20010i198003-198208
7501
9017604015
main90176-04015
9018304006
main90183-04006
9054104079
main90541-04079
9354015014
main93540-15014
9354054012
main93540-54012
9356055016
main93560-55016
9356614512
main93566-14512
9356654512
main93566-54512

21 parts on this diagram · 2 diagrams in section
