Toyota CRESTA — BATTERY & BATTERY CABLE

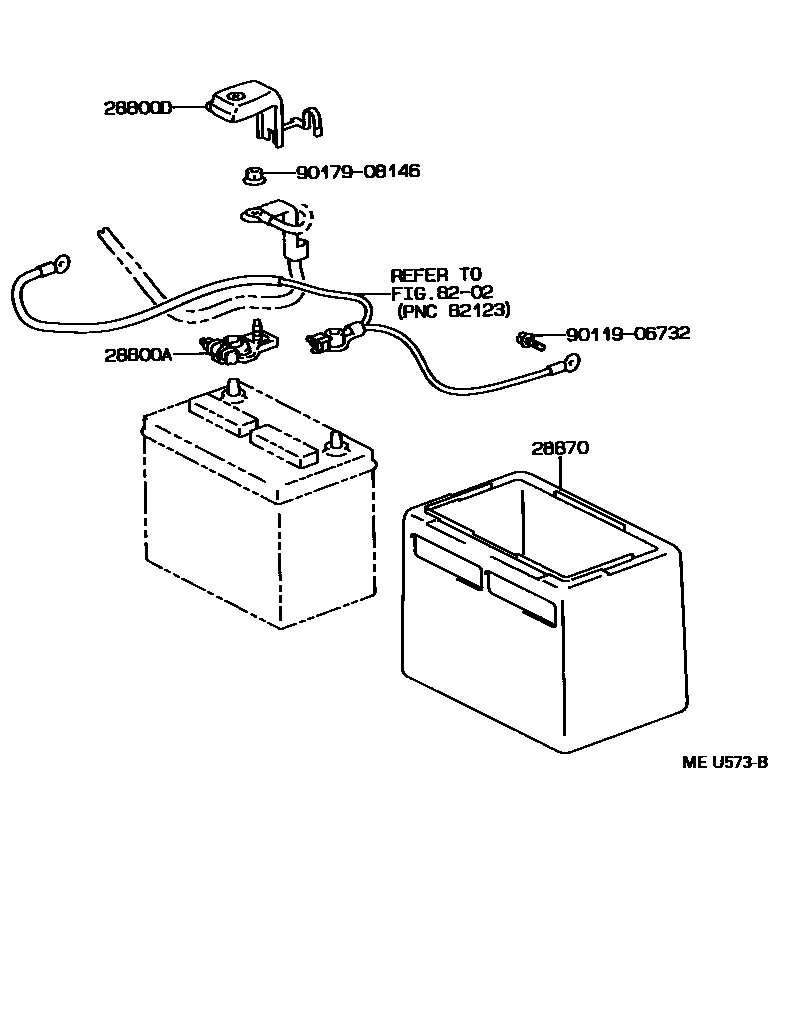

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i199210-199409

main90982-05030i199210-199409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i199210-199609

28870INSULATOR ASSY, BATTERY

main28870-46040i199210-199409

main28870-54010i199210-199409

main28870-54020i199210-199409

main28870-70010i199210-199409

main28870-74010i199210-199409

main28899-46050i199409-199609

main28899-46060i199409-199509

main28899-54050i199409-199609

main28899-54060i199409-199609

main28899-74140i199409-199609

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906732

main90119-06732

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CRESTA

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CRESTA. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), INSULATOR ASSY, BATTERY, WIRING & CLAMP.
