Toyota CRESTA — BATTERY & BATTERY CABLE

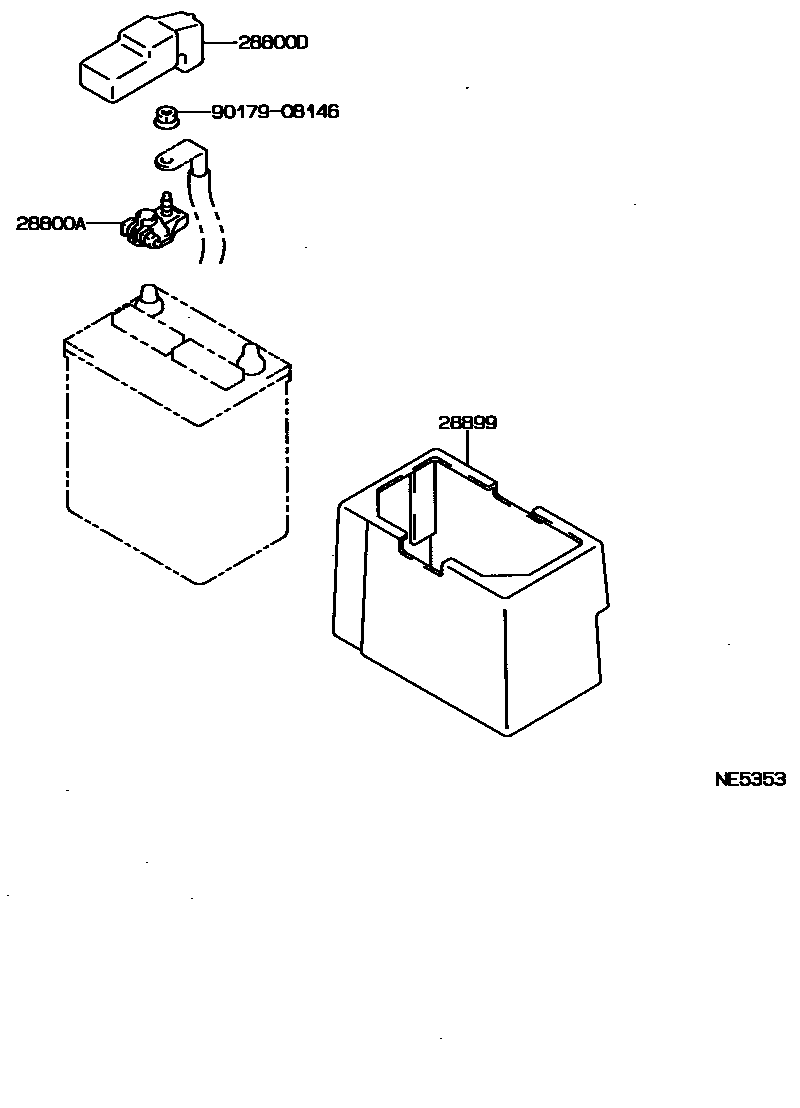

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i198808-199210

main90982-05030i198808-198904

main90982-05034i198810-199210

main90982-05035i198904-199008

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i198808-199210

28899INSULATOR, BATTERY

main28899-42050i198808-199210

main28899-54010i198808-199210

main28899-54020i198808-199210

main28899-70030i198808-199210

main28899-70040i198808-199210

main28899-70050i198808-199210

9017908146

main90179-08146

4 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CRESTA

This section contains 4 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CRESTA. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), INSULATOR, BATTERY.
