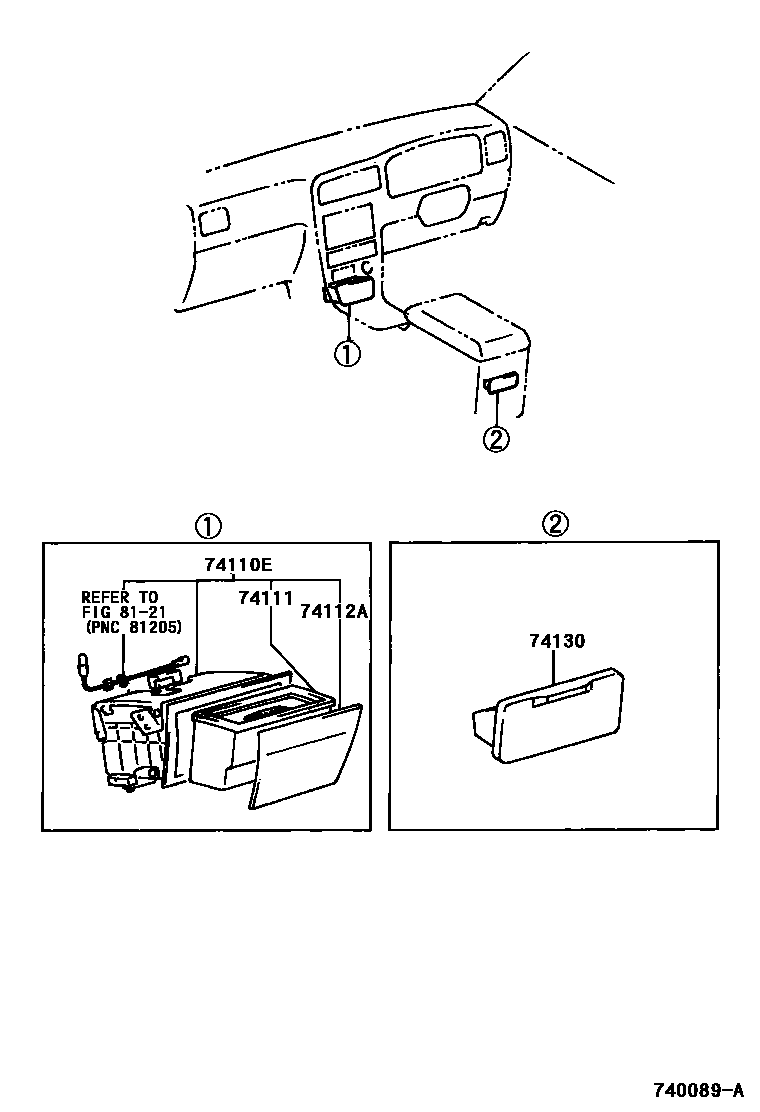

Toyota CRESTA — ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-22120i199609-199808

main74110-22140i199609-199808

main74110-22150i199609-200106

main74110-22160i199808-200106

74111BOX, FRONT ASH RECEPTACLE

main74111-22180i199609-200106

74112ADOOR, FRONT ASH RECEPTACLE

main74112-22100i199609-199808

main74112-22110i199609-199808

main74112-22120i199609-200106

main74112-22140i199808-200106

74130RECEPTACLE ASSY, REAR ASH

main74130-22160-B0i199609-199808

DK. BLUE GRAY,TRIM1#

main74130-22160-C0i199808-200106

BLACK,TRIM2#

main74130-22160-E0i199609-200106

ORCHID BROWN,TRIM4#

main74130-22160-G0i199609-200106

DK. SAGE,TRIM6#

8121INTERIOR LAMP

→ Go to FIG 81-21

5 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota CRESTA

This section contains 5 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota CRESTA. Key components include: RECEPTACLE ASSY, FRONT ASH, BOX, FRONT ASH RECEPTACLE, DOOR, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, INTERIOR LAMP.
