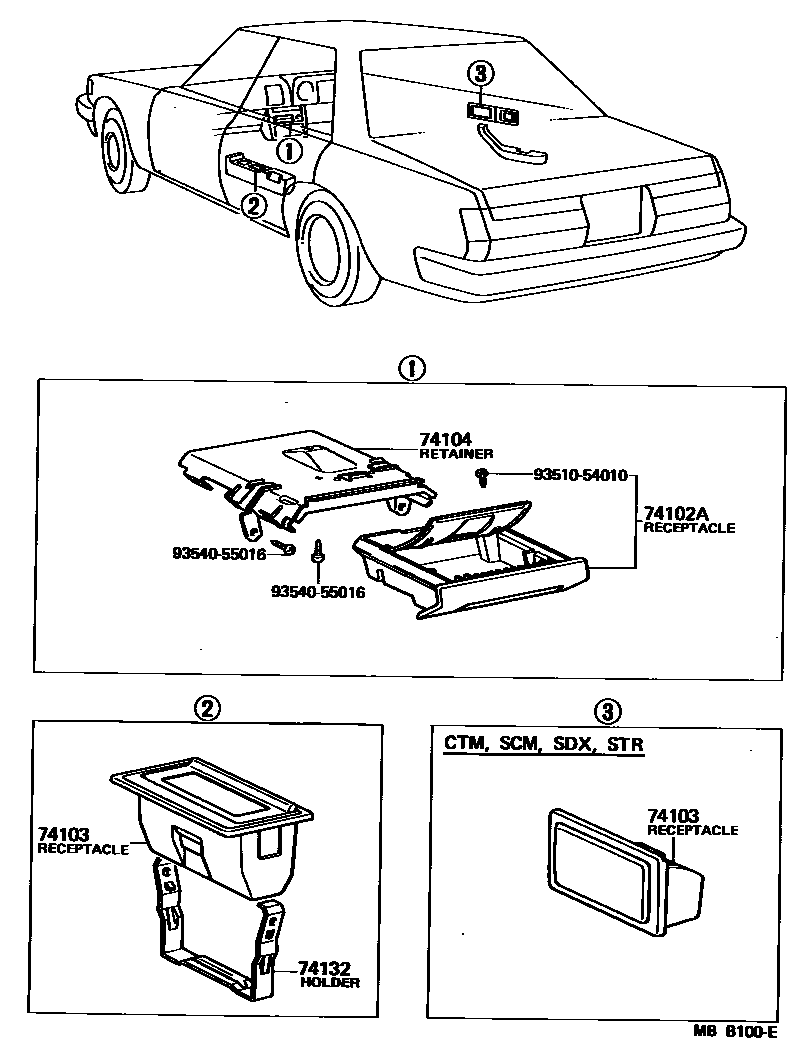

Toyota CRESTA — ASH RECEPTACLE
74102ARECEPTACLE ASSY, FRONT ASH
74103RECEPTACLE SUB-ASSY, ASH, NO.1
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
W/*PW
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74132HOLDER, REAR ASH RECEPTACLE
9351054010
main93510-54010
9354055016
main93540-55016
6 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota CRESTA
This section contains 6 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota CRESTA. Key components include: RECEPTACLE ASSY, FRONT ASH, RECEPTACLE SUB-ASSY, ASH, NO.1, RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1, HOLDER, REAR ASH RECEPTACLE.
