Toyota CRESTA — ARMREST & VISOR

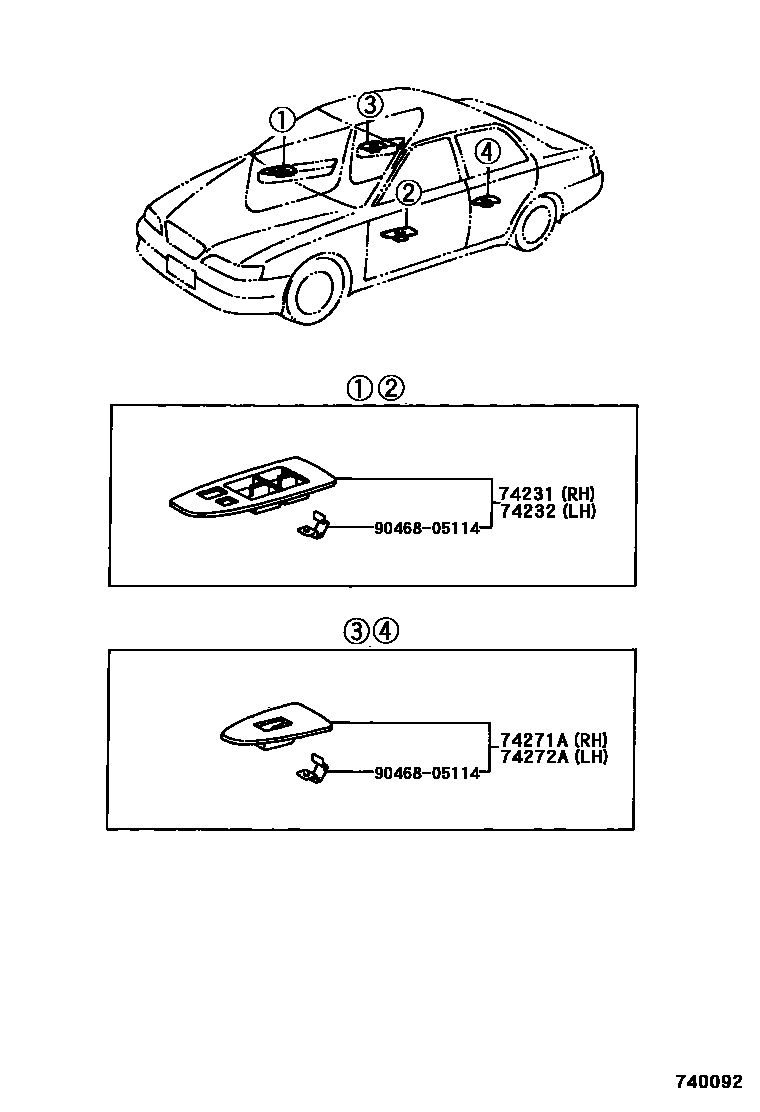

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22300i199609-199808

main74231-22310i199609-199808

main74231-22320i199609-200106

main74231-22340i200002-200004

main74231-22340i199808-200106

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22230i199609-199808

main74232-22240i199609-199808

main74232-22250i199609-200106

main74232-22270i199808-200106

main74232-22270i200002-200004

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-22170i199609-199808

main74271-22180i199609-199808

main74271-22190i199609-200106

main74271-22210i200002-200004

main74271-22210i199808-200106

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-22170i199609-199808

main74272-22180i199609-199808

main74272-22190i199609-200106

main74272-22210i199808-200106

main74272-22210i200002-200004

9046805114

main90468-05114

5 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CRESTA

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CRESTA. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
