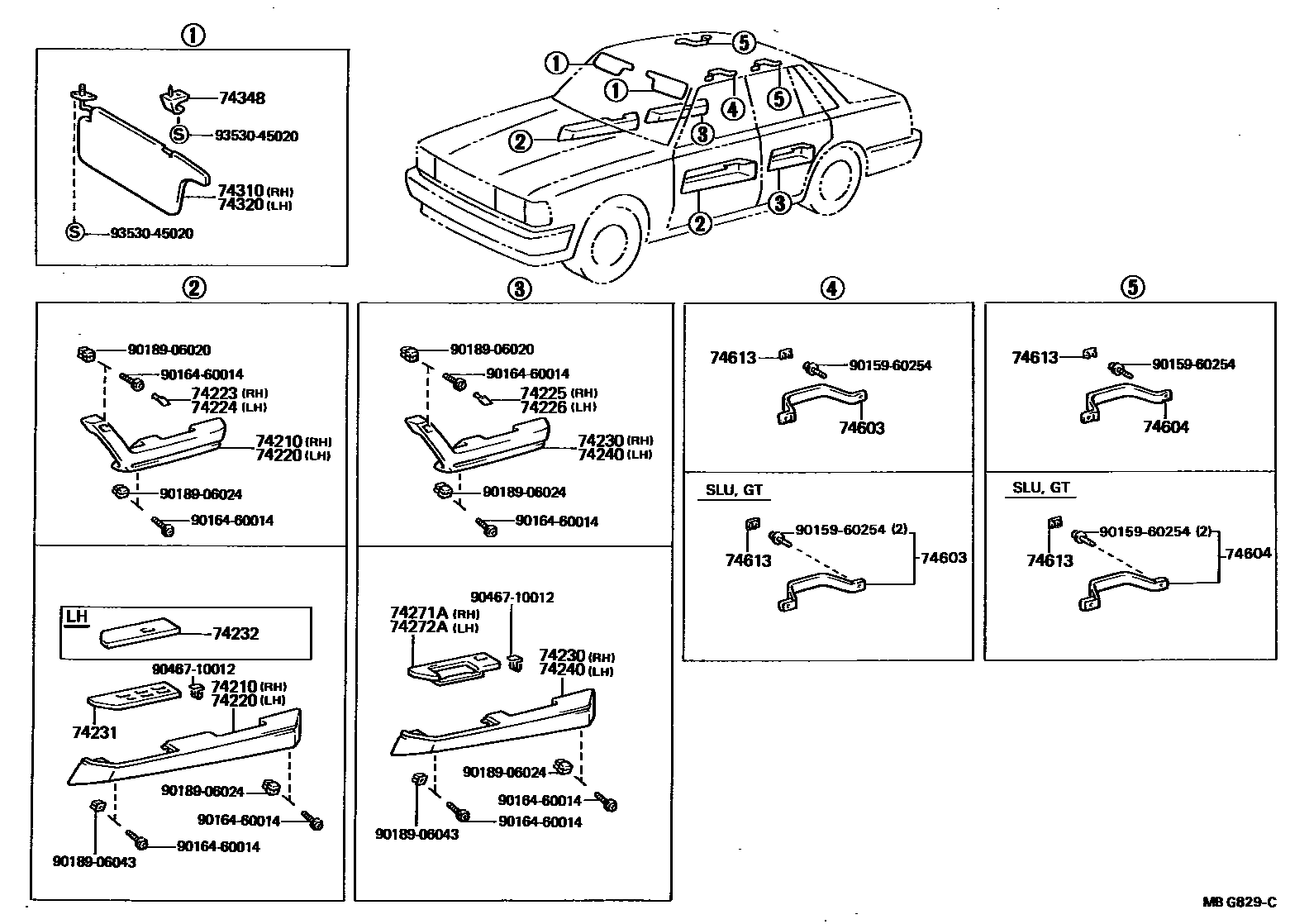

Toyota CRESTA — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-22070-03iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198508-198608

GRAY,COOL GRAY,TRIM1#

main74210-22070-05iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198608

BEIGE,BEIGE,TRIM4#

main74210-22070-12iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198808

MAROON,MAROON,TRIM3#

main74210-22070-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74210-22070-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

main74210-22100-02iGX71,LX70,SX70..SCM,SDX198408-198808

W/*PW,MAROON,MAROON,TRIM3#

main74210-22100-03iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,GRAY,COOL GRAY,TRIM1#

main74210-22100-04iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BLUE,DARK BLUE,TRIM8#

main74210-22100-05iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,BEIGE,BEIGE,TRIM4#

main74210-22100-15iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BEIGE,DARK BEIGE,TRIM4#

main74210-22110-02iGX71,MX71..GT,SLU198408-198808

MAROON,MAROON,TRIM3#

main74210-22110-03iGX71,MX71..GT,SLU198408-198608

GRAY,COOL GRAY,TRIM1#

main74210-22110-04iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74210-22110-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main74210-22110-15iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-22060-03iGX71,LX70,SX70..KYO,SCM,SDX198408-198508

GRAY,COOL GRAY,TRIM1#

main74220-22060-05iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198608

BEIGE,BEIGE,TRIM4#

main74220-22060-12iGX71,LX70,SX70..SCM,SDX198408-198508

MAROON,MAROON,TRIM3#

main74220-22060-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74220-22060-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

main74220-22090-02iGX71,LX70,SX70..SCM,SDX198408-198808

W/*PW,MAROON,MAROON,TRIM3#

main74220-22090-03iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,GRAY,COOL GRAY,TRIM1#

main74220-22090-04iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BLUE,DARK BLUE,TRIM8#

main74220-22090-05iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,BEIGE,BEIGE,TRIM4#

main74220-22090-15iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BEIGE,DARK BEIGE,TRIM4#

main74220-22100-02iGX71,MX71..GT,SLU198408-198808

MAROON,MAROON,TRIM3#

main74220-22100-03iGX71,MX71..GT,SLU198408-198608

GRAY,COOL GRAY,TRIM1#

main74220-22100-04iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74220-22100-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main74220-22100-15iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

74223CAP, DOOR ARMREST, RH

main74223-22010-03iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198508-198608

GRAY,COOL GRAY,TRIM1#

main74223-22010-05iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198608

BEIGE,BEIGE,TRIM4#

main74223-22010-12iGX71,LX70,SX70..SCM,SDX198408-198508

MAROON,MAROON,TRIM3#

main74223-22010-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74223-22010-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-22010-03iGX71,LX70,SX70..KYO,SCM,SDX198408-198508

GRAY,COOL GRAY,TRIM1#

main74224-22010-05iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198608

BEIGE,BEIGE,TRIM4#

main74224-22010-12iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198808

MAROON,MAROON,TRIM3#

main74224-22010-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74224-22010-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

74225CAP, DOOR ARMREST, REAR RH

main74223-22010-03iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198508-198608

GRAY,COOL GRAY,TRIM1#

main74223-22010-05iGX71,LX70,SX70..SCM,SDX198408-198508

BEIGE,BEIGE,TRIM4#

main74223-22010-12iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198808

MAROON,MAROON,TRIM3#

main74223-22010-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74223-22010-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

74226CAP, DOOR ARMREST, REAR LH

main74224-22010-03iGX71,LX70,SX70..KYO,SCM,SDX198408-198508

GRAY,COOL GRAY,TRIM1#

main74224-22010-05iGX71,LX70,SX70..SCM,SDX198408-198508

BEIGE,BEIGE,TRIM4#

main74224-22010-12iGX71,LX70,SX70..SCM,SDX198408-198508

MAROON,MAROON,TRIM3#

main74224-22010-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74224-22010-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-22070-03iGX71,LX70,SX70..KYO,SCM,SDX198408-198508

GRAY,COOL GRAY,TRIM1#

main74210-22070-05iGX71,LX70,SX70..SCM,SDX198408-198508

BEIGE,BEIGE,TRIM4#

main74210-22070-12iGX71,LX70,SX70..SCM,SDX198408-198508

MAROON,MAROON,TRIM3#

main74210-22070-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74210-22070-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

main74250-22040-02iGX71,LX70,SX70..SCM,SDX198408-198808

W/*PW,MAROON,MAROON,TRIM3#

main74250-22040-03iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,GRAY,COOL GRAY,TRIM1#

main74250-22040-04iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BLUE,DARK BLUE,TRIM8#

main74250-22040-05iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,BEIGE,BEIGE,TRIM4#

main74250-22040-15iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BEIGE,DARK BEIGE,TRIM4#

main74250-22050-02iGX71,MX71..GT,SLU198408-198808

MAROON,MAROON,TRIM3#

main74250-22050-03iGX71,MX71..GT,SLU198408-198608

GRAY,COOL GRAY,TRIM1#

main74250-22050-04iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74250-22050-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main74250-22050-15iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22130iGX71,LX70,SX70..SCM,SDX198408-198608

main74231-22131iGX71,LX70,SX70..SCM,SDX198608-198808

main74231-22140iGX71,MX71..GT,SLU198408-198608

main74231-22141iGX71..GT,SLU198608-198808

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22110iGX71,LX70,SX70..SCM,SDX198408-198808

main74232-22120iGX71,MX71..GT,SLU198408-198808

74240ARMREST ASSY, REAR, LH

main74220-22060-03iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198508-198608

GRAY,COOL GRAY,TRIM1#

main74220-22060-05iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198608

BEIGE,BEIGE,TRIM4#

main74220-22060-12iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198508-198808

MAROON,MAROON,TRIM3#

main74220-22060-15iGX71,LX70,SX70..(SCM,SDX)..(CBR,DSL,EFI)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74220-22060-24iGX71,LX70,SX70..(KYO,SCM,SDX)..(CBR,DSL,EFI)198608-198808

BLUE,DARK BLUE,TRIM8#

main74260-22030-02iGX71,LX70,SX70..SCM,SDX198408-198808

W/*PW,MAROON,MAROON,TRIM3#

main74260-22030-03iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,GRAY,COOL GRAY,TRIM1#

main74260-22030-04iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BLUE,DARK BLUE,TRIM8#

main74260-22030-05iGX71,LX70,SX70..SCM,SDX198408-198608

W/*PW,BEIGE,BEIGE,TRIM4#

main74260-22030-15iGX71,LX70,SX70..SCM,SDX198608-198808

W/*PW,BEIGE,DARK BEIGE,TRIM4#

main74260-22040-02iGX71,MX71..GT,SLU198408-198808

MAROON,MAROON,TRIM3#

main74260-22040-03iGX71,MX71..GT,SLU198408-198808

GRAY,COOL GRAY,TRIM1#

main74260-22040-04iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74260-22040-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM4#

main74260-22040-15iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-22040iGX71,LX70,SX70..SCM,SDX198408-198808

main74271-22050iGX71,MX71..GT,SLU198408-198808

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-22040iGX71,LX70,SX70..SCM,SDX198408-198808

main74272-22050iGX71,MX71..GT,SLU198408-198808

74310VISOR ASSY, RH

main74310-22390-03iLX70,SX70..KYO198408-198608

GRAY,GRAY,TRIM1#

main74310-22390-04iSX70..4FC198612-198808

*30,BLUE,DARK BLUE,TRIM8#

main74310-22400-02iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

main74310-22400-03iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

GRAY,GRAY,TRIM1#

main74310-22400-04iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74310-22400-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM3#,4#

main74310-22400-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

74320VISOR ASSY, LH

main74320-22440-03iLX70,SX70..KYO198408-198608

GRAY,GRAY,TRIM1#

main74320-22440-04iSX70..4FC198612-198808

*30,BLUE,DARK BLUE,TRIM8#

main74320-22450-02iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

main74320-22450-03iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

GRAY,GRAY,TRIM1#

main74320-22450-04iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74320-22450-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM3#,4#

main74320-22450-15iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

74348HOLDER, VISOR

main74348-32010-22×2iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

MAROON,MAROON,TRIM3#

sub74348-17010

sub74348-12020

main74348-32010-23×2iGX71,LX70,MX71,SX70198408-198608

GRAY,GRAY,TRIM1#

sub74348-17010

sub74348-12020

main74348-32010-25×2iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198408-198608

BEIGE,BEIGE,TRIM3#,4#

sub74348-17010

sub74348-12020

main74348-32010-34×2iGX71,LX70,SX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub74348-17010

sub74348-12020

main74348-32010-45×2iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub74348-17010

sub74348-12020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-22030-02iGX71..GT,SLU198608-198808

MAROON,MAROON,TRIM3#

main74610-22030-03iGX71,MX71..GT,SLU198408-198608

GRAY,GRAY,TRIM1#

main74610-22030-04iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74610-22030-05iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM3#,4#

main74610-22030-15iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74610-32010-02iGX71,LX70,SX70..SCM,SDX198608-198808

MAROON,MAROON,TRIM3#

sub74610-20040

main74610-32010-14iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

BLUE,DARK BLUE,TRIM8#

sub74610-20040

main74610-32010-25iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM3#,4#

sub74610-20040

main74610-32010-33iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

GRAY,GRAY,TRIM1#

sub74610-20040

main74610-32010-35iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub74610-20040

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-22030-02iGX71..GT,SLU198608-198808

MAROON,MAROON,TRIM3#

main74610-22030-03×2iGX71,MX71..GT,SLU198408-198608

GRAY,GRAY,TRIM1#

main74610-22030-04iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74610-22030-05×2iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM3#,4#

main74610-22030-15iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74610-32010-02iGX71,LX70,SX70..SCM,SDX198608-198808

MAROON,MAROON,TRIM3#

sub74610-20040

main74610-32010-14iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

BLUE,DARK BLUE,TRIM8#

sub74610-20040

main74610-32010-25×2iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM3#,4#

sub74610-20040

main74610-32010-33×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

GRAY,GRAY,TRIM1#

sub74610-20040

main74610-32010-35iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub74610-20040

74613PLUG, ASSIST GRIP

main74617-16010-02×6iGX71,LX70,SX70..SCM,SDX198608-198808

MAROON,MAROON,TRIM3#

main74617-16010-13×6iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

GRAY,GRAY,TRIM1#

main74617-16010-35×6iGX71,LX70,SX70..SCM,SDX198408-198608

BEIGE,BEIGE,TRIM3#,4#

main74617-16010-44×6iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

BLUE,DARK BLUE,TRIM8#

main74617-16010-55×6iGX71,LX70,SX70..SCM,SDX198608-198808

BEIGE,DARK BEIGE,TRIM4#

main74617-30020-12×6iGX71..GT,SLU198608-198808

MAROON,MAROON,TRIM3#

main74617-30020-13×6iGX71,MX71..GT,SLU198408-198608

GRAY,GRAY,TRIM1#

main74617-30020-25×6iGX71,MX71..GT,SLU198408-198608

BEIGE,BEIGE,TRIM3#,4#

main74617-30020-34×6iGX71..GT,SLU198608-198808

BLUE,DARK BLUE,TRIM8#

main74617-30020-35×6iGX71..GT,SLU198608-198808

BEIGE,DARK BEIGE,TRIM4#

9015960254

main90159-60254

9016460014

main90164-60014

9018906020

main90189-06020

9018906024

main90189-06024

9018906043

main90189-06043

9046710012

main90467-10012

9353045020

main93530-45020

25 parts on this diagram · 1 diagram in section
