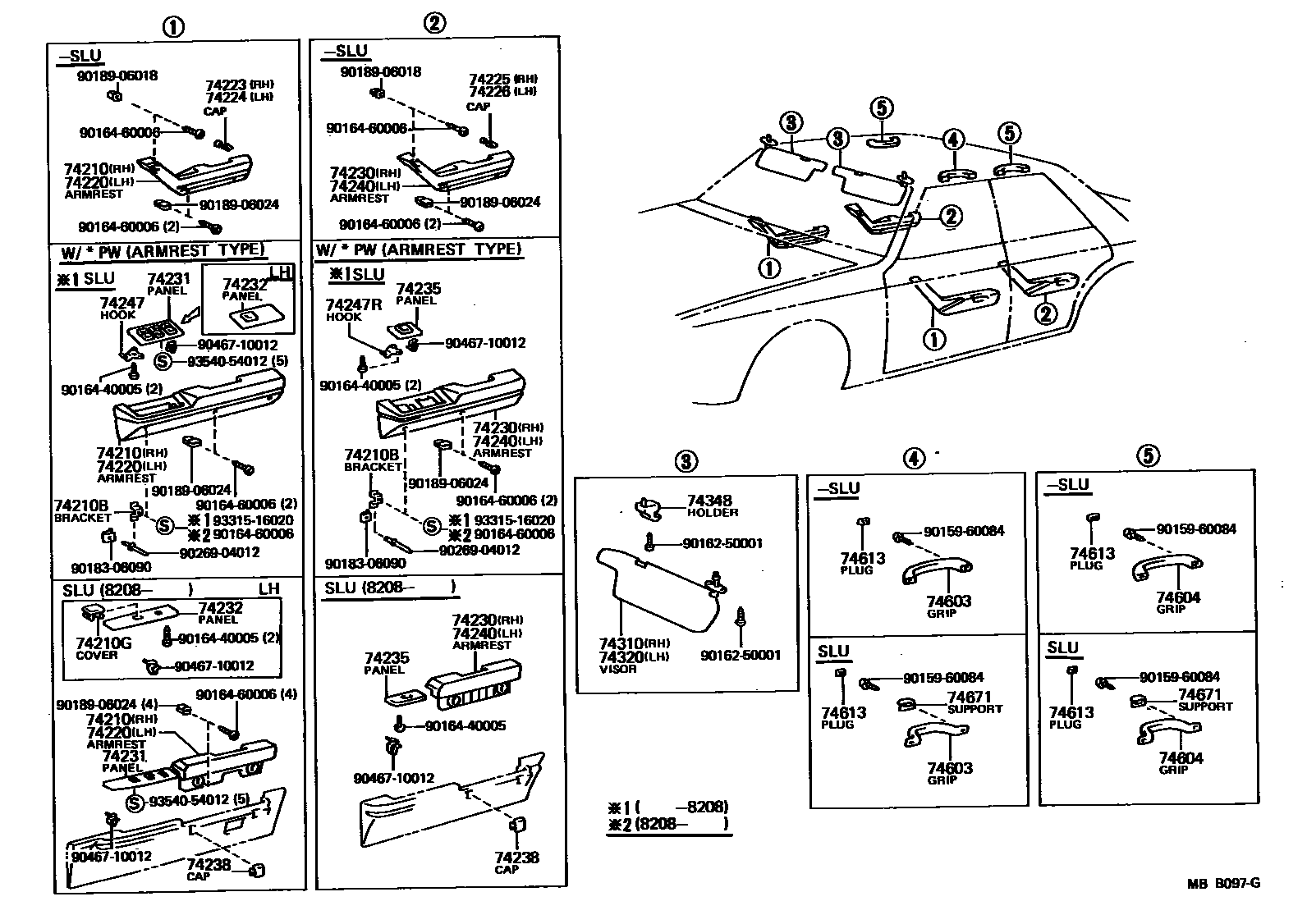

Toyota CRESTA — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-22070-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74210-22070-02iLX60..CTM198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74210-22070-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74210-22070-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

D-BROWN,BROWN,TRIM4#

main74210-22070-14iLX60..CTM198308-198407

BLUE,BLUE,TRIM8#

main74210-22080-01iGX51..SLU198003-198010

BLACK,BLACK,TRIM2#

sub90164-60006

sub90183-06090

main74210-22080-04iGX51..SLU198003-198010

BLUE,BLUE,TRIM8#

sub90164-60006

sub90183-06090

main74210-22080-06iGX51..SLU198003-198010

D-BROWN,BROWN,TRIM4#

sub90164-60006

sub90183-06090

main74210-22081-01iGX51,MX51..SLU198010-198208

BLACK,BLACK,TRIM2#

main74210-22081-02iGX61,LX60..SCM,SDX198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74210-22081-04iGX51,MX51..SLU198010-198208

BLUE,BLUE,TRIM8#

main74210-22081-06iGX61,LX60..SCM,SDX198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main74210-22081-14iGX61,LX60..SCM,SDX198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main74210-22090-02iGX61,MX61..SLU198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74210-22090-04iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

main74210-22090-06iGX61,MX61..SLU198208-198407

D-BROWN,BROWN,TRIM4#

74210BBRACKET, ARMREST SET

main67645-22010×4iGX51,MX51..SLU198010-198208

main67645-30010×4iGX51..SLU198003-198010

74210GCOVER, SPARE SWITCH HOLE

main55539-24010-01iGX61,MX61..SLU198208-198407

BLACK,BLACK,TRIM2#

sub55539-32010

sub55539-14030

sub55539-20030

74220ARMREST ASSY, FRONT, LH

main74220-22060-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74220-22060-02iLX60..CTM198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74220-22060-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74220-22060-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

D-BROWN,BROWN,TRIM4#

main74220-22060-14iLX60..CTM198308-198407

BLUE,BLUE,TRIM8#

main74220-22070-01iGX51..SLU198003-198010

BLACK,BLACK,TRIM2#

sub90164-60006

sub90183-06090

main74220-22070-04iGX51..SLU198003-198010

BLUE,BLUE,TRIM8#

sub90164-60006

sub90183-06090

main74220-22070-06iGX51..SLU198003-198010

D-BROWN,BROWN,TRIM4#

sub90164-60006

sub90183-06090

main74220-22071-01iGX51,MX51..SLU198010-198208

BLACK,BLACK,TRIM2#

main74220-22071-02iGX61,LX60..SCM,SDX198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74220-22071-04iGX51,MX51..SLU198010-198208

BLUE,BLUE,TRIM8#

main74220-22071-06iGX61,LX60..SCM,SDX198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main74220-22071-14iGX61,LX60..SCM,SDX198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main74220-22080-02iGX61,MX61..SLU198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74220-22080-04iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

main74220-22080-06iGX61,MX61..SLU198208-198407

D-BROWN,BROWN,TRIM4#

74223CAP, DOOR ARMREST, RH

main74223-22010-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74223-22010-02iGX61,MX61,SX60..CTM,SCM,SDX,STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74223-22010-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

D-BROWN,BROWN,TRIM4#

main74223-22010-14iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

BLUE,BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-22010-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74224-22010-02iGX61,MX61,SX60..CTM,SCM,SDX,STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74224-22010-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

D-BROWN,BROWN,TRIM4#

main74224-22010-14×2iLX60..CTM198308-198407

BLUE,BLUE,TRIM8#

74225CAP, DOOR ARMREST, REAR RH

main74223-22010-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74223-22010-02iLX60..CTM198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74223-22010-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

D-BROWN,BROWN,TRIM4#

main74223-22010-14iLX60..CTM198308-198407

BLUE,BLUE,TRIM8#

74226CAP, DOOR ARMREST, REAR LH

main74224-22010-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74224-22010-02iLX60..CTM198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74224-22010-06iLX60..CTM198308-198407

D-BROWN,BROWN,TRIM4#

main74224-22010-14iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

BLUE,BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-22070-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74210-22070-02iLX60..CTM198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74210-22070-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74210-22070-06iLX60..CTM198308-198407

D-BROWN,BROWN,TRIM4#

main74210-22070-14iLX60..CTM198308-198407

BLUE,BLUE,TRIM8#

main74250-22020-01iGX51..SLU198003-198010

BLACK,BLACK,TRIM2#

sub90164-60006

sub90183-06090

main74250-22020-04iGX51..SLU198003-198010

BLUE,BLUE,TRIM8#

sub90164-60006

sub90183-06090

main74250-22020-06iGX51..SLU198003-198010

D-BROWN,BROWN,TRIM4#

sub90164-60006

sub90183-06090

main74250-22021-01iGX51,MX51..SLU198010-198208

BLACK,BLACK,TRIM2#

main74250-22021-02iGX61,LX60..SCM,SDX198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74250-22021-06iGX51,MX51..SLU198010-198208

D-BROWN,BROWN,TRIM4#

main74250-22021-14iGX51,MX51..SLU198010-198208

BLUE,BLUE,TRIM8#

main74250-22030-02iGX61,MX61..SLU198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74250-22030-04iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

main74250-22030-06iGX61,MX61..SLU198208-198407

D-BROWN,BROWN,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22060iGX51,MX51..SLU198003-198208

sub74231-30100

main74231-22080iGX61,MX61..SLU198208-198407

main74231-22110iGX61,LX60..SCM,SDX198208-198407

W/*PW

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-22060iGX61,MX61..SLU198208-198407

main74232-22080iGX61,LX60..SCM,SDX198208-198407

W/*PW

main74232-30090iGX51,MX51..SLU198003-198208

sub74232-30100

74235PANEL, REAR ARMREST BASE, UPPER

main74271-22020iGX61,MX61..SLU198208-198407

RH

main74271-22030iGX61,LX60..SCM,SDX198208-198407

RH,W/*PW

main74271-30030iGX51,MX51..SLU198003-198208

RH

sub74271-30050

main74272-22020iGX61,MX61..SLU198208-198407

LH

main74272-22030iGX61,LX60..SCM,SDX198208-198407

LH,W/*PW

main74272-30030iGX51,MX51..SLU198003-198208

LH

sub74272-30050

74238CAP, DOOR ARMREST BASE

main74237-22010iGX51..SLU198003-198104

main74237-22020-02×8iGX61,MX61..SLU198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74237-22020-04×8iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

main74237-22020-06×8iGX61,MX61..SLU198208-198407

D-BROWN,BROWN,TRIM4#

74240ARMREST ASSY, REAR, LH

main74220-22060-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLACK,BLACK,TRIM2#

main74220-22060-02iGX61,MX61,SX60..CTM,SCM,SDX,STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74220-22060-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74220-22060-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

D-BROWN,BROWN,TRIM4#

main74220-22060-14iLX60..CTM198308-198407

BLUE,BLUE,TRIM8#

main74260-22010-01iGX51..SLU198003-198010

BLACK,BLACK,TRIM2#

sub90164-60006

sub90183-06090

main74260-22010-04iGX51..SLU198003-198010

BLUE,BLUE,TRIM8#

sub90164-60006

sub90183-06090

main74260-22010-06iGX51..SLU198003-198010

D-BROWN,BROWN,TRIM4#

sub90164-60006

sub90183-06090

main74260-22011-01iGX51,MX51..SLU198010-198208

BLACK,BLACK,TRIM2#

main74260-22011-02iGX61,LX60..SCM,SDX198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74260-22011-04iGX51,MX51..SLU198010-198208

BLUE,BLUE,TRIM8#

main74260-22011-06iGX51,MX51..SLU198010-198208

D-BROWN,BROWN,TRIM4#

main74260-22011-14iGX61,LX60..SCM,SDX198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main74260-22020-02iGX61,MX61..SLU198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main74260-22020-04iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

main74260-22020-06iGX61,MX61..SLU198208-198407

D-BROWN,BROWN,TRIM4#

74247HOOK, FRONT DOOR ARMREST UPPER BASE

main74247-30010×2iGX61,LX60..SCM,SDX198208-198407

W/*PW

74247RHOOK, REAR DOOR ARMREST UPPER BASE

main74247-22010×2iGX51,MX51..SLU198003-198208

74310VISOR ASSY, RH

main74310-22140-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

sub74310-22281

main74310-22140-08iGX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

IVORY,IVORY,TRIM2#,3#,4#

sub74310-22281

main74310-22140-14iGX61,LX60,MX61,SX60..CTM,SCM,SDX,STR198208-198407

BLUE,BLUE,TRIM8#

sub74310-22281

main74310-22150-04iGX51..SLU198003-198010

BLUE,BLUE,TRIM8#

main74310-22150-08iGX51..SLU198003-198010

IVORY,IVORY,TRIM2#,4#

main74310-22150-14iGX51,MX51..SLU198010-198208

BLUE,BLUE,TRIM8#

main74310-22150-18iGX51,MX51..SLU198010-198208

IVORY,IVORY,TRIM2#,4#

main74310-22151-08iGX61,MX61..SLU198208-198407

IVORY,IVORY,TRIM3#,4#

main74310-22151-14iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

74320VISOR ASSY, LH

main74320-22190-04iGX5#,MX51..SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74320-22190-08iGX5#,MX51..SDX,STR198003-198208

IVORY,IVORY,TRIM2#,4#

main74320-22200-04iGX51..SLU198003-198010

BLUE,BLUE,TRIM8#

main74320-22200-08iGX51..SLU198003-198010

IVORY,IVORY,TRIM2#,4#

main74320-22200-14iGX51,MX51..SLU198010-198208

BLUE,BLUE,TRIM8#

main74320-22200-18iGX51,MX51..SLU198010-198208

IVORY,IVORY,TRIM2#,4#

main74320-22201-08iGX61,MX61..SLU198208-198407

IVORY,IVORY,TRIM3#,4#

main74320-22201-14iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

main74320-22210-04iTX50198003-198208

BLUE,BLUE,TRIM8#

sub74320-22361

main74320-22210-08iGX61,LX60,MX61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

IVORY,IVORY,TRIM2#,3#,4#

sub74320-22361

main74320-22210-14iGX61,LX60,MX61,SX60..CTM,SCM,SDX,STR198208-198407

BLUE,BLUE,TRIM8#

sub74320-22361

74348HOLDER, VISOR

main74348-12010-04×2iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

sub74348-30010

main74348-12010-08×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

IVORY,IVORY,TRIM2#,3#,4#

sub74348-30010

main74348-12010-14×2iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

sub74348-30010

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-20030-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74610-20030-08iGX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

IVORY,IVORY,TRIM2#,3#,4#

main74610-20030-14iGX61,LX60,MX61,SX60..CTM,SCM,SDX,STR198208-198407

BLUE,BLUE,TRIM8#

main74610-22010-04iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main74610-22010-08iGX51,61,MX51,61..SLU198003-198407

IVORY,IVORY,TRIM2#,3#,4#

main74610-22010-14iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-20030-04×2iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74610-20030-08×2iGX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

IVORY,IVORY,TRIM2#,3#,4#

main74610-20030-14×2iGX61,LX60,MX61,SX60..CTM,SCM,SDX,STR198208-198407

BLUE,BLUE,TRIM8#

main74610-22010-04×2iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main74610-22010-08×2iGX51,61,MX51,61..SLU198003-198407

IVORY,IVORY,TRIM2#,3#,4#

main74610-22010-14×2iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

74613PLUG, ASSIST GRIP

main74617-14010-04×6iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

BLUE,BLUE,TRIM8#

main74617-14010-08×6iGX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

IVORY,IVORY,TRIM2#,3#,4#

main74617-14010-14×6iGX61,LX60,MX61,SX60..CTM,SCM,SDX,STR198208-198407

BLUE,BLUE,TRIM8#

main74617-30020-04×6iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main74617-30020-08×6iGX51,61,MX51,61..SLU198003-198407

IVORY,IVORY,TRIM2#,3#,4#

main74617-30020-14×6iGX61,MX61..SLU198208-198407

BLUE,BLUE,TRIM8#

74671SUPPORT, ASSIST GRIP

main74671-30010×6iGX51,61,MX51,61..SLU198003-198407

9015960084

main90159-60084

9016250001

main90162-50001

9016440005

main90164-40005

9016460006

main90164-60006

9018306090

main90183-06090

9018906018

main90189-06018

9018906024

main90189-06024

9026904012

main90269-04012

9046710012

main90467-10012

9331516020

main93315-16020

9354054012

main93540-54012

34 parts on this diagram · 1 diagram in section
