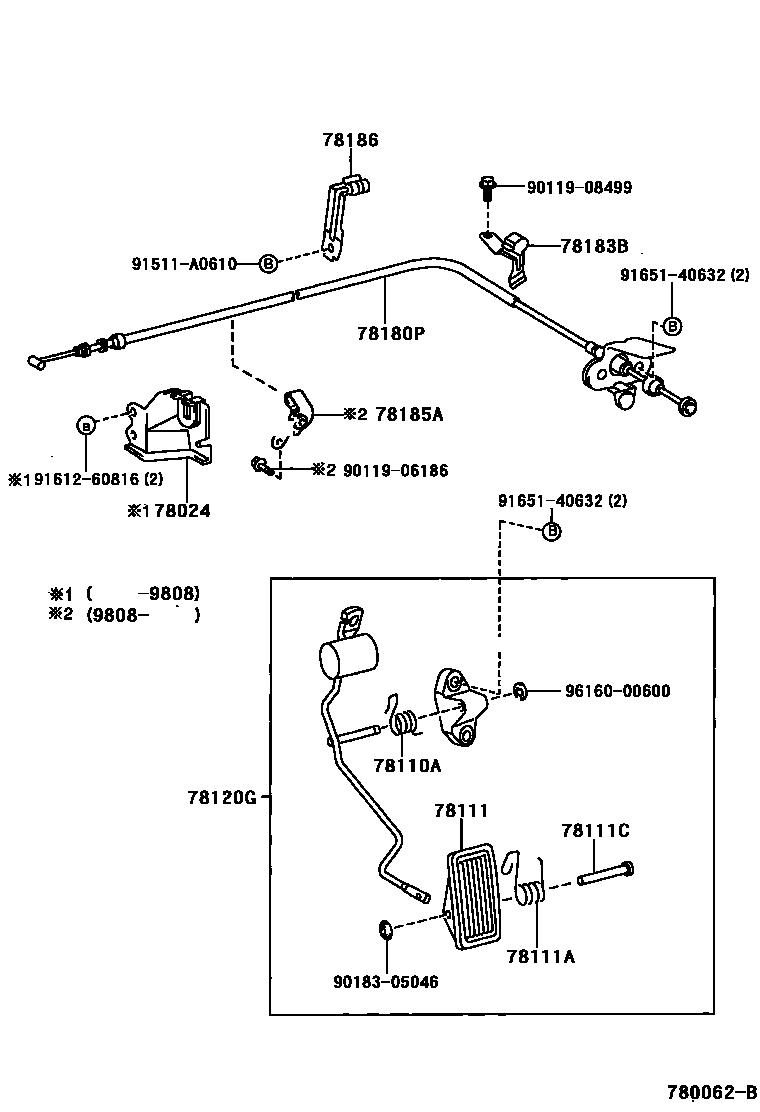

Toyota CRESTA — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9011906186
main90119-06186
9011908499
main90119-08499
9018305046
main90183-05046
91511A0610
main91511-A0610
9161260816
main91612-60816
9165140632
main91651-40632
9616000600
main96160-00600
17 parts on this diagram · 4 diagrams in section
ACCELERATOR LINK for Toyota CRESTA
This section contains 24 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CRESTA. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
