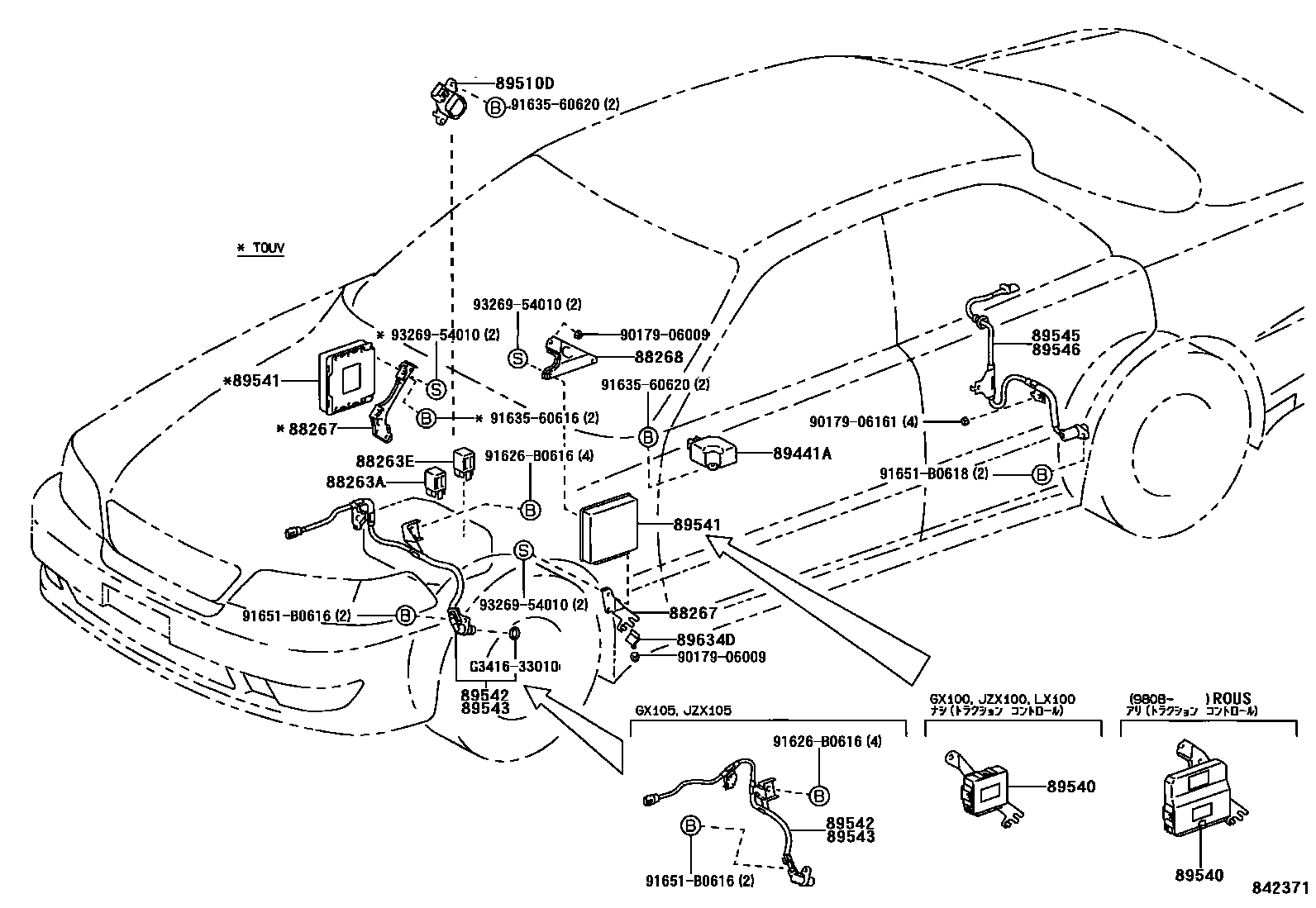

Toyota CRESTA — ABS & VSC
88263ARELAY, SKID CONTROL
88263ERELAY, SKID CONTROL NO.2
88267BRACKET, SKID CONTROL COMPUTER, NO.1
88268BRACKET, SKID CONTROL COMPUTER, NO.2
89441ASENSOR, DECELERATION
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89540COMPUTER ASSY, SKID CONTROL
89541COMPUTER, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89634DBRACKET, SKID CONTROL COMPUTER NO.3
9017906009
main90179-06009
9017906161
main90179-06161
91626B0616
main91626-B0616
9163560616
main91635-60616
9163560620
main91635-60620
91651B0616
main91651-B0616
91651B0618
main91651-B0618
9326954010
main93269-54010
G341633010
mainG3416-33010
22 parts on this diagram · 3 diagrams in section
ABS & VSC for Toyota CRESTA
This section contains 36 genuine Toyota parts for the ABS & VSC system of the Toyota CRESTA. Key components include: BRAKE MASTER CYLINDER, SWITCH & RELAY & COMPUTER, TRACTION CONTROL, BRACKET, RELAY, BUZZER ASSY, SKID CONTROL.
