Toyota CRESTA — ABS & VSC
88263ARELAY, SKID CONTROL
88267BRACKET, SKID CONTROL COMPUTER, NO.1
88268BRACKET, SKID CONTROL COMPUTER, NO.2
89441ASENSOR, DECELERATION
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
9011906601
main90119-06601
9017906161
main90179-06161
9165160614
main91651-60614
91651B0614
main91651-B0614
91651B0616
main91651-B0616
91651B0618
main91651-B0618
9326954010
main93269-54010

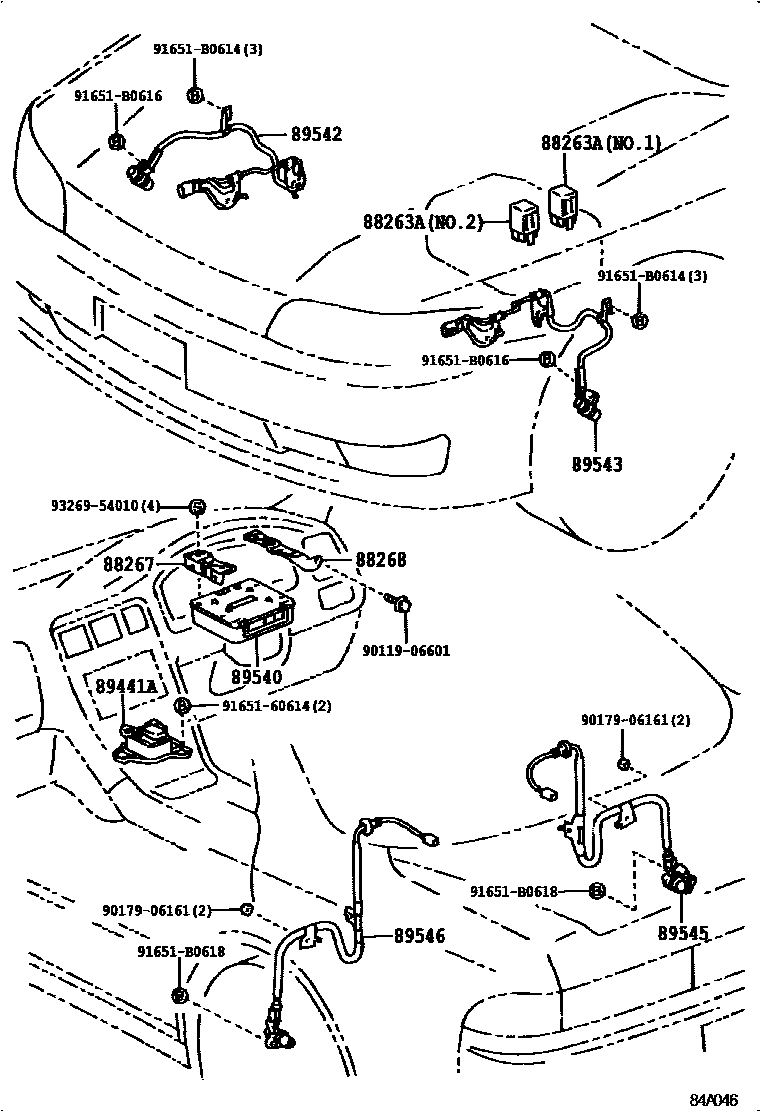

16 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota CRESTA
This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota CRESTA. Key components include: RELAY, SKID CONTROL, BRACKET, SKID CONTROL COMPUTER, NO.1, BRACKET, SKID CONTROL COMPUTER, NO.2, SENSOR, DECELERATION, COMPUTER ASSY, SKID CONTROL.
