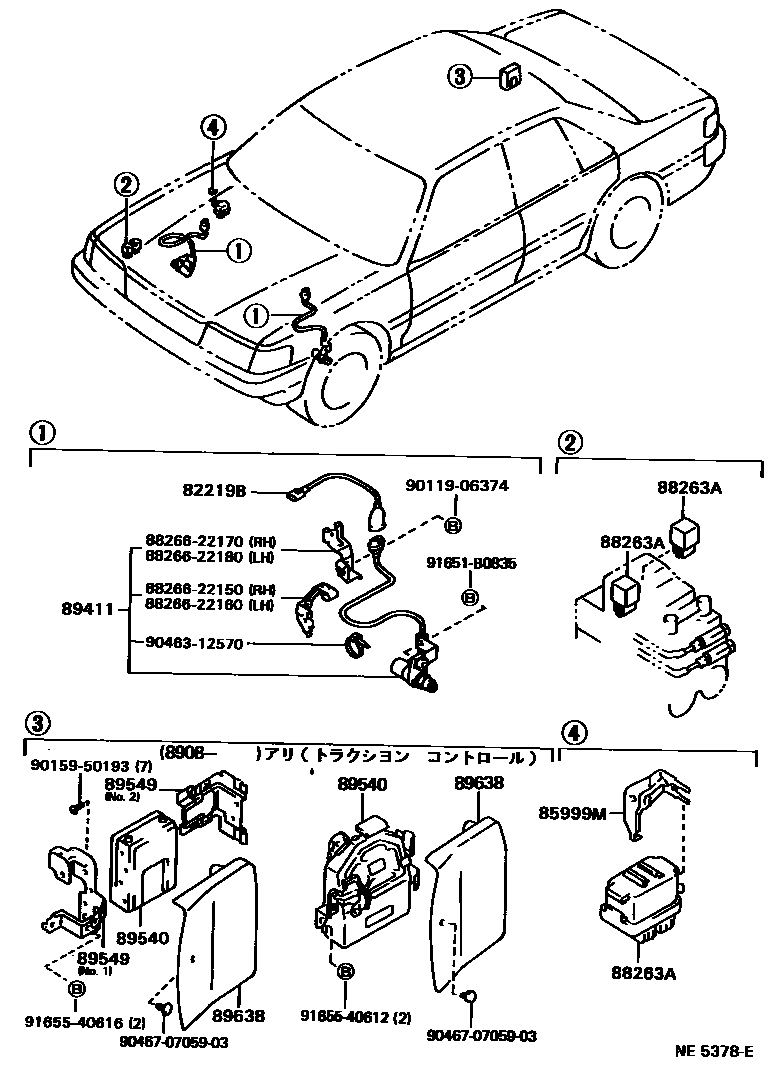

Toyota CRESTA — ABS & VSC
82219BWIRE, SENSOR
85999MBRACKET, RELAY
88263ARELAY, SKID CONTROL
FENDER REAR
MOTOR RELAY
SOLENOID RELAY
89411SENSOR, SPEED
89540COMPUTER ASSY, SKID CONTROL
89549BRACKET, SKID CONTROL COMPUTER
89638COVER, BRAKE CONTROL COMPUTER
8826622150CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22150
8826622160CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22160
8826622170CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22170
8826622180CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-22180
9011906374
main90119-06374
9015950193
main90159-50193
9046312570
main90463-12570
904670705903
main90467-0705903
91651B0835
main91651-B0835
9165540612
main91655-40612
9165540616
main91655-40616
18 parts on this diagram · 2 diagrams in section
ABS & VSC for Toyota CRESTA
This section contains 28 genuine Toyota parts for the ABS & VSC system of the Toyota CRESTA. Key components include: PLATE, TRANSMISSION WIRE LOCK, WIRE, TRANSMISSION, WIRE, SENSOR, BRACKET, RELAY, RELAY, SKID CONTROL.
