Toyota CRESTA — ABS & VSC
84221ASWITCH ASSY, DIFFERENTIAL VALVE (FOR ESC)
89411SENSOR, SPEED
89411ARING, O (FOR SPEED SENSOR)
89540COMPUTER ASSY, SKID CONTROL
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8271112220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12220
9017906070
main90179-06070
9017906115
main90179-06115
9046106132
main90461-06132
9046106152
main90461-06152
9046108187
main90461-08187
9056008021
main90560-08021
9161140814
main91611-40814
9161140840
main91611-40840
9671001010
main96710-01010
9671119010
main96711-19010

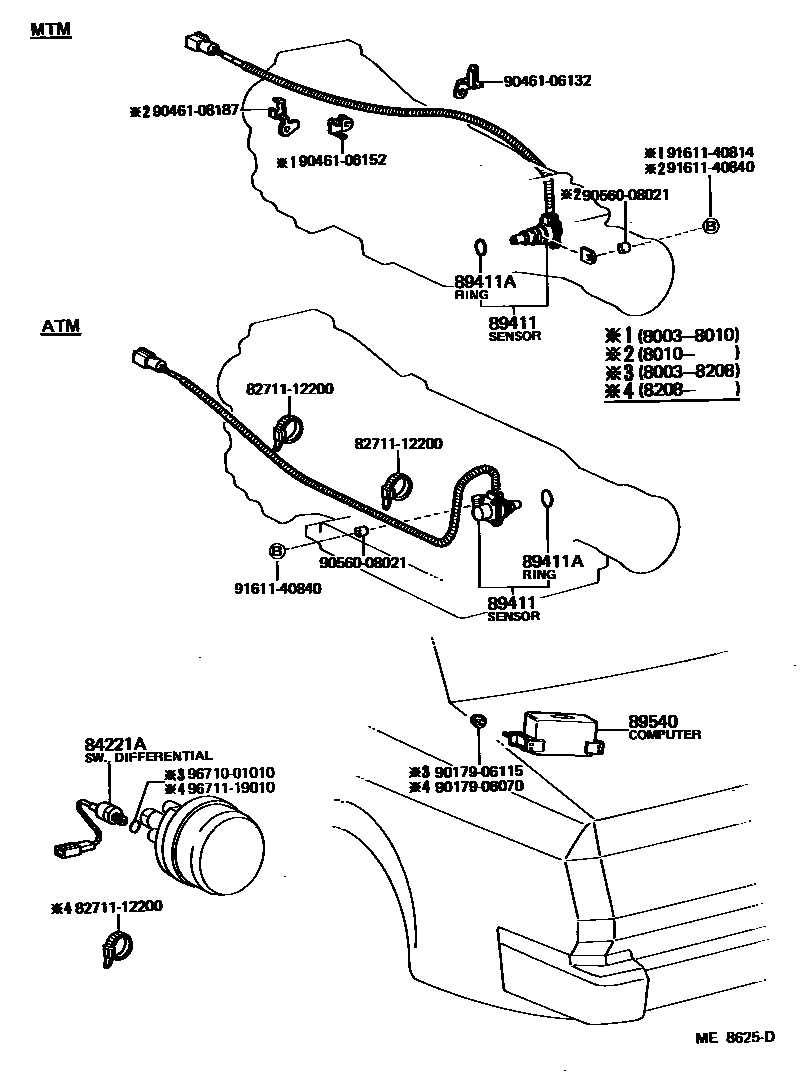

16 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota CRESTA
This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota CRESTA. Key components include: SWITCH ASSY, DIFFERENTIAL VALVE (FOR ESC), SENSOR, SPEED, RING, O (FOR SPEED SENSOR), COMPUTER ASSY, SKID CONTROL, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
