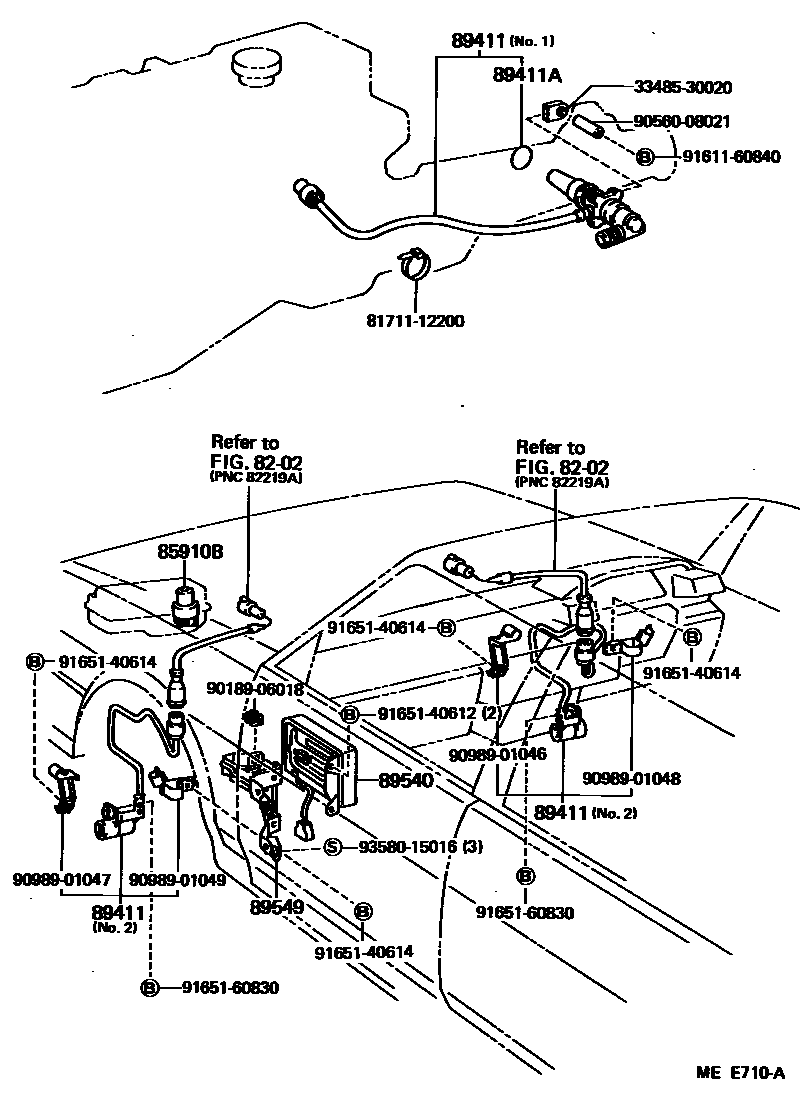

Toyota CRESTA — ABS & VSC
8202WIRING & CLAMP
85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)
89411SENSOR, SPEED
NO.1
NO.2,RH
NO.2,RH
NO.2,LH
NO.2,LH
89411ARING, O (FOR SPEED SENSOR)
89540COMPUTER ASSY, SKID CONTROL
89549BRACKET, SKID CONTROL COMPUTER
3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
main33485-30020
8171112200LENS, FRONT MARKER LAMP, RH
main81711-12200
9018906018
main90189-06018
9056008021
main90560-08021
9098901046
main90989-01046
9098901047
main90989-01047
9098901048
main90989-01048
9098901049
main90989-01049
9161160840
main91611-60840
9165140612
main91651-40612
9165140614
main91651-40614
9165160830
main91651-60830
9358015016
main93580-15016
19 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota CRESTA
This section contains 19 genuine Toyota parts for the ABS & VSC system of the Toyota CRESTA. Key components include: WIRING & CLAMP, RELAY ASSY, CIRCUIT OPENING (FOR ESC), SENSOR, SPEED, RING, O (FOR SPEED SENSOR), COMPUTER ASSY, SKID CONTROL.
