Toyota CRESSIDA — WINDSHIELD WIPER

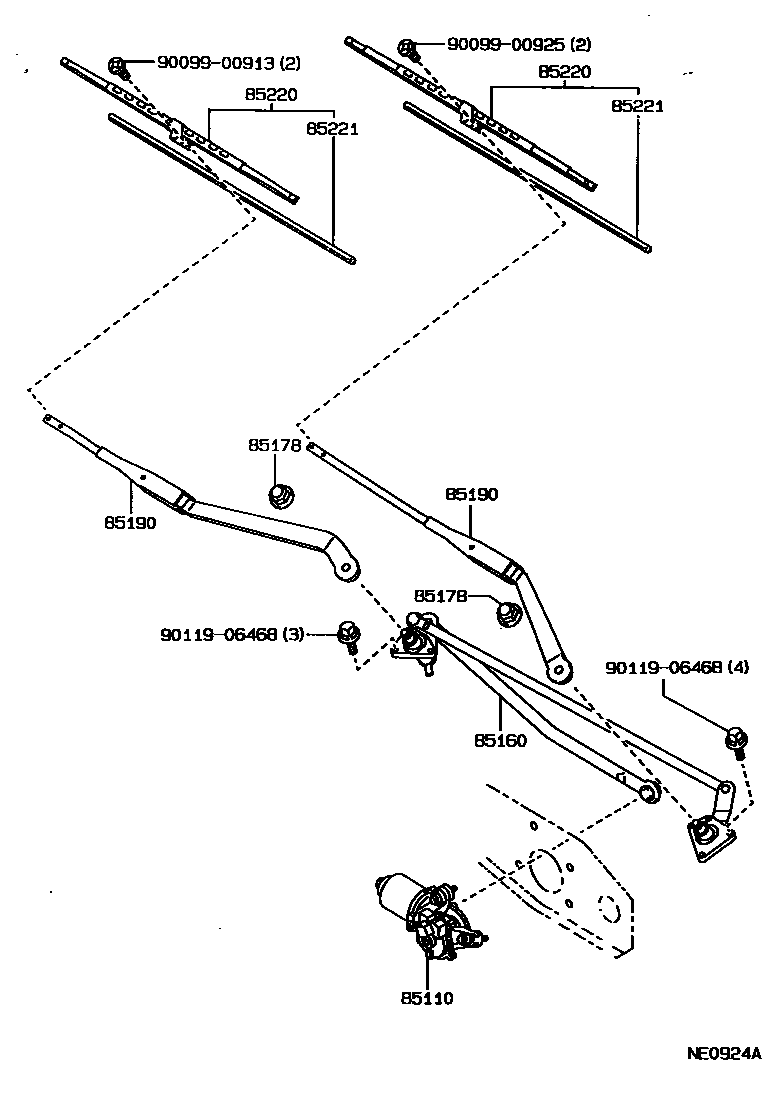

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-22450i198808-199207
85160LINK ASSY, WINDSHIELD WIPER
main85160-22460i198808-199207
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-08040×2i198808-199207
85190ARM ASSY, WINDSHIELD WIPER
main85190-22710i198808-199207
LH
main85210-22300i198808-199207
RH
85220BLADE ASSY, WINDSHIELD WIPER
main85220-16830i198808-199207
RH
main85220-32820i198808-199207
LH
85221BLADE, WINDSHIELD WIPER
main85213-18010i199009-199207
LH
main85221-22150i198808-199008
RH
main85221-22210i198808-199009
LH
9009900913
main90099-00913
9009900925
main90099-00925
9011906468
main90119-06468

9 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CRESSIDA

This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CRESSIDA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
