Toyota CRESSIDA — WINDSHIELD WIPER

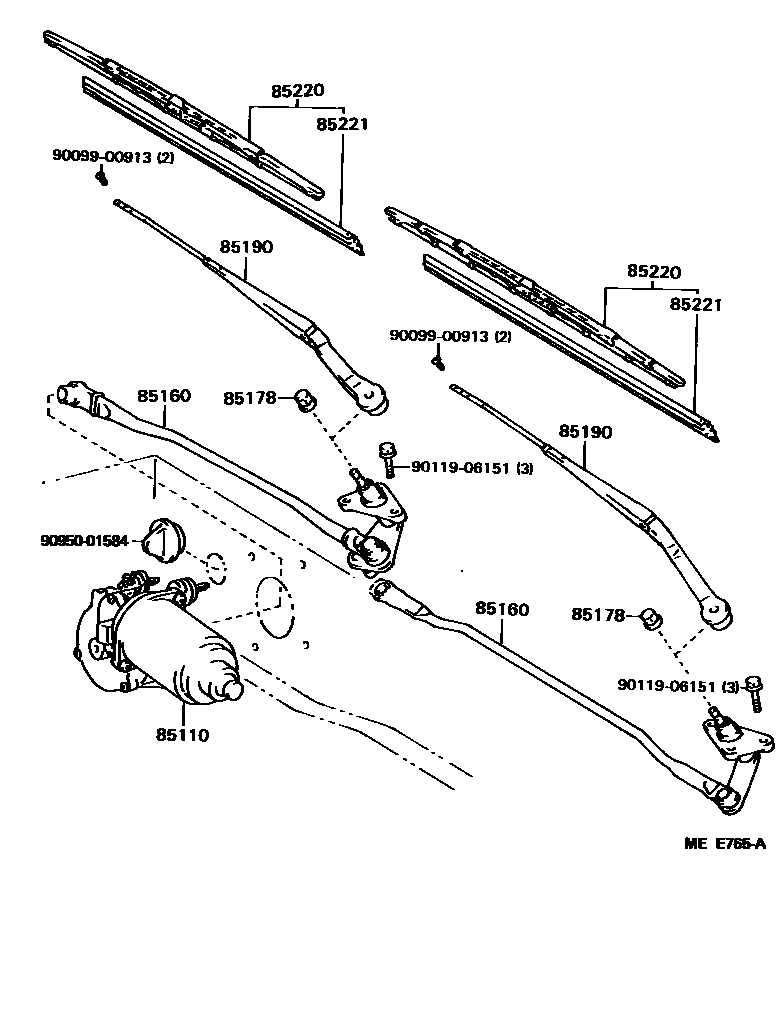

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22310i198408-198608

main85110-22380i198608-198803

main85110-22381i198803-198808

85160LINK ASSY, WINDSHIELD WIPER

main85160-22270i198408-198608

RH

main85160-22271i198608-198808

RH

main85160-22280i198408-198608

LH

main85160-22390i198608-198808

LH

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029×2i198408-198506

main90176-08033×2i198506-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-22530i198408-198608

LH

main85190-22531i198608-198808

LH

main85210-22190i198408-198608

RH

main85210-22191i198608-198808

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16340i198408-198808

RH

main85220-32280i198408-198808

LH

85221BLADE, WINDSHIELD WIPER

main85221-30100i198408-198808

RH

main85221-32060i198408-198808

LH

9009900913

main90099-00913

9011906151

main90119-06151

9095001584

main90950-01584

9 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CRESSIDA

This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CRESSIDA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
