Toyota CRESSIDA — WINDSHIELD WASHER

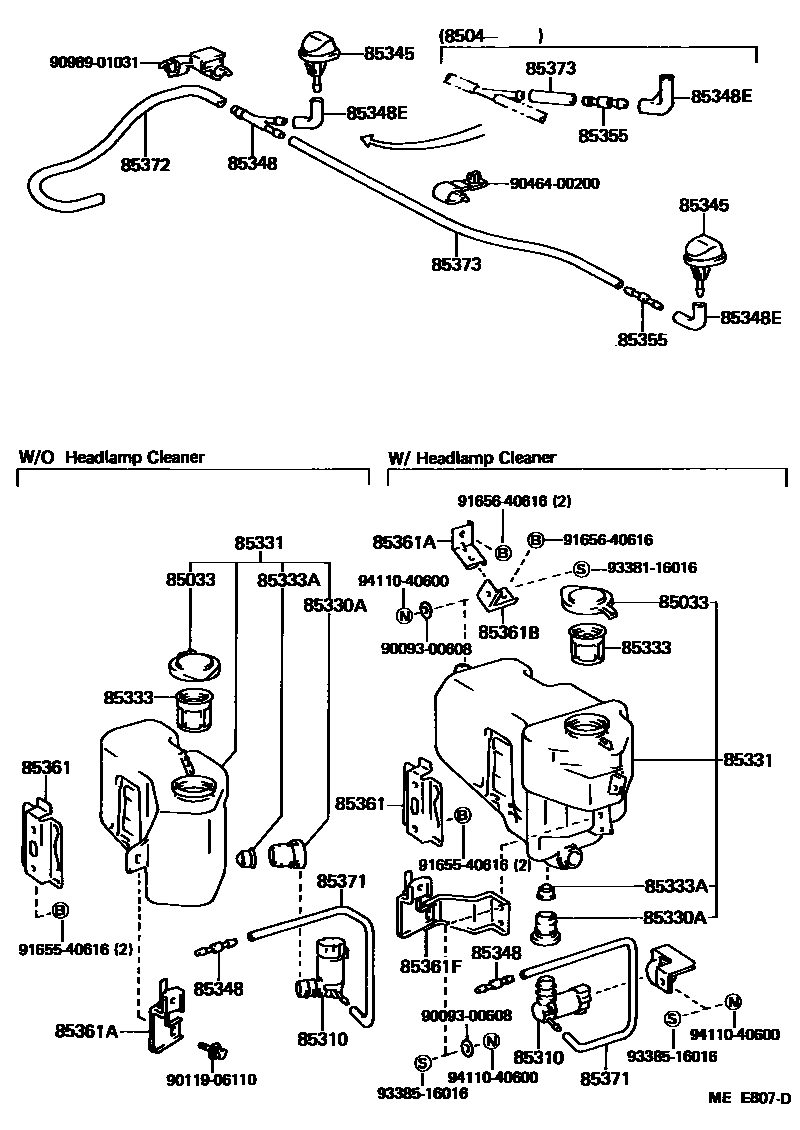

Parts diagram
85033CAP ASSY, WINDSHIELD WASHER
main85332-12320i198408-198808
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22110i198408-198412
main85310-22111i198412-198808
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32103i198408-198808
85331JAR SUB-ASSY, WINDSHIELD WASHER
main85331-22230i198408-198608
W/*HC
main85331-22350i198408-198808
W/O *HC
85333FILTER, WINDSHIELD WASHER JAR
main85333-20010i198408-198808
85333AFILTER, WINDSHIELD WASHER JAR, NO.2
main85333-20020i198408-198808
85345NOZZLE, WINDSHIELD WASHER
main85035-22090×2i198408-198608
main85035-22200-01×2i198608-198808
BLACK,BLACK
main85035-22200-05×2i198608-198808
BEIGE-M,BEIGE METALLIC
main85035-22200-08×2i198608-198808
WHITE,SUPER WHITE 2
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198408-198808
3 WAY
main85349-14010i198408-198808
2 WAY
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-14481×2i198408-198808
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250i198408-198808
85361HOLDER, WINDSHIELD WASHER
main16611-22010i198408-198808
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85361-22300i198408-198608
W/*HC
main85361-22350i198408-198808
W/O *HC
85361BBRACKET, WINDSHIELD WASHER, NO.2
main85361-22230i198408-198608
85361FBRACKET, WINDSHIELD WASHER, NO.3
main85362-22230i198608-198808
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33075i198408-198608
L=1000(*H,L=400),W/*HC
main90446-06013i198408-198808
L=1000(*H,L=300),W/O *HC
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33077i198408-198504
L=450
main90099-33080i198504-198808
L=600(*H,L=500)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i198504-198808
L=1450(*H,L=35)
main90099-33089i198408-198504
9009300608
main90093-00608
9011906110
main90119-06110
9046400200
main90464-00200
9098901031
main90989-01031
9165540616
main91655-40616
9165640616
main91656-40616
9338116016
main93381-16016
9338516016
main93385-16016
9411040600
main94110-40600

26 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CRESSIDA

This section contains 26 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CRESSIDA. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER, FILTER, WINDSHIELD WASHER JAR.
