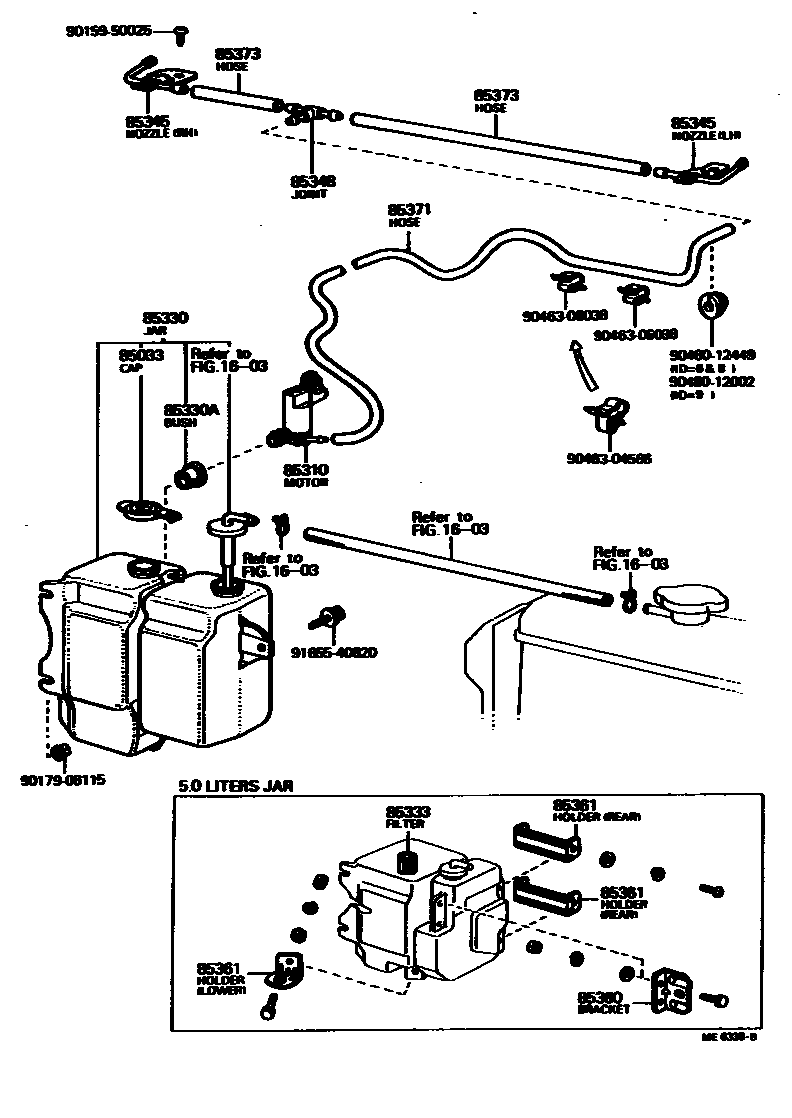

Toyota CRESSIDA — WINDSHIELD WASHER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85033CAP ASSY, WINDSHIELD WASHER

main85332-20020i197708-197908

1.6 LITERS

main85332-20040i197708-197808

5.0 LITERS

main85332-20060i197808-198008

5.0 LITERS

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12060i197708-197710

5.0 LITERS

main85310-20100i197708-197901

1.6 LITERS

main85310-20110i197710-197808

5.0 LITERS

main85310-20120i197808-197901

5.0 LITERS

main85310-20130i197908-198008

main85310-22040i197901-197908

1.6 LITERS

main85310-22050i197901-197908

5.0 LITERS

85330JAR ASSY, WINDSHIELD WASHER

main85330-22030i197708-197710

1.6 LITERS

main85330-22031i197710-197908

1.6 LITERS

main85330-22070i197708-197710

5.0 LITERS

main85330-22071i197710-197711

5.0 LITERS

main85330-22072i197711-197808

5.0 LITERS

main85330-22074i197808-197908

5.0 LITERS

main85330-22080i197908-198008

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i197708-197908

main90099-32103i197808-198008

5.0 LITERS

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010i197708-198008

85345NOZZLE, WINDSHIELD WASHER

main85341-22090i197708-197710

RH.

main85341-22100i197710-197908

1.6 LITERS LH.

main85341-22110i197710-198008

5.0 LITERS RH.

main85341-22120i197710-198008

5.0 LITERS LH.

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011i197708-197710

main85348-22010i197710-198008

5.0 LITERS

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-22110i197708-197908

5.0 LITERS

85361HOLDER, WINDSHIELD WASHER

main85361-22100×2i197708-197908

5.0 LITERS REAR SIDE

main85361-22120i197708-197908

5.0 LITERSLOWER SIDE

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33313i197710-197908

1.6 LITERS L=2000

main90099-33332i197908-198008

L=1000

main90099-33334i197710-197808

5.0 LITERS L=2000

main90446-06012i197808-197908

5.0 LITERS L=1900

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33314i197708-197710

L=1000(*H,L=140)

main90099-33328i197710-197912

L=2000(*H,L=140),5.0 LITERS

main90099-33330i197710-197912

L=2000(*H,L=400),5.0 LITERS

main90099-33332i197912-198008

L=2000(*H,L=140)

main90446-06286i197710-197908

L=1000(*H,L=400),1.6 LITERS

9015950025

main90159-50025

9017906115

main90179-06115

9046304566

main90463-04566

9046306038

main90463-06038

9048012002

main90480-12002

9048012449

main90480-12449

9165540820

main91655-40820

19 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CRESSIDA

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CRESSIDA. Key components include: RADIATOR & WATER OUTLET, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
