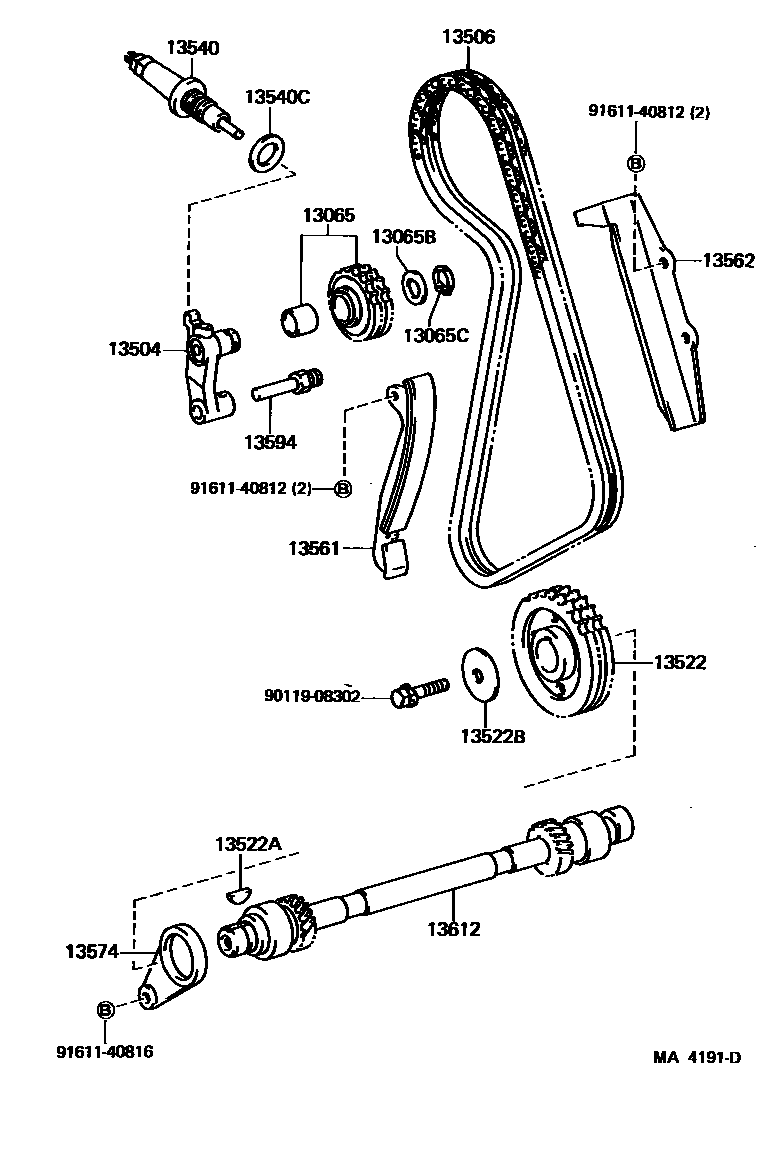

Toyota CRESSIDA — TIMING CHAIN
13065GEAR SUB-ASSY, TENSION
13065BWASHER, TIMING CHAIN TENSION GEAR CLAW
13065CRING, SHAFT SNAP(FOR TENSION GEAR)
13504ARM SUB-ASSY, TENSION
13506CHAIN SUB-ASSY
13522GEAR, PUMP DRIVE SHAFT
N=30
13522AKEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
13522BWASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13574PLATE, PUMP DRIVE SHAFT
13594SHAFT, TENSION GEAR ARM
13612SHAFT, PUMP DRIVE
9011908302
main90119-08302
9161140812
main91611-40812
9161140816
main91611-40816
18 parts on this diagram · 1 diagram in section
TIMING CHAIN for Toyota CRESSIDA
This section contains 18 genuine Toyota parts for the TIMING CHAIN system of the Toyota CRESSIDA. Key components include: GEAR SUB-ASSY, TENSION, WASHER, TIMING CHAIN TENSION GEAR CLAW, RING, SHAFT SNAP(FOR TENSION GEAR), ARM SUB-ASSY, TENSION, CHAIN SUB-ASSY.
