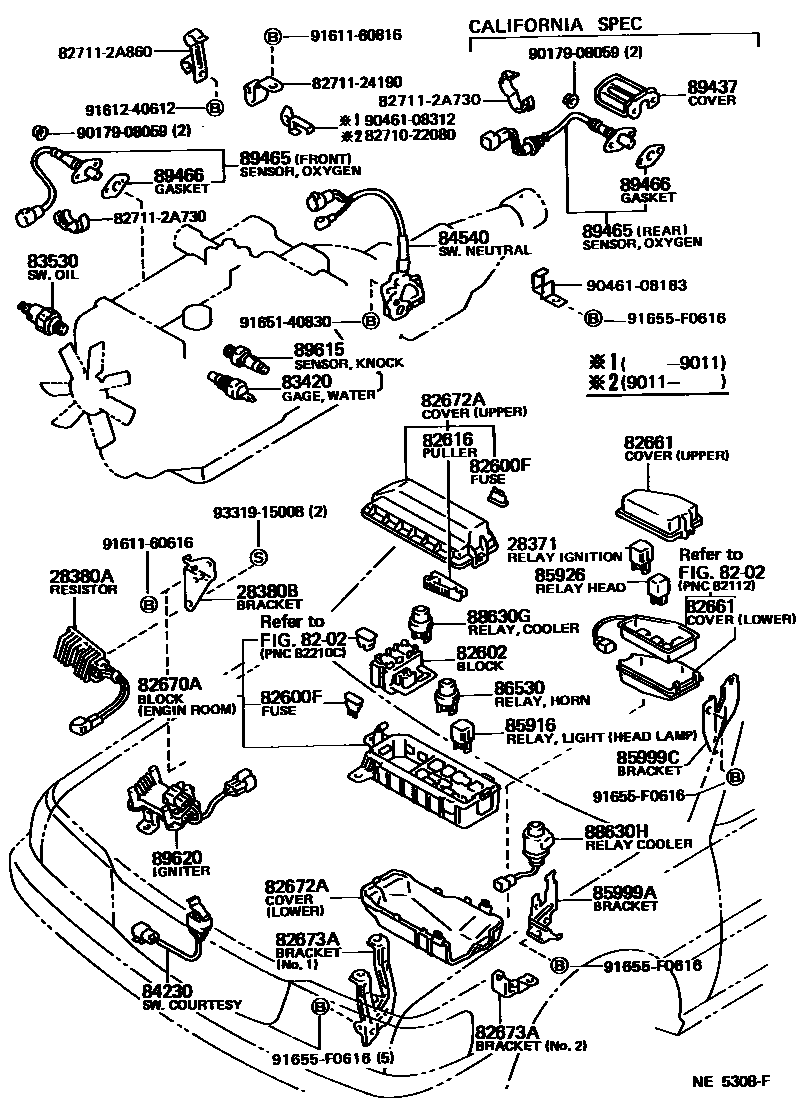

Toyota CRESSIDA — SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
28380ARESISTER, FUEL PUMP
28380BBRACKET, FUEL PUMP RESISTER
8202
82600FFUSE, FUSE BLOCK
10A
15A,E/G ROOM J/B
20A,YELLOW,E/G ROOM J/B
7.5A,COWL SIDE
82602BLOCK SUB-ASSY, RELAY
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
UPPER
LOWER
82670ABLOCK ASSY, JUNCTION, NO.1
ENGINE ROOM
NO.1
ENGINE ROOM
NO.1
82672ACOVER, JUNCTION BLOCK
LOWER
UPPER
UPPER
82673ABRACKET, JUNCTION BLOCK, NO.1
NO.1
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-30051
84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)
85916RELAY, LIGHT CONTROL
MARUKO,TAIL LAMP
*ND,TAIL LAMP
HEADLAMP
85926RELAY, HEADLAMP DIMMER
85999ABRACKET, RELAY, NO.2
85999CBRACKET, RELAY, NO.3
86530RELAY ASSY, HORN
MARUKO
NIPPONDENSO
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
89465SENSOR, OXYGEN
CALIFORNIA SPEC,REAR
CALIFORNIA SPEC,REAR
CALIFORNIA SPEC,FRONT
CALIFORNIA SPEC,FRONT
89466GASKET, OXYGEN SENSOR
CALIFORNIA SPEC
CALIFORNIA SPEC
8271022080HARNESS ASSY, OIL HEATER
main82710-22080
8271124190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24190
827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A730
827112A860WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A860
9017908059
main90179-08059
9046108183
main90461-08183
9046108312
main90461-08312
9161160616
main91611-60616
9161160816
main91611-60816
9161240612
main91612-40612
9165140830
main91651-40830
91655F0616
main91655-F0616
9331915008
main93319-15008
40 parts on this diagram · 6 diagrams in section
