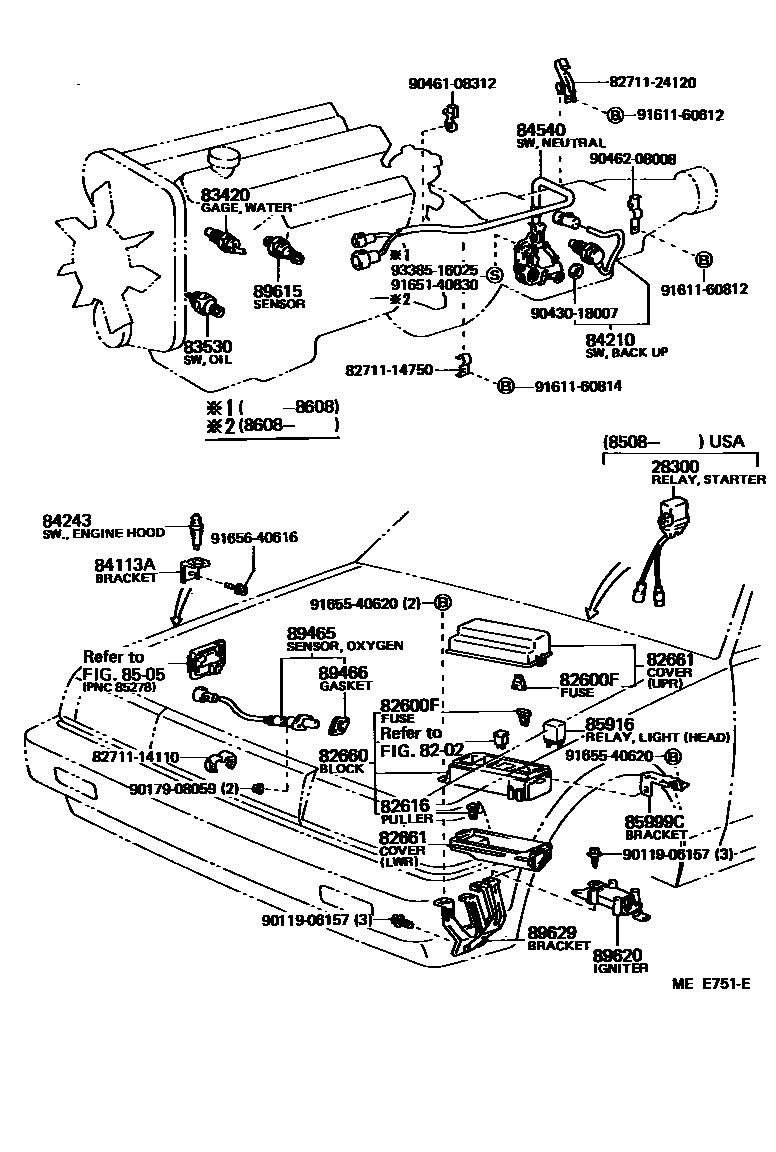

Toyota CRESSIDA — SWITCH & RELAY & COMPUTER
28300RELAY ASSY, STARTER
8202
82600FFUSE, FUSE BLOCK
10A,10A
15A,15A
20A,YELLOW,20A
7.5A,7.5A
82616PULLER, FUSE
82660BLOCK ASSY, RELAY, ENGINE ROOM
sub82660-22270
82661COVER, RELAY BLOCK, NO.1
UPR
UPR
LWR
LWR
UPR,W/CD PLAYER
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-30080
84113ABRACKET, SWITCH, NO.1
84210SWITCH ASSY, BACK-UP LAMP
84243SWITCH, ENGINE HOOD
sub84243-52010
8505
85916RELAY, LIGHT CONTROL
TAIL,MARUKO
TAIL,DENSO
HEAD
85999BRACKET, COMBINATION RELAY
89465SENSOR, OXYGEN
sub89465-29076
89466GASKET, OXYGEN SENSOR
sub89466-20020
89615SENSOR, KNOCK CONTROL
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14750
8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24120
9011906157
main90119-06157
9017908059
main90179-08059
9043018007
main90430-18007
9046108312
main90461-08312
9046208008
main90462-08008
9161160612
main91611-60612
9161160812
main91611-60812
9165140830
main91651-40830
9165540620
main91655-40620
9165640616
main91656-40616
9181160814
main91811-60814
9338516025
main93385-16025
36 parts on this diagram · 5 diagrams in section
